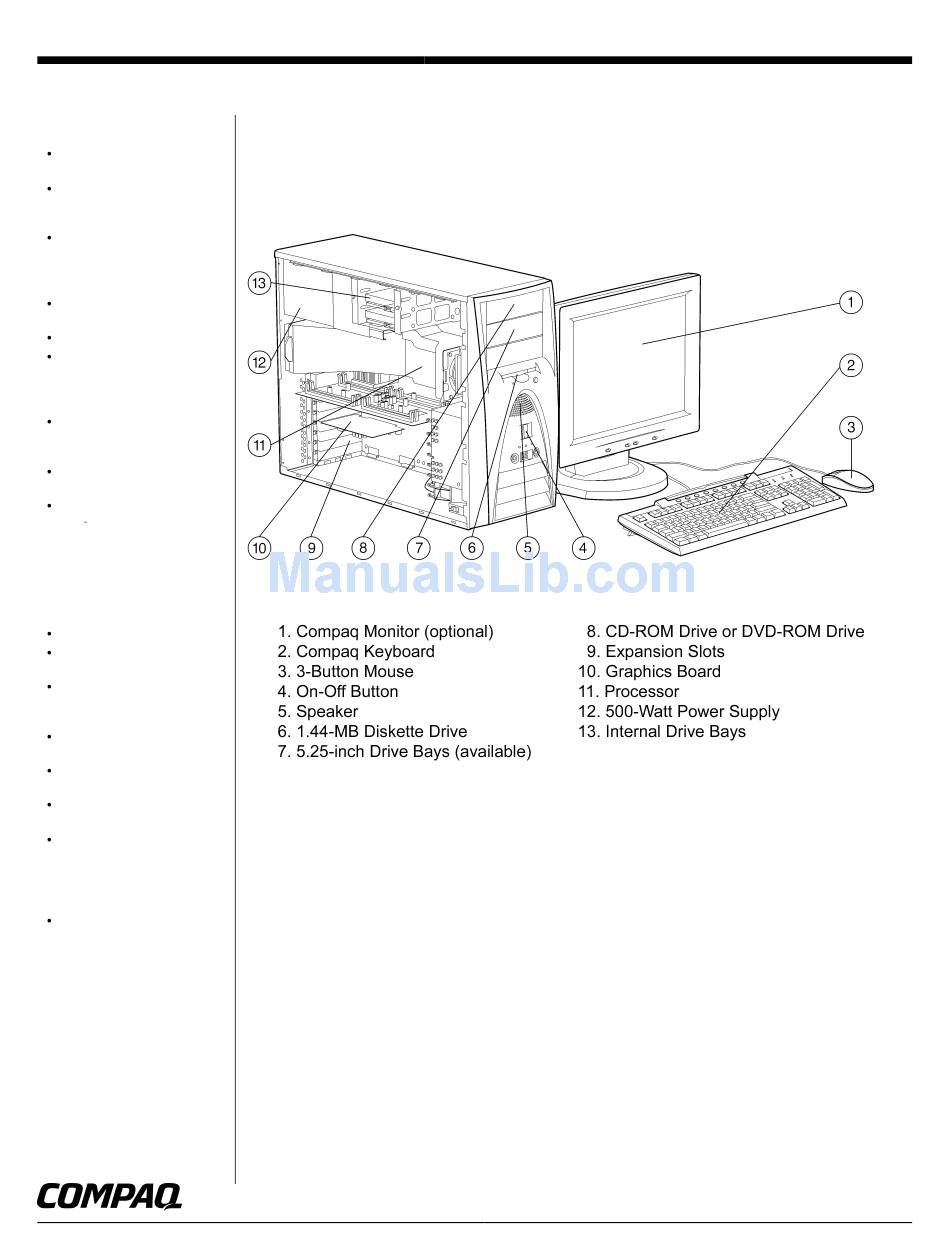

QuickSpecs
Overview
A t A G l a n c e
Minitower form factor for
increased expandability
Supports up to two Intel
Xeon
®
®
processors, up to 2.2-GHz
(depending on the model)
Intel 860 chipset with 400-MHz
front side bus, dual memory
channels, dual-peer PCI buses,
and 64-bit/66-MHz PCI
256-KB or 512-KB L2 cache
integrated on processor
ECC RDRAM expandable to 4-GB
High-performance Ultra160 SCSI
10,000 rpm or 15,000 rpm hard
drives or UATA/100 7200 RPM
hard drives
Integrated dual channel Ultra160
SCSI and Ultra ATA/100
controllers
Up to 360GB of high-performance
internal storage
Choice of 3Dlabs Wildcat™ II
5110, ATI Fire GL2, ATI Fire GL4,
NVIDIA
Quadro2 EX, NVIDIA
®
Quadro2 MXR, NVIDIA Quadro2
Pro, Matrox
Millennium
G450
®
®
dual, Matrox Millennium G550 or
Matrox Millennium G200 Quad
MMS graphics controllers
Multiple display support
Integrated Intel PRO/100+
Management Adapter
Seven total slots (two 64-bit/66-
MHz PCI, four 32-bit/33-MHz PCI,
one AGP Pro 4X)
Seven bays (four internal and
three external)
CD-ROM, DVD-ROM, or CD-RW
drive (depending on model)
SoundBlaster 128 Audio with
support for digital output
Windows
XP
Professional,
®
®
Windows 2000
Professional, or
®
Windows NT
Workstation 4. 0
®
and Compaq support software
pre-installed
Protected by Compaq Services,
including a three-year, limited
warranty — certain restrictions and
exclusions apply. Consult the
Compaq Customer Support
Center for details. Three-year
onsite and labor not available in all
countries.
DA-10847
World Wide — Version 19 — March 18, 2002
Compaq Evo Workstation W8000
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EVO WORKSTATION W8000 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Compaq EVO WORKSTATION W8000

Summary of Contents for Compaq EVO WORKSTATION W8000

  • Page 1 — certain restrictions and exclusions apply. Consult the Compaq Customer Support Center for details. Three-year onsite and labor not available in all countries. DA-10847 World Wide — Version 19 — March 18, 2002 Compaq Evo Workstation W8000...
  • Page 2 M o d e l s Available in multiple configurations. Not all configurations available in all countries. Check with your Authorized Compaq Reseller or Compaq. P r o c e s s o r Intel Xeon processor 1.7 GHz, 256-KB cache One of the following: Intel Xeon processor 1.8 GHz, 512-KB cache...
  • Page 3 If opening the system is required, color-coded LEDs on the system board help to quickly identify the problem. Protected by Compaq Services including a three-year, limited warranty with three-year parts coverage, three year, S e r v i c e a n d S u p p o r t on-site service, and three-year labor;...
  • Page 4 Optical Drive Hard Drive Graphics Audio DA-10847 World Wide — Version 19 — March 18, 2002 Compaq Evo Workstation W8000 Intel Xeon Processor 2.0GHz 256-KB integrated L2 512-MB 800-MHz ECC RDRAM 16X/40X DVD-ROM Drive 18.2-GB Ultra160 SCSI 15,000 rpm Choice of graphics option:...
  • Page 5 Line-Out (analog/SPDIF digital) RJ-45 Network Connector DA-10847 World Wide — Version 19 — March 18, 2002 Compaq Evo Workstation W8000 4 GB of 800-MHz ECC RDRAM 7, up to 6 available 2, 2 available 4, up to 4 available depending on model 1, up to 1 available depending on model 1.44 MB...
  • Page 6 7 x 24 hardware technical phone support and on-line support through the Internet; Pre-Failure Warranty coverage of hard drives, memory, and processors. Note: Certain restrictions and exclusions apply. Consult the Compaq Customer Support Center for details. Three- DA-10847 World Wide —...

  • Page 7: Diskette Drives

    P920 CRT Color Monitor (19-inch, Carbon/Silver) P720 CRT Color Monitor (17-inch, Carbon/Silver Two Tone) V720 CRT Color Monitor (17-inch, Carbon/Silver Two Tone) Note: AssetControl monitor. AssetControl features are accessible with Compaq Graphics Matrox G200 Quad Multi-monitor Series with cables for analog output (32MB) (PCI)

  • Page 8: Storage Controllers

    Communications Intel Pro/100+ Management Adapter w/IP Security (Single Pack) Intel Pro/100+ Management Adapter w/IP Security (20 Pack) Compaq NC3123 Fast Ethernet NIC PCI 10/100 WoL Compaq NC3134: 64 PCI, Dual Base 10/100 WoL Compaq NC6134: Gbit NIC 64 PCI 1000SX...
  • Page 9 Options Uninterruptible Power Systems Compaq Tower UPS Model T2000 (low voltage) Compaq Tower UPS Model T2400h (high voltage, not available in North America) Compaq Tower UPS Model T1500 (low voltage) Compaq Tower UPS Model T1500h (high voltage, not available in North America)
  • Page 10 Optional 2048 MB Maximum 4096 MB 512 MB Following are memory options available from Compaq: 512-MB Memory Kit (RDRAM RIMM, 800MHz) 256-MB Memory Kit (RDRAM RIMM, 800 MHz) 128-MB Memory Kit (RDRAM RIMM, 800 MHz) DA-10847 World Wide — Version 19 — March 18, 2002...
  • Page 11 Optional 2048 MB 512 MB Maximum 4096 MB Following are memory options available from Compaq: 512-MB Memory Kit (RDRAM RIMM, 800MHz) 256-MB Memory Kit (RDRAM RIMM, 800 MHz) 128-MB Memory Kit (RDRAM RIMM, 800 MHz) DA-10847 World Wide — Version 19 — March 18, 2002...
  • Page 12 Optional 2048 MB Maximum 4096 MB 512 MB Following are memory options available from Compaq: 512-MB Memory Kit (RDRAM RIMM, 800MHz 256-MB Memory Kit (RDRAM RIMM, 800 MHz) 128-MB Memory Kit (RDRAM RIMM, 800 MHz) DA-10847 World Wide — Version 19 — March 18, 2002...
  • Page 13 80-GB 7200 rpm 120-GB 7200 rpm Maximum Storage Capacity 360 GB (assumes two removable media drives installed) Internal DA-10847 World Wide — Version 19 — March 18, 2002 Compaq Evo Workstation W8000 Position Supported Controller Integrated 4,5,6 Integrated EIDE 4,5,6...

  • Page 14: System Unit

    Power Supply Temperature (Values are subject to Humidity (non-condensing) (Values are subject to Maximum Altitude (nonpressurized) Compaq Easy Access Keyboard Dimensions (H x W x D) Weight Electrical Mechanical Environmental DA-10847 World Wide — Version 19 — March 18, 2002 Compaq Evo Workstation W8000 17.75 x 8.05 x 23.75 in/45.1 x 20.5 x 60.3 cm...

  • Page 15: Mb Diskette Drive

    Cylinders (high/low) Read/Write Heads Compaq 3-Button Mouse Dimensions/Weight Environmental Mechanical Regulatory Approvals DA-10847 World Wide — Version 19 — March 18, 2002 Compaq Evo Workstation W8000 3.5 in Green 1.44 MB/720 KB One-third 300 rpm 500/250 Kb/s 18/9 80/80 3/6 ms...

  • Page 16: Hard Drives

    36.4 GB 232916-B22 Height 36.4 GB 250022-B21 Height 18.2 GB 191188-B21 Height DA-10847 World Wide — Version 19 — March 18, 2002 Compaq Evo Workstation W8000 72,000 MB Capacity 1.6 in/40.64 mm 3.5 in/88.9 mm Width Ultra160 SCSI Interface Synchronous Transfer Rate...

  • Page 17: Ultra Ata Hard Drives

    Ultra ATA Hard Drives 120 GB 250021-B21 80 GB 250020-B21 60 GB 230253-B21 DA-10847 World Wide — Version 19 — March 18, 2002 Compaq Evo Workstation W8000 18,209 MB Capacity 1 in/25.4 mm Height 3.5 in/88.9 mm Width Ultra160 SCSI Interface...
  • Page 18 201066-B21 20 GB 176272-B21 (outside EMEA) 176275-B21 (EMEA only) DA-10847 World Wide — Version 19 — March 18, 2002 Compaq Evo Workstation W8000 40,000 MB Capacity 1 in/25.4 mm Height 3.5 in/88.9 mm Width Ultra ATA Interface Synchronous Transfer Rate 66.6 MB/s...
  • Page 19 Stop Time Operating Conditions Temperature Dimensions DA-10847 World Wide — Version 19 — March 18, 2002 Compaq Evo Workstation W8000 CD-ROM (Mode 1 and 2), CD-R/W, 18.0 ms (21.1 ms quiet seek) CD-R Photo CD (Single and Multi-session), Mixed Mode (Audio and Data combined),...
  • Page 20 Disk Formats Read Disk Formats Written Disk DA-10847 World Wide — Version 19 — March 18, 2002 Compaq Evo Workstation W8000 Ultra DMA 33 Sustained DVD = 8.1 MB/s to 21.6 MB/s CD-ROM = 2.55 KB/s to- 6.00 KB/s DVD: CAV -Constant Angular Velocity...

  • Page 21: Operating Conditions

    Control) Minimum CPU Supported Mounting Orientation Kit Contents DA-10847 World Wide — Version 19 — March 18, 2002 Compaq Evo Workstation W8000 Line Out 0.7 0.1 Vrms Headphones 0.45 0.2 Vrms Temperature 41 to 113 F/5 to 45 C Humidity...
  • Page 22 Operating and storage conditions Kit contents Operating system support DA-10847 World Wide — Version 19 — March 18, 2002 Compaq Evo Workstation W8000 Internal mounting DVD-RAM 4.7 GB (per-side capacity) and 2.6 GB (per-side capacity) DVD-RAM (read) 2,770 Kbps (4.7 GB) 1,385 Kbps (2.6 GB)
  • Page 23 Rating Speaker Connectors Operating System Driver Support DA-10847 World Wide — Version 19 — March 18, 2002 Compaq Evo Workstation W8000 20-bit Stereo Full-Duplex (CD Quality) Variable 4 kHz to 48 kHz ESPCM and ADPCM compression Microphone-in 40 mVolts Line-in 1.0 Volts...

  • Page 24: Intel Pro/100+ Management Adapter

    Operating Temperature Operating Humidity (non-condensing) Operating Altitude Communication Processor OS Driver Support DA-10847 World Wide — Version 19 — March 18, 2002 Compaq Evo Workstation W8000 10Base-T or 100Base-TX PCI 2.2 10Base-T (Half-Duplex) 10 Mb/s 10Base-T (Full-Duplex) 20 Mb/s 100Base-TX (Half-Duplex)
  • Page 25 1920 x 1080 1920 x 1200 1920 x 1200 DA-10847 World Wide — Version 19 — March 18, 2002 Compaq Evo Workstation W8000 Integrated Quadro2 Pro 2D/3D 128-bit graphics processor unit (GPU) Integrated into the Quadro2 Pro GPU AGP 4X 350 MHz...
  • Page 26 3D Features DualHead Display Features DA-10847 World Wide — Version 19 — March 18, 2002 Compaq Evo Workstation W8000 AGP 1X, 2X, 4X: PCI rev 2.2 bus specification AGP: 32 MB / PCI: 16 MB 360 MHz (secondary DAC: 200 MHz)

  • Page 27: Graphics Controllers

    1280 x 960 1280 x 1024 1600 x 1200 DA-10847 World Wide — Version 19 — March 18, 2002 Compaq Evo Workstation W8000 Color Depths (bpp) Refresh Rates 8, 16, 24, 32 60 Hz, 72 Hz, 75 Hz, 85 Hz...

  • Page 28: Graphics Controller

    Optional software bundles (not included) DA-10847 World Wide — Version 19 — March 18, 2002 Compaq Evo Workstation W8000 Low profile (LP) board with ATX bracket attached (kit also includes a Small Form Factor (SFF) bracket AGP 4X, AGP 2X, and AGP 1X 32-MB, high-speed DDR 360-MHz RAMDAC;...

  • Page 29: Resolutions Supported

    1600 x 1200 DA-10847 World Wide — Version 19 — March 18, 2002 Compaq Evo Workstation W8000 VGA monitor/analog flat panel + VGA monitor/analog flat panel VGA monitor/analog flat panel + television Digital flat panel + VGA monitor/analog flat panel Digital flat panel + television DualHead Multi-Display support;...
  • Page 30 Direct3D Support Engine Acceleration Output Other OS Support DA-10847 World Wide — Version 19 — March 18, 2002 Compaq Evo Workstation W8000 4.5x8 in/11.43x20.32 cm Resolution Vertical 640 x 480 60 to 200 Hz 800 x 600 60 to 200 Hz...
  • Page 31 Maximum Pixel Clock Multi-display support Operating Systems DA-10847 World Wide — Version 19 — March 18, 2002 Compaq Evo Workstation W8000 Approximately 6.5 x 3.8 x 0.6 in/16.51 x 9.65 x 1.52 cm Maximum Colors Maximum Refresh Rate Supported 16.7 M 240 Hz 16.7 M...
  • Page 32 Maximum Vertical Refresh Rate Maximum Pixel Clock Multi-display support Operating Systems Note: All drivers and enhanced software, including ELSA POWERdraft, , can be found on the Compaq web site at: DA-10847 World Wide — Version 19 — March 18, 2002 Maximum Colors Supported 16.7 M...
  • Page 33 Multi-display support Operating Systems DA-10847 World Wide — Version 19 — March 18, 2002 Compaq Evo Workstation W8000 Approximately 13.5 x 3.8 x 1.5 in/ 34.29 x 9.65 x 3.81 cm 96 bits per pixel 128 bits per pixel 1920 x 1440 @75 Hz 1920 x 1440 @75 Hz 1920 x 1440 @75 Hz 1920 x 1440 @75 Hz...
  • Page 34 Maximum Vertical Refresh Rate Maximum Pixel Clock Operating Systems Note: All drivers can be found on the Compaq web site at: DA-10847 World Wide — Version 19 — March 18, 2002 Approximately 6.5 x 3.8 x 0.6 in/16.51 x 9.65 x 1.52 cm...
  • Page 35 800 x 600 640 x 480 DA-10847 World Wide — Version 19 — March 18, 2002 Compaq Evo Workstation W8000 10.2 x 4.3 inches (26.0 x 10.8 cm) ATI Fire GL4 3-D and 2-D Graphics Accelerator Standard VGA on board...
  • Page 36 Compaq shall not be liable for technical or editorial errors or omissions contained herein. The information is provided “as is” without warranty of any kind and is subject to change without notice. The warranties for Compaq products are set forth in the express limited warranty statements accompanying such products. Nothing herein should be construed as constituting an additional warranty.
