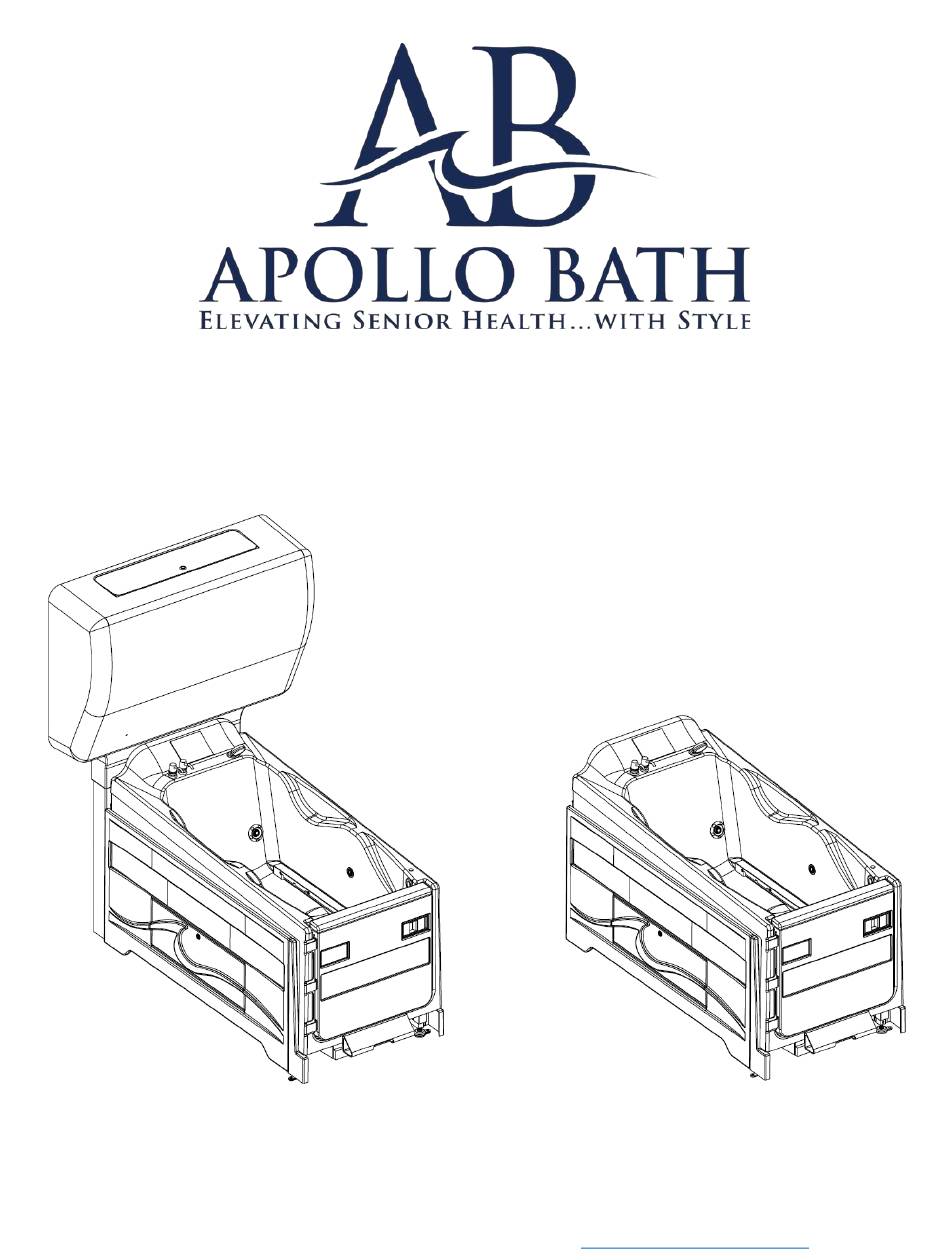

- Page 1 Solares Smart Spa Specifications/Installation (Manual Part Number 990130) With Rapid Fill Option Without Rapid Fill Option 450 Main Street, Somerset WI 54025 Phone: 715.247.5625 | Fax: 715.247.3424 | Website: http://www.apollobath.com...
- Page 2 Solares Smart Spa Installation Manual Important Installation Highlights Failure To Comply With These Items Will Greatly Compromise The Functionality Of The Bathing Unit And May Void The Warranty. • The bathing system is to be installed AFTER all construction and finish work is completed.
- Page 3 Solares Smart Spa Installation Manual Plumbing and Electrical Codes All states and municipalities may differ extensively in their plumbing and electrical codes. Therefore, it is Apollo Corporation’s recommendation that you check with the proper enforcement agencies in your area before installation. All Apollo bathing systems are manufactured with built-in backflow prevention.
- Page 4 Solares Smart Spa Installation Manual Apollo Solares Smart Spa Specifications Without Rapid Fill With Rapid Fill Recommended Room Size: 70 in (177.8 cm) wide, 128 in (320.0 cm) long 70 in (177.8 cm) wide, 134 in (340.4 cm) long Dimensions: Length Width Height...
-
Page 5: Symbol Definitions
Solares Smart Spa Installation Manual Symbol Definitions Acceptable storage temperature range. Acceptable storage humidity range. Consult accompanying documents Protective Earth AC and DC Current CD0037 1121... - Page 6 Solares Smart Spa Installation Manual Bathing Room Preparation !WARNING! -Choose flattest possible floor location. Floor must not slope more than ¼ in (6.35 mm) per 12 in (304.8 mm) for Secure Glide Transfer System to operate correctly. -Use of this equipment adjacent to or stacked with other equipment should be avoided because it could result in improper operation.
- Page 7 Solares Smart Spa Installation Manual Bathing System Dimensions CD0037 1121...
- Page 8 Solares Smart Spa Installation Manual Electrical/Pluming Service Installation NOTE • Electrical outlet must be protected by a separate 15A GFCI breaker. • Most codes require electrical to be located above the water supply. • Minimum required water pressure is 30 PSI (2.1 Bar) for both hot and cold water supply.
- Page 9 Solares Smart Spa Installation Manual Electrical/Plumbing Service Installation, Cont. Bathing System WITHOUT Rapid Fill Option CD0037 1121...
- Page 10 Solares Smart Spa Installation Manual Tub Leveling • The bathing system has four leveling feet (or six for a system with Rapid Fill ) located at the corners of the frame. • Use an 11/16” wrench to adjust the leveling feet. Turn the nut clockwise to drop the foot down (raise the tub) and counterclockwise to lift the foot up (lower the tub).
- Page 11 Solares Smart Spa Installation Manual Tub Leveling, Cont. • The most important thing is that the tub is adjusted high enough off the floor for the transfer device frame to pass underneath and dock without making contact. If the rear wheels of the carrier fall into a valley, such as a floor drain, when docking it may be necessary to lower the frame below the nominal 3.3”...
- Page 12 Solares Smart Spa Installation Manual o Power on the tub. o Tap on “Bathing menu”, tap on “Tub Tilt”, and hold the up arrow until the tub stops raising. • It’s worth noting that leveling is for drainage purposes. If the tub cannot be perfectly leveled due to an extreme slope in the floor it is acceptable to just get it as close to level as possible.
- Page 13 Solares Smart Spa Installation Manual Tub Drain Preparation and Connection Typical Drain Connections: • PVC hard plumbed connection. • Rubber flexible coupler connection. • Drain terminates into floor sink. Note: Drain line must not be located more than a ¼” off the floor for proper drainage. PVC Hard Plumbed Example CD0037 -13-...
- Page 14 Solares Smart Spa Installation Manual Rubber Flexible Coupler Example CD0037 -14- 1121...
- Page 15 Solares Smart Spa Installation Manual Floor Sink Example CD0037 -15- 1121...
- Page 16 Solares Smart Spa Installation Manual Remedy Bulb Installation • Remove UV bulbs from inside of tub. Note: Don’t touch the glass section of the bulbs with your fingers as the oil left behind will shorten the life of the bulb. •...
- Page 17 Solares Smart Spa Installation Manual Side Panel Trim Removal Instructions 1. Ensure tub is raised up to highest position. 2. Remove side panel by opening access panels and removing thumb screw located towards back side of cutout. 3. Remove screws securing lower part of frame (Detail B) and let front of frame rotate downward.
