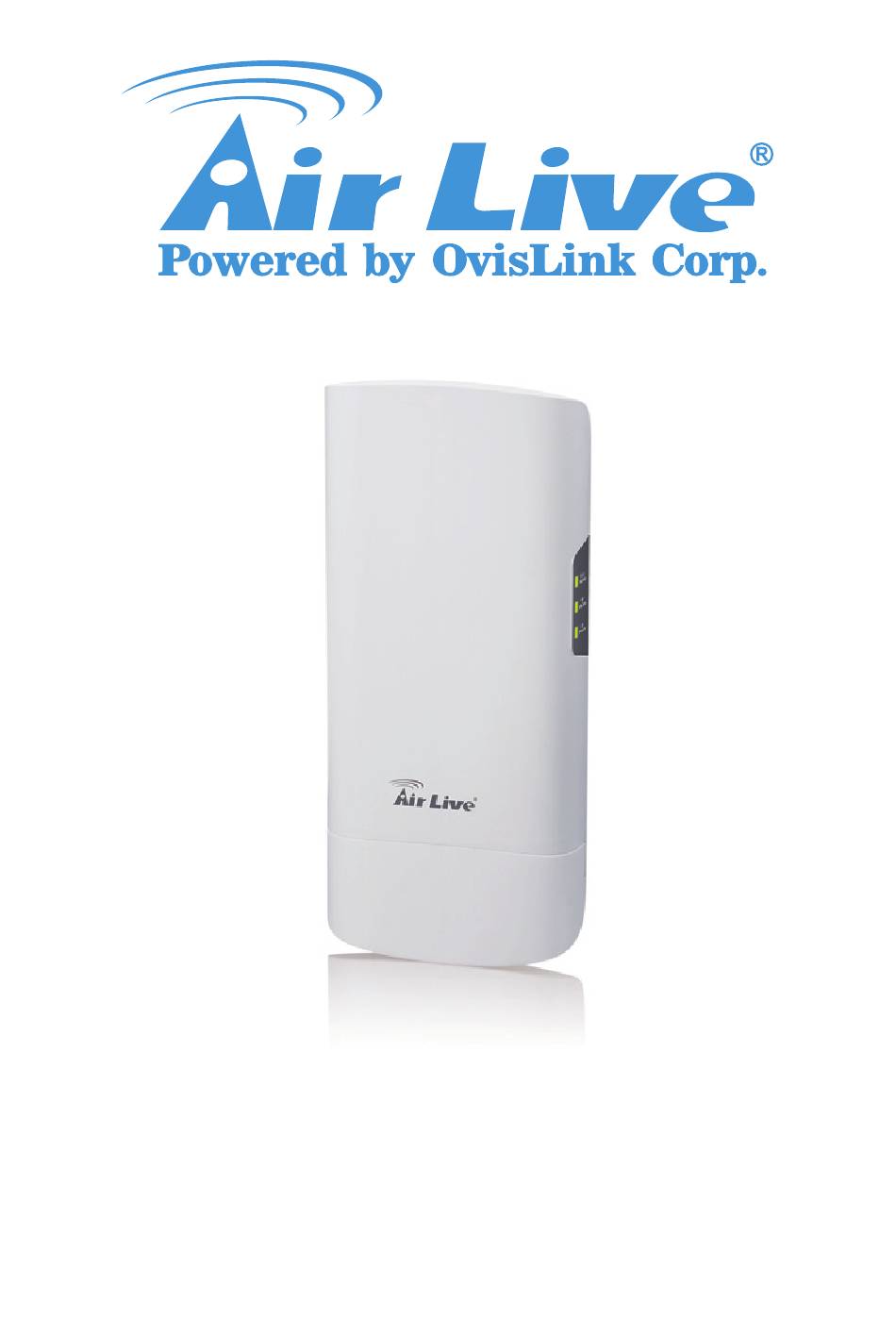

- Page 1 AirMax4GW Ai M LTE Outdoor CPE with WiFi Quick Installation Guide...
- Page 2 QR code here. Please consult with the FAQs <http://www.airlive.com/pro duct/airmax4gw/faq> before writing to OvisLink Tech Support Team for further assistance For any other question, please read the user manual in the CD or mail to tech@airlive.com...
- Page 3 AirMax4W Package Contents Please check the package contents and contact your distributor if any part is missing. AirMax4GW Mounting Kit 12V Passive PoE DC Injector Included Note: This device uses 12V passive PoE. It is not compatible with 802.3af or 802.3at PoE switch.
- Page 4 I/O Interface 3G/4G WLAN Power LED Indicators connector SIMA Slot SIMB Slot for cellular antenna SMA connector for cellular antenna Reset Button Auto MDI/MDIX RJ45 Port, POE Input 1x LAN to connect local devices...
-
Page 5: Insert The Sim Card
Insert the SIM card Important: Please insert SIM card when Power is off Step 1: Unscrew the buttom of Cover and Remote it... - Page 6 Insert the SIM card Important: Please insert SIM card when Power is off Step 2: Unlock the SIM socket...
- Page 7 Insert the SIM card Important: Please insert SIM card when Power is off Step 3: Place SIM Card Properly...
- Page 8 Insert the SIM card Important: Please insert SIM card when Power is off Step 4: Put Back SIM Socket...
- Page 9 Power Up AirMax4GW Step 1: Insert Cat 5e. RJ45 cable into LAN Port...
- Page 10 Power Up AirMax4GW Step 2: Put back the cover and fasten the screw...
- Page 11 Power Up AirMax4GW Step 3: Connect another side of RJ45 to PoE switch/ PoE injector RJ-45 Port 1 PoE Switch...
- Page 12 Mounting the AirMax4GW AirMax4GW can be wall mounted or pole mounted. Please follow below pictures to mount to devices Wall Mount Metal Ring Bracket Pole Mounting...
-
Page 13: Default Value
Connect to AirMax4GW After AirMax4GW is powered on. You can connect to SSID "airlive". AirMax4GW will provide IP to your computer. You donot need to set the IP manually. Default Value Default IP: 192.168.123.254 Password: airlive DHCP: ON... - Page 14 Get into AirMax4GW Webpage Open the broswer and type the 192.168.123.254 Then AirMax4GW Web Interface will display. 192.168.123.254...
