Summary of Contents for Chipset Communication USB-EX1HBT

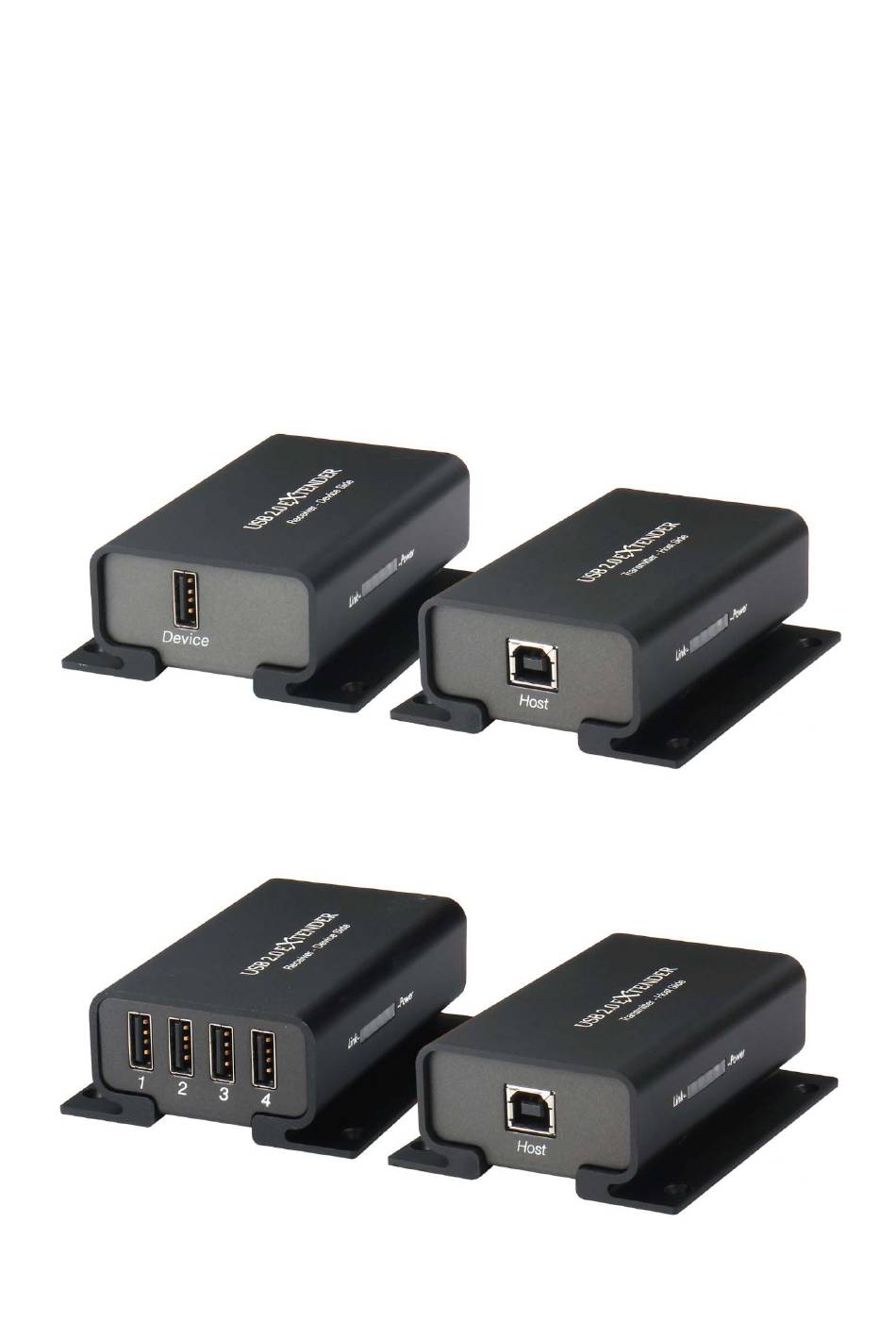

- Page 1 USB 2.0 Extender User Manual USB-EX1HBT / USB-EX4HBT USB-EX1HBT USB-EX4HBT...
-
Page 2: Specifications
Compatible with major computer OS such as Windows 2000 / XP / Vista / 7 / 8 / 8.1 / 10 / Mac OS, Linux or higher Splendid and cambered shape’s Aluminum enclosure and wall mountable 3. Specifications USB-EX1HBT Model No. Transmitter Receiver Chip... -
Page 3: Package Contents
4. Package Contents Transmitter Receiver 5VDC Power adapter USB 2.0 AM/BM Cable 0.6m Screws 5. Physical Diagram 5.1 Transmitter (Local Unit) Front view Host port (USB B female) Side view Power LED (Red) Link LED (Orange) Rear view Link port (RJ-45) - Page 4 5.2 Receiver (Remote Unit) Front view Power port (DC5V) Link port (RJ-45) Side view Link LED (Orange) Power LED (Red) Rear view Device port (USB A female) USB-EX1HBT Receiver USB-EX4HBT Receiver...
- Page 5 6. Connecting 6.1 Typical Application USB AM/BM Cable Transmitter AC Power Adapter Cat.5e/6 Cable 100m Receiver USB Devices...
- Page 6 6.2 Installing the Transmitter & Receiver 6.2.1. Preparing for Installation Follow these steps to prepare your site: 1. Determine where the host computer will be located and set up the computer. 2. Determine where you want to locate the remote USB device(s). 3.
-
Page 7: Category Cable Wiring
7. Category cable wiring Take precaution selecting the Cat.5e wires before connecting; use a cable tester to check the wires are correctly terminated. (Incorrect Termination may cause damage to the receiver unit). Recommend to use T568B wiring as shown below 8. -
Page 8: Regulatory Compliance
Regulatory Compliance Disclaimer Information in this document is subject to change without notice. The manufacturer does not make any representations or warranties (implied or otherwise) regarding the accuracy and completeness of this document and shall in no event be liable for any loss of profit or any other commercial damage, including but not limited to special, incidental, consequential, or other damages.
