USB Cable Length 0.6m ( USB A/M to B/M ) Power Supply 5VDC 1A Housing Aluminum Dimension ( L x W x H ) 90 x 73 x 31mm USB-SE1H Model No. Transmitter Receiver Chip ICRON Upstream / Input USB B Female...

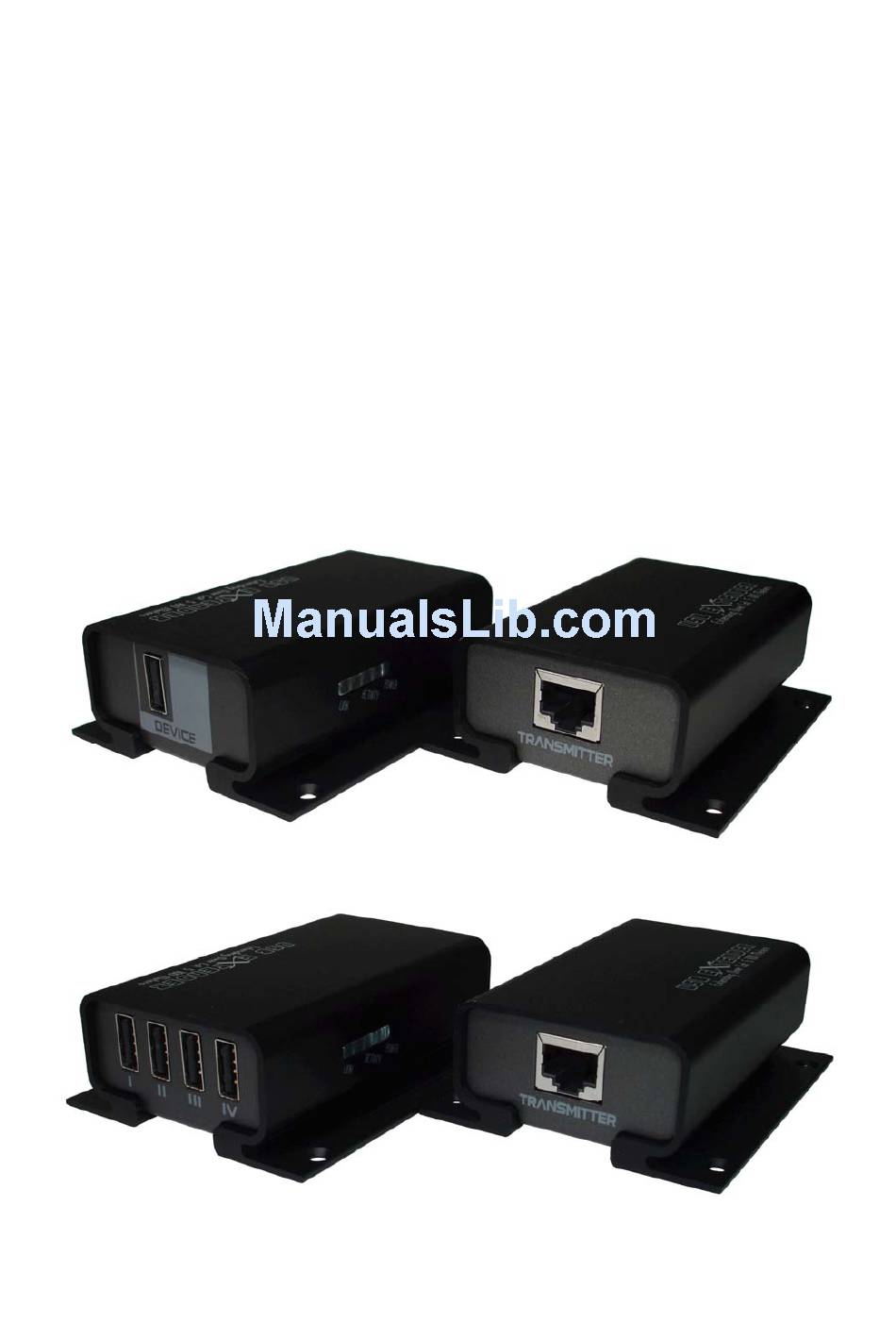

4. Package Contents Transmitter Receiver 5VDC Power adapter x 2 USB 2.0 AM/BM Cable 0.6m 5. Physical Diagram 5.1 Transmitter (Local Unit) Link port (RJ-45) Front view Side view Link LED (Orange) Power LED (Red) Activity LED (Green) Rear view Power port (DC5V) Host port (USB B female) 5.2 Receiver (Remote Unit)
Side view Power LED (Red) Link LED (Orange) Activity LED (Green) Rear view Device port (USB A female) USB-SE1A Receiver USB-SE1H Receiver 6. Connecting 6.1 Typical Application USB AM/BM Cable USB-SE1H Transmitter Cat. 5 Cable 100m USB-SE1H Receiver USB Cable...
6.2 Installing the Transmitter & Receiver 6.2.1. Preparing for Installation Follow these steps to prepare your site: 1. Determine where the host computer will be located and set up the computer. 2. Determine where you want to locate the remote USB device(s). 3.
7. Category cable wiring Take precaution selecting the Cat. 5 wires before connecting; use a cable tester to check the wires are correctly terminated. (Incorrect Termination may cause damage to the receiver unit). Recommend to use T568B wiring as shown below 8.
Regulatory Compliance Disclaimer Information in this document is subject to change without notice. The manufacturer does not make any representations or warranties (implied or otherwise) regarding the accuracy and completeness of this document and shall in no event be liable for any loss of profit or any other commercial damage, including but not limited to special, incidental, consequential, or other damages.
