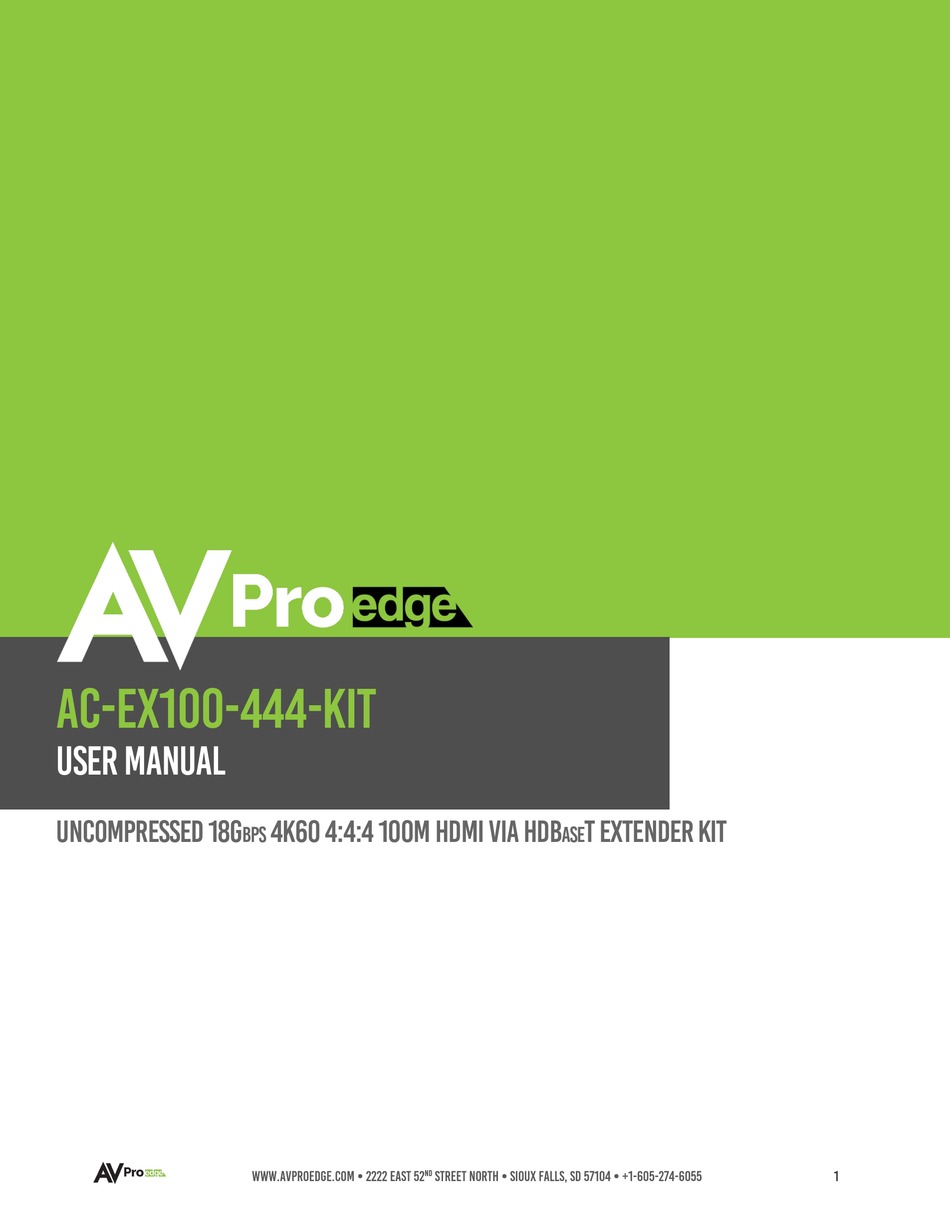

- Page 1 AC-EX100-444-KIT User Manual Uncompressed 18G 4K60 4:4:4 100M HDMI via HDB T Extender Kit WWW.AVPROEDGE.COM • 2222 EAST 52 STREET NORTH • SIOUX FALLS, SD 57104 • +1-605-274-6055...
-
Page 2: Table Of Contents
Contents Contents ..........................................2 Important Safety Instructions ................................... 4 Safety Classifications in this Document ............................4 Electrical Shock Prevention ................................. 4 Weight Injury Prevention ..................................4 Safety Statements ....................................5 Introduction ........................................6 Features ......................................... 6 Product Overview ......................................7 Box Contents ....................................... - Page 3 Support ..........................................21 Warranty ..........................................21 The Basics ........................................21 Coverage Details ....................................21 Red Tape ........................................21 Obtaining an RMA ....................................22 Shipping ........................................22 Limitation on Liability .................................... 22 Exclusive Remedy ....................................23 WWW.AVPROEDGE.COM • 2222 EAST 52 STREET NORTH •...
-
Page 4: Important Safety Instructions
Important Safety Instructions Before installing, configuring, and operating the devices and other vendor equipment, AVPro Edge strongly recommends that each dealer, integrator, installer, and all other necessary personnel access and read all the required technical documentation, which can be located by visiting AVProEdge.com. Read and understand all safety instructions, cautions, and warnings in this document and the labels on the equipment. -
Page 5: Safety Statements
Safety Statements Follow all of the safety instructions listed below and apply them accordingly. Additional safety information will be included where applicable. Read and keep these instructions. Heed and follow all warnings. Clean devices and equipment only with a dry cloth. Do not use the devices near water or expose them to rain and moisture. -
Page 6: Introduction
Introduction The AC-EX100-444-KIT is a pair of PoH (Power over HDBaseT) powered Transmitter (AC-EX100-444-T3) and Receiver (AC-EX100-444-R3) modules that extend uncompressed 4K HDMI signals at 18Gbps up to 70M (230 ft) over Category 6A cabling, along with the option to extend 4K signals up to 100M (328 ft) at 10.2 Gbps by using ICT Mode for installations limited in bandwidth. -
Page 7: Product Overview
Product Overview Box Contents (1x) AC-EX100-444-T3 (Transmitter) (1x) AC-EX100-444-R3 (Receiver) (1x) 48V Power Supply (2x) 3-Pin Terminal Block Connector for RS-232 Ports (1x) 3.5mm Mono IR Emitter (1x) 3.5mm Stereo IR Eye (4x) Mounting Brackets (8x) Mounting Screws Technical Specifications Video Video Resolutions Up to 4K 60Hz 4:4:4... - Page 8 Extracted Audio (Tx only, Rx is an audio input) TOSLINK IR Send (Tx and Rx) 3.5mm mono jack IR Receive (Tx and Rx) 3.5mm stereo jack RS-232 (Tx and Rx) 3-Pin Terminal Block Connector Power (Tx and Rx) 2-Pin Terminal Block Connector Ethernet (Tx and Rx) RJ45 Connector (10/100) Environmental...
-
Page 9: Transmitter Front And Rear Panel Overview
Transmitter Front and Rear Panel Overview AC-EX100-444-T3 (Transmitter) – Front Panel AC-EX100-444-T3 (Transmitter) – Rear Panel • Blue LED status indicator light HDMI SIGNAL ACTIVITY • Illuminates once an active signal is detected on the HDMI input • PRESS TO SELECT button toggles LED1 and LED2 audio settings AUDIO SETTINGS AUDIO SELECT AUDIO SELECT LED INDICATOR POSITION... - Page 10 • 8-pin RJ-45 female, 10/100 Ethernet connection port ETHERNET • Supports standard PoH (Power over HDBaseT) • 3-pin terminal block connector port RS-232 • Control port for serial RS-232 connection • 8-pin RJ-45 female connector port • Long-range HDBaseT extension for Category 6A connection HDBT OUT •...
-
Page 11: Receiver Front And Rear Panel Overview
Receiver Front and Rear Panel Overview AC-EX100-444-R3 (Receiver) – Front Panel AC-EX100-444-R3 (Receiver) – Rear Panel • Blue LED status indicator light HDMI SIGNAL ACTIVITY • Illuminates once an active signal is detected on the HDMI input • PRESS TO SELECT button toggles LED1 and LED2 audio settings AUDIO SETTINGS AUDIO SELECT AUDIO SELECT LED INDICATOR POSITION... - Page 12 • 3-pin terminal block connector port RS-232 • Control port for serial RS-232 connection • 8-pin RJ-45 female connector port • HDBaseT extension for Category 6A connection HDBT in • Power over HDBaseT (PoH), only one endpoint device requires local power •...
-
Page 13: Wiring And Connections
Wiring and Connections HDMI Cables The AC-EX100-444-KIT uses the standard 19-pin HDMI female connector port for the inputs and outputs. Ensure all HDMI cables and devices can support the signal being sent. For maximum Note: performance, a Premium High Speed HDMI cable rated for 18Gbps will be more than sufficient for signal transport if every device in the system can handle the signal. -
Page 14: Usb Ports
USB Ports The USB ports allow USB 2.0 extension (350 Mbps). Both the Transmitter and Receiver each have two USB 2.0 Type A ports and one USB 2.0 Type B port. Both the Transmitter and Receiver also have one USB Type C port. This is a courtesy port that is primarily intended for servicing by AVPro Edge Technicians in the event of troubleshooting. -
Page 15: Connecting The Devices
Connecting the Devices Connect the HDMI source device to the Transmitter’s HDMI IN port. Connect the HDMI output device to the Receiver’s HDMI OUT port. Connect a Category 6A cable between the HDBT OUT port on the Transmitter to the HDBT IN port on the Receiver. -
Page 16: Scaler Settings
Transmitter. ICT Mode Select The AC-EX100-444-KIT is designed for up to 18Gbps uncompressed video transport. If existing wiring infrastructure proves insufficient for passing 18Gbps, the ICT MODE SELECT toggle button can be used to enable ICT MODE to reduce the output bandwidth to 10.2 Gbps on the extenders. -
Page 17: Audio Extraction/Extension
Audio Extraction/Extension This feature extracts up to 8-channel audio from the source device and sends it to a separate amplifier or AVR. Both the Transmitter and Receiver have the AUDIO SELECT toggle button that is used in conjunction with LED1 and LED2 located on the front panel. Use this toggle button to select where the source of the audio is coming from. -
Page 18: Ethernet Extension
Ethernet Extension Ethernet usage is very straightforward, it is designed for driving network communication over the HDBaseT link. The purpose of these ports is to act as a “hub”, meaning if one port is plugged into a router then the other port on either the Transmitter or Receiver will have access to the network. Other examples of Ethernet usage include: •... -
Page 19: Hdbt Status Indicator Lights
HDBT Status Indicator Lights The HDBaseT ports feature status indicator LEDs on both the Transmitter and Receiver for showing active connections while troubleshooting. Left LED (Amber) – Status Indicates there is power present between the Transmitter and Receiver. Steady blinking amber indicates normal operations. -
Page 20: Troubleshooting
Troubleshooting • Verify Power – Check that the power supply is properly connected and is outputting 48V. • Verify Connections – Check that all cables are properly connected and/or terminated where applicable. • Verify Terminations – Ensure you are using a minimum of CAT 6A UTP or STP without breaks such as keystones, punch downs, or other interconnectors. -
Page 21: Support
Support Should you experience any problems using this product, first refer to the Troubleshooting section of this manual before contacting AVPro Technical Support. When calling in, the following information should be provided: • Product name and model number • Product serial number •... -
Page 22: Obtaining An Rma
Damaged caused by “acts of God” are not covered. They include natural disasters, power surges, storms, earthquakes, tornados, sink holes, typhoons, tidal waves, hurricanes, or any other uncontrollable event related to nature. Damage caused by in correct installation will not be covered. Incorrect power supply, inadequate cooling, improper cabling, inadequate protection, static discharge are examples of this. -
Page 23: Exclusive Remedy
Exclusive Remedy To the maximum extent permitted by law, this limited warranty and the remedies set forth above are exclusive and in lieu of all other warranties, remedies, and conditions, whether oral or written, express or implied. To the maximum extent permitted by law, AVPro Global Holdings LLC specifically disclaims any and all implied warranties, including, without limitation, warranties of merchantability and fitness for a particular purpose.
