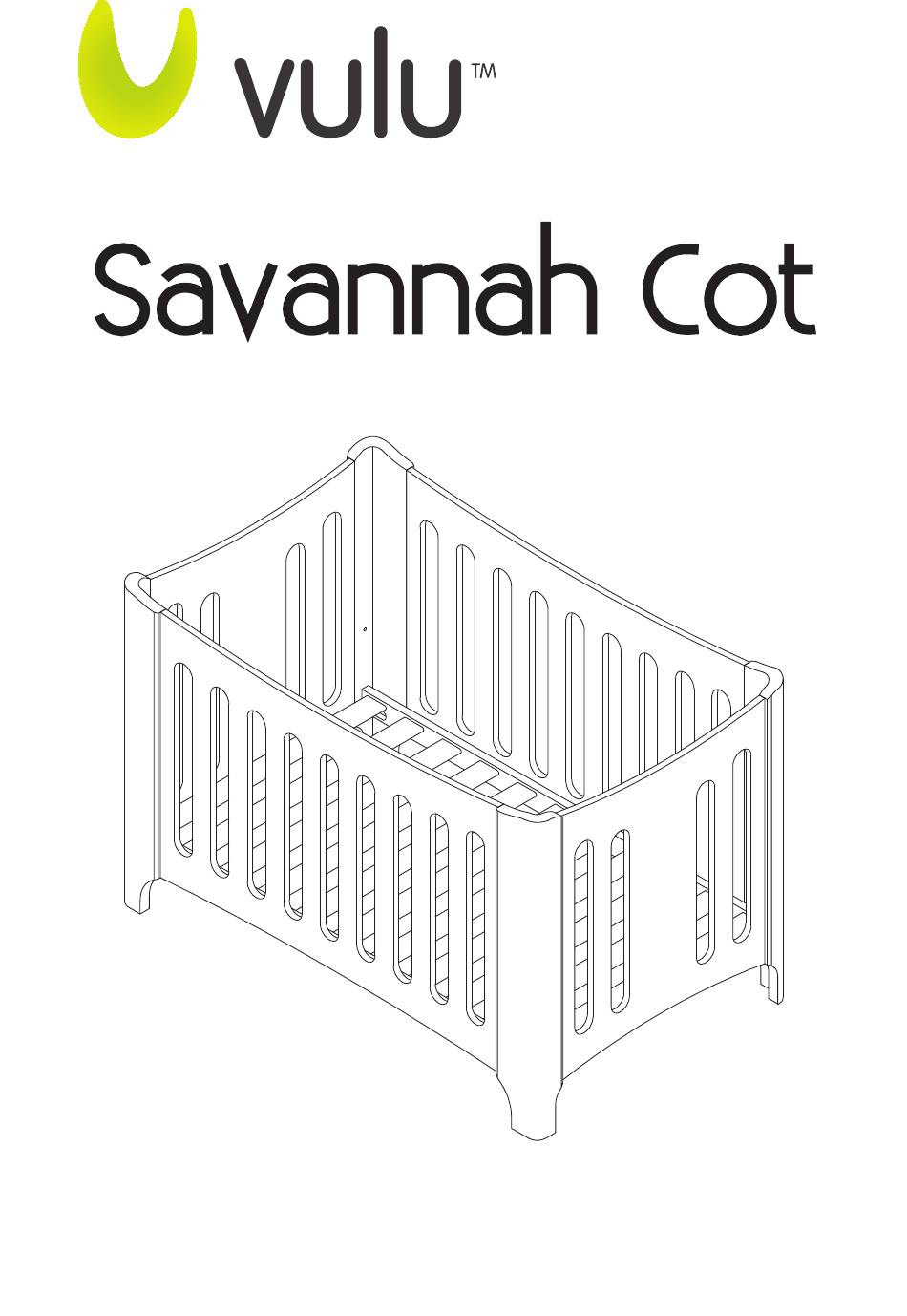

- Page 1 HK SVHCOT Savannah Cot Read all instructions BEFORE assembly and USE of product. KEEP INSTRUCTIONS FOR FUTURE USE...
- Page 3 Safety guidelines and instructions must always be followed before making use of this product, please retain these instructions for future reference. This product complies with product standard: AS/NZS 2172:2013 Cots for household use - Safety Requirements WARNING This cot has been designed for a child up to 25kg Warnings safety considerations for your child.
- Page 4 Hardware List Single Bed Parts (sold separately) Please ensure you have all parts before proceeding to assembly...
-
Page 5: Parts List
Parts List WARNING Small parts can present a choking hazard. Always keep small parts out of reach of children both during and after assembly. Store any spare or unused parts in a safe place. - Page 6 Attach corner posts to end panels Attach the corner posts (B,C,D and E) to one of the end panels (A). Note how the corner posts are facing. Secure the end panel at each end with four (1) connector screws. Do not fully tighten the screws yet.
- Page 7 Attach side panels to end panel Attach the side panel (F) to the assembled ends. Secure the side panel at each end with four (1) connector screws. Do not fully tighten the screws yet. Attaching the Base Secure the base to the assembled side panel and end panels at each end with the connector screws (6).
- Page 8 Pluging unused holes IMPORTANT SAFETY STEP Fit the (3)screws to the 4 remaining unused base locating holes on the side panels. (2 on each side) This is a required safety step to prevent the entry of small fingers into these holes. Assembled Cot...
- Page 9 Single Bed Assembly (Sold separately) Attach the corner (B,C,D and E) posts to the end panel (A). Note how the corner posts are facing. This is the opposite of the way for the cot. Secure each post using the (1) connector screws.
- Page 10 Attaching the Bed Rails Attach the bed rails (J)to the assmbled ends and side rails using 6x (6) connector screws. Attaching the slats to the base Plug the open holes with the (3) screws Use the screws (5) to screw in the slats as shown.
- Page 11 The assembled Junior Bed.
-
Page 12: Warranty Against Defects
Where you send the product directly to the manufacturer then you may be liable for the costs of transportation to and from Vulu/Love N Care. Love N Care will meet the reasonable expenses incurred by a consumer in a making a warranty claim. - Page 13 Contact Us Head Office: Love N Care Pty Ltd. 297-299 Canterbury Rd, Revesby NSW 2212 Australia Contact No: 02 9774 4655 Fax: 02 9774 4633 Email: info@lovencare.com.au Website: www.lovencare.com.au BROUGHT TO YOU BY...
