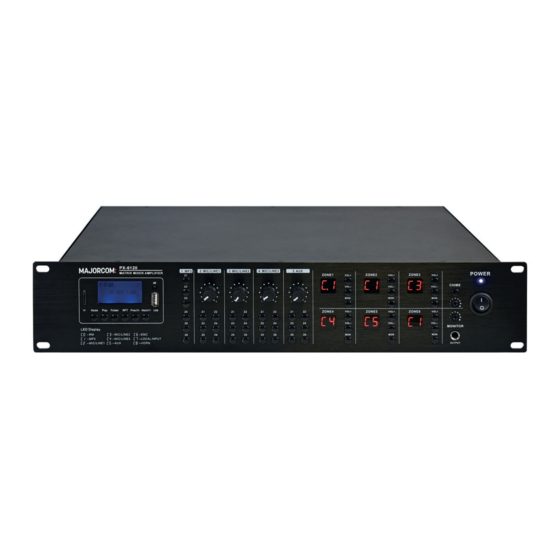

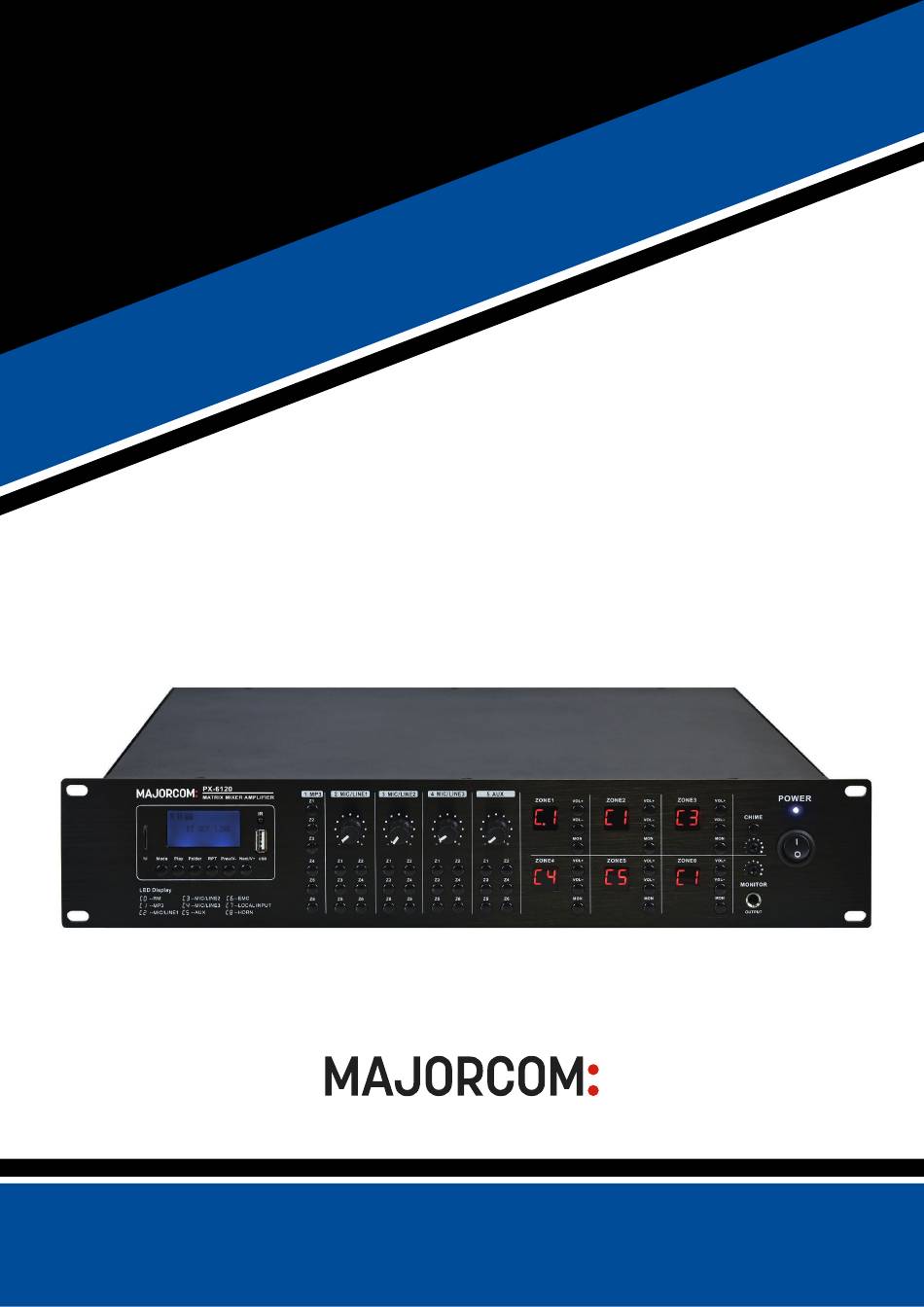

- Page 1 USER MANUAL PX-6120 6*6 ZONES MATRIX AMPLIFIER WITH MP3/FM/BLUETOOTH PLAYER Manual to download in PDF format on www.majorcom.fr...
- Page 2 PX-6120 6*6 ZONES MATRIX AMPLIFIER WITH MP3/FM/BT PLAYER 6*6 ZONES MATRIX AMPLIFIER WITH MP3/FM/BT PLAYER PX-6120 1. SAFETY WARNINGS Caution : Please read this manual carefully before using it. Damage caused by misuse is not covered by the warranty. SUMMARY 1.
- Page 3 PX-6120 6*6 ZONES MATRIX AMPLIFIER WITH MP3/FM/BT PLAYER 6*6 ZONES MATRIX AMPLIFIER WITH MP3/FM/BT PLAYER PX-6120 2.2 FRONT PANEL 2. INTRODUCTION 2.1 DESCRIPTION GÉNÉRALE • 6×6 matrix mixer amplifier with 6 x 120W outputs. • 5 sources and one EMC priority input distributed across 6 zones.
- Page 4 PX-6120 6*6 ZONES MATRIX AMPLIFIER WITH MP3/FM/BT PLAYER 6*6 ZONES MATRIX AMPLIFIER WITH MP3/FM/BT PLAYER PX-6120 2.3 BACK PANEL 3.2 DIP SWITCHES Mic/line inputs 1, 2 and 3 each have 2 DIP switches on the back panel to adjust the input level and/or en- able the +20V phantom power supply for the use of condenser microphones.
- Page 5 80% of the buttons. This section provides access to a Bluetooth™ receiver, an FM radio tuner and a USB/SD audio rated output power of the amplifier (in the case of the PX-6120, this represents 120W per output area). player.
- Page 6 PX-6120 6*6 ZONES MATRIX AMPLIFIER WITH MP3/FM/BT PLAYER 6*6 ZONES MATRIX AMPLIFIER WITH MP3/FM/BT PLAYER PX-6120 3.11 BLUETOOTH OPERATION 4. APPLICATION In order to be able to play the sound of a smartphone, tablet or other Bluetooth device, the built-in Bluetooth receiver must be paired with a device within the range.
- Page 7 PX-6120 6*6 ZONES MATRIX AMPLIFIER WITH MP3/FM/BT PLAYER 6*6 ZONES MATRIX AMPLIFIER WITH MP3/FM/BT PLAYER PX-6120 5. TECHNICAL CHARACTERISTICS NOTES MODEL PX-6120 Zones Output power 6 x 120 W Speaker output 100 V and 4/8 Ω Mic/Line 1-3 : 2,5 mV, balanced XLR input with 48 V phantom power supply...
- Page 8 PX-6120 AMPLIFICATEUR MATRICIEL 6*6 ZONES AVEC LECTEUR MP3/FM/BLUETOOTH User manual 5 6 , c h e m i n d e l a F l a m b è r e • 3 1 3 0 0 To u l o u s e • F R A N C E • T é l . 3 3 ( 0 ) 5 6 1 3 1 8 6 8 7...
