Summary of Contents for Truper IMP-1/2N

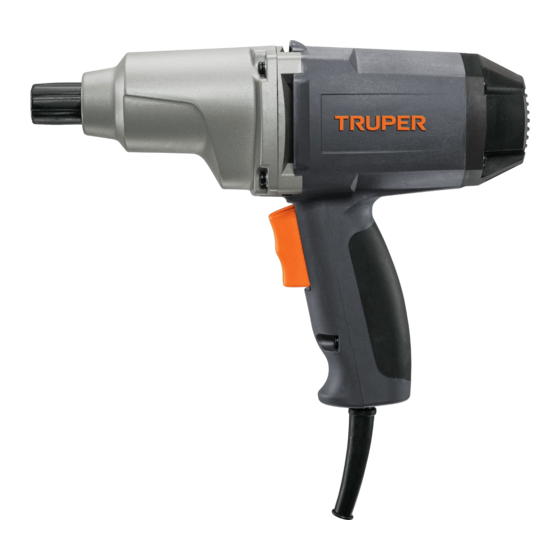

- Page 1 Manual Impact wrench Drive Power 1/2” 1.2 Hp (13 mm) Applies for: Model Code IMP-1/2N 11682 IMP-1/2N Read this manual thoroughly CAUTION before using the tool.
-
Page 2: Table Of Contents
Manual before Parts using the tool. Assembly Keep this manual for future references. Start Up The illustrations in this manual are for reference Maintenance only. They might be different from the real tool. Notes Authorized service centers Warranty policy IMP-1/2N ENGLISH... -
Page 3: Technical Specifications
Technical Specifications IMP-1/2N Code 11682 Description Impact Wrench Square Drive 1/2” Voltage 127 V Frequency 60 Hz Current Speed 2 100 RPM Maximum Torque 220 Nm (162 lb-ft) Duty cycle 5 s work per 5 s idle. max daily 6 h... -
Page 4: General Safety Warnings For Power Tools
General safety warnings for power tools WARNING! Read carefully all safety warnings and instructions listed below. Failure to comply with any of these warnings may result in electric shock, fire and / or severe damage. Save all warnings and instructions for future references. -
Page 5: Safety Warnings For Impact Wrenches
Safety warnings for impact wrenches Select the adequate sockets While operating the Impact Wrench CAUTION • Choose the right sockets for the • Hold the tool using the insulated gripping surfaces when carrying out operations in which the tool may material to be worked on, this reduces the risk of serious come into contact with hidden wiring or its own injury and speeds up the job. -
Page 6: Parts
Parts Retaining Motor Housing Square Gear Drive Case Handle Switch Power cord protector Power Cord Preparation Socket Installation CAUTION Always make sure that the tool is turned off and unplugged before performing any work on it. • Select the right socket for the job. Nut or Lug Inlet •... -
Page 7: Start Up
Start Up Switch on • Connect the tool. • Firmly hold the tool. • To make the square drive turn clockwise (tighten), press the lower part of the switch (F). • To make the square drive turn counter clockwise (loosen), press the upper part of the switch (R). •... -
Page 8: Maintenance
Maintenance Cleaning and Care Lubrication • To guarantee the proper cooling of the motor, always • The tool is adequately oiled in the factory. It does not keep the air vents clean and free of obstructions. require additional lubrication. • Regularly inspect all the mounting nuts and double check the screws are tight. -
Page 9: Notes
Notes ENGLISH... - Page 10 Notes ENGLISH...
-
Page 11: Authorized Service Centers
Authorized service centers In the event of any problem contacting a Truper Authorized Service Center, please see our webpage www.truper.com to get an updated list, or call our toll-free numbers 800 690-6990 or 800 018-7873 to get information about the nearest Service Center. -
Page 12: Warranty Policy
06060, where you can also purchase parts, components, consumables and accessories. The costs of transportation of the product that derive from its fulfillment of its service network are included. Truper will not require any proof of purchase to make the warranty effective. Phone number 800-018-7873. Made in China.
