Operator's Manual

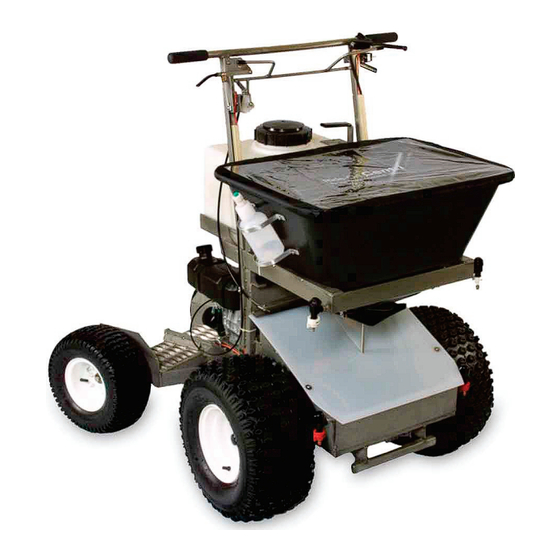

Ride-On Centri A1B Spreader Sprayer
DOCUMENT ID: C011T
Advertisement
Related Manuals for PermaGreen Supreme Centri 60 A1B
Summary of Contents for PermaGreen Supreme Centri 60 A1B
- Page 1 Operator’s Manual Ride-On Centri A1B Spreader Sprayer DOCUMENT ID: C011T MODEL Model# ROC (CENTRI) 60 A1B Serial #____________________ FOR TECHINCAL SUPPORT Direct all inquiries to: Perma Green Supreme, Inc. 5609 Murvihill Rd Valparaiso, IN 46383-8324 info@ride-onspreader.com For additional instructions please call 800.346.2001, or your local distributor (below) ©...
- Page 2 TABLE OF CONTENTS Introduction / Warnings..........Getting Started............. Riding Instructions............Spreader & Sprayer Calibration........Sprayer Overview............Sprayer Calibration & Mix Chart........Warranty............... INTRODUCTION This manual contains information on how to operate the Ride-On ® Centri Spreader Sprayer safely. Please read it carefully before beginning operation.
-
Page 3: Before Beginning
BEFORE BEGINNING 1. Read this manual and familiarize yourself with all the controls. 2. Practice getting on and off the machine and operating the handle release, throttle, gear shift, and brake. 3. Before starting the engine, refer to the Robin Subaru owner’s manual for proper safety and operating instructions. - Page 4 TO RIDE WITH THROTTLE LEVER RELEASED, SHIFT TO STOP, RELEASE THROTTLE LEVER PULL THROTTLE LEVER TO ENGAGE INTO 4TH GEAR AND STEP ON SULKY. AND PULL THE BRAKE LEVER. CENTRIFUGAL CLUTCH TO TURN, POINT FRONT OF MACHINE TO DESCEND SLOPE, STOP, TO CLIMB SLOPE, STOP AND IN DIRECTION OF TURN, SIMULTANEOUSLY SHIFT INTO LOW (L) GEAR.
- Page 5 HOPPER CALIBRATION Two things must be considered when calibrating a spreader. The first is the distribution pattern of the spreader. That is, the pattern the product makes as it strikes the ground after being thrown out by the spreader’s inpeller. There are many factors which affect the distribution pattern of a rotary spreader and some of them relate directly to the product.
- Page 6 CALIBRATING THE SPREADER PRODUCT APPLICATION RATE The Ride-On uses a double overlap spread. For most products, turn every 7 feet so that on the next pass the fertilizer reaches approximately back to the center of your last wheel marks. This method prevents striping the lawn, and allows the 11’- wide spray pattern to overlap at the edges for complete coverage.
-
Page 7: Adjusting The Spray Pattern
SPRAYER OVERVIEW 11 Ft. The 8 gallon tank supplies product to the 12 volt pump, which is located under and to the right of the engine. A generator and battery supplies the electricity to the pump. The pump is momentarioly turned on with a toggle switch on the left handle to spray and off to stop spraying. -
Page 8: Sprayer Calibration
SPRAYER CALIBRATION LIQUID CALIBRATION Rev the engine and measure the amount of liquid sprayed through one of the Gray nozzles, for 1 minute. It should be approximately 45 ounces. (Contact the factory if there is a significant variance.) Refer to the mix chart below. Locate your “6th (High) gear elapsed time” in the left hand column. Read across the row till it intersects the column that lists the desired chemical rate from your product label. - Page 9 PUMP TROUBLESHOOTING GUIDE Pulsating flow • • • • Pump does not prime • • • • • • • • Pump does not turn on • • • • • • Pump does not turn off • • • •...
- Page 10 GEECOE Services Inc. Southwest Products Corp. M&L Engine, Inc. Sullivan Bros., Inc. 441-7th Street 2760 Junipero Ave. 1212 St. Charles Street 139 Robbins Rd., P.O. Box 461 Salmon Arm, BC V1E 1S9 Long Beach, CA90806 Houma LA 70360 Downingtown, PA 19335-0461 Canada 562-424-0913 800-960-0068...
-
Page 11: Warranty
WARRANTY Perma-Green Supreme Inc hereby warrants to the original purchaser that the Ride-On ULTRA manufactured by Perma-Green Supreme Inc. will be free from defects in material and workmanship FOR A PERIOD OF (1) ONE YEAR, OR THE FIRST (500) FIVE HUNDRED OPERATING HOURS,WHICHEVER COMES FIRST, FROM THE DATE OF DELIVERY, EXCEPT AS NOTED BELOW.
