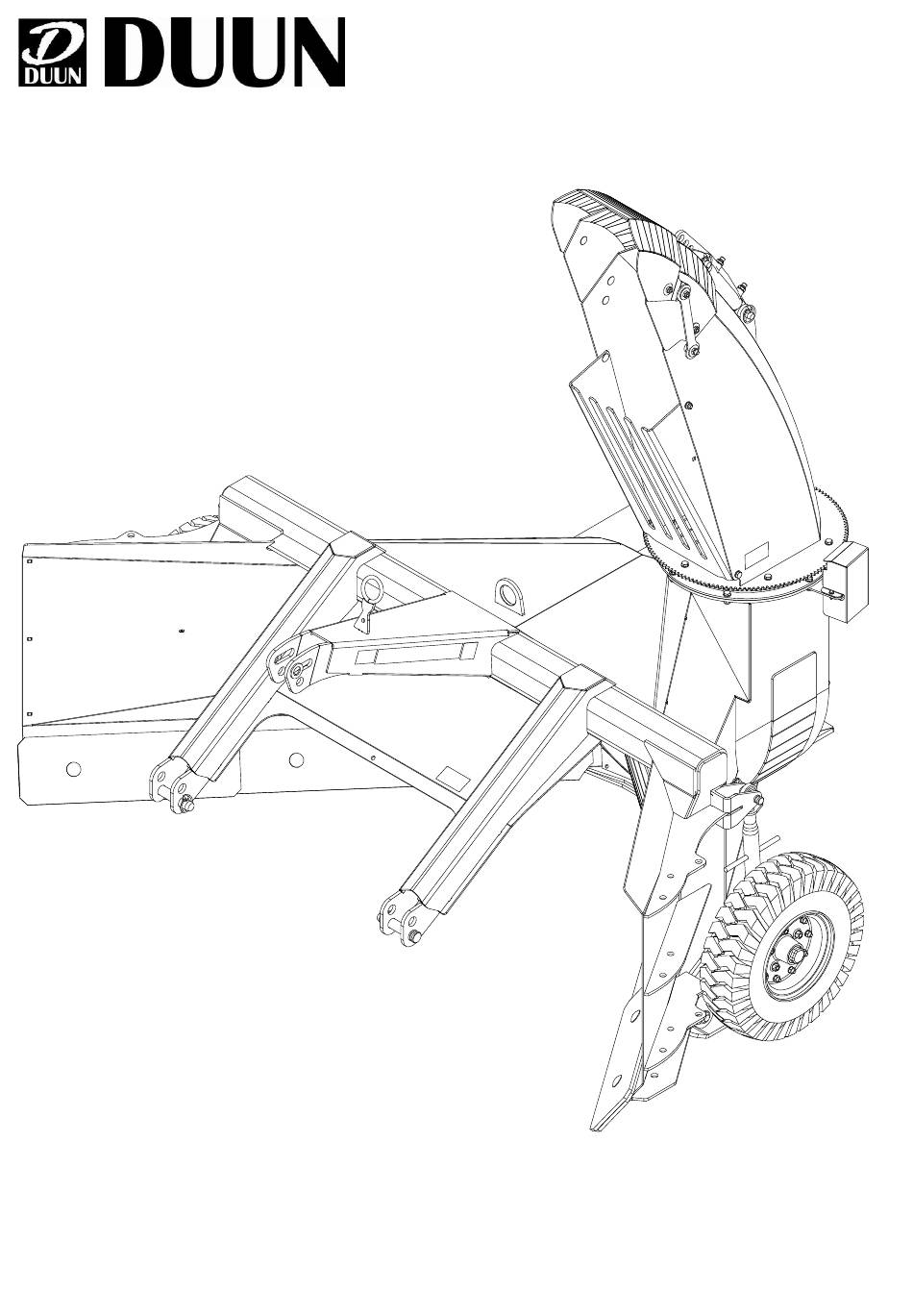

- Page 1 Duun Industrier as 7630 Åsen, Norway www.duun.no VF240 Instruction manual Serial number: from 140001...
-
Page 2: Machine Indetification
Congratulations on your Duun VF240 snow blower. All Duun tractor operated machines have been engineered and tested in close cooperation with representative users to produce functionally safe and user-friendly machines. Please read this instruction manual before using the machine. Good luck! Machine identification Serial number and manufacturer are indicated on badge (A). -
Page 3: Table Of Contents
CONTENT MACHINE INDETIFICATION SAFETY WARRANTY TERMS TECHNICAL DATA PREPARATION FOR USE CONNECTION SERVICE AND MAINTENANCE SHEAR – BOLT COUPLINGS OPERATIONAL RISKS PRACTICAL USE DISCONNECTION DECLARATION OF COMFORMITY... -
Page 4: Safety
SAFETY All operators, mechanics and the owner must always work carefully with agricultural machinery. Read and observe safety instructions in this instruction book. Be particularly aware of warning signs with this symbol, it marks measures that must be carried out in order to avoid accidents. The symbol appears in the instruction manual and on warning signs on the machine. - Page 5 5. Power transmission shaft The tractor is disengaged and the handbrake is applied before the shaft is connected to the tractor's PTO. The maximum power output speed is 540 rpm. The drive shafts are always to be equipped with original protection covers.
- Page 6 Always lower the machine to safety rest at ground level when it needs to be parked. Never work under a lifted device unless it is mechanically secured against coming down. Before startup after servicing make sure all tools have been removed and brought into place. Do not work in clothing that can be retracted into moving parts of the machine (e.g.
-
Page 7: Warranty Terms
Warranty terms Duun TFP240 has 12 months guarantee against defects in materials and workmanship. Parts that are not originally manufactured by Duun Industrier as, for example, wheels, hydraulic parts, etc. are subject to these suppliers’ guarantees and terms. In cases where a repair is considered to be covered by the guarantee, the representative must inform the supplier’s representatives that the repair is intended executed based on the guarantee. -
Page 8: Technical Data
Technical data... - Page 9 Features: VF240 Weight 640kg Width 2400 mm Working width with two side 2850 mm extensions Max length 1900 mm Left side length 1804 mm Right side length 1804 mm Extend center line of the right side 1307 mm Extend center line of the left side...
- Page 10 Transportation and management before use Snow blower housing is always lifted with strap attachments as illustrated. Please note that a single snowblower weighs is approx. 640 kg. Use lifting equipment suitable for this weight!! Installation of the breakdown flap (1251119) additional equipment 1.
-
Page 11: Preparation For Use
Preparation for use Adjustment of skid pads The snow blower is placed on a level surface and the skid pads are adjusted so that the wear steels on both sides + the infeed steel in front of the fan housing have clearance above ground level. Too small distance here will cause abnormal wear on both wear steel and feed steel. -
Page 12: Connection
Connection Stabilization struts/support struts on tractors must be used. This is to ensure that the snow blower does not get uncontrolled lateral movements while driving – i.e. goes in the same direction as the tractor all the times. Make sure no one is standing between the tractor and the machine during connection. Back the tractor up to the snow blower and stop the engine before the lifting arms are mounted in the three- point linkage, or is automatically connected to quick coupling HMV or triangle. -
Page 14: Service And Maintenance
Service and maintenance Before cleaning, lubricating, repairing or adjusting the machine, stop the engine and activate the handbrake, and remove the key during work. Pay special attention to safety during maintenance work, park the machine in according with specified safety rules. Inspection after screw connections Screws - nuts - fittings and bolts on the machine should be re-tensioned after two hours of operation. -
Page 15: Shear - Bolt Couplings
Shear - bolt couplings Remember to lower the machine, stop the tractor's engine and disconnect the PTO before fitting a new cutting bolt. Here are used bolts M12 qual.8.8. Operational risks It is the driver's responsibility not to expose himself or others to danger during the use of the snow blower.
