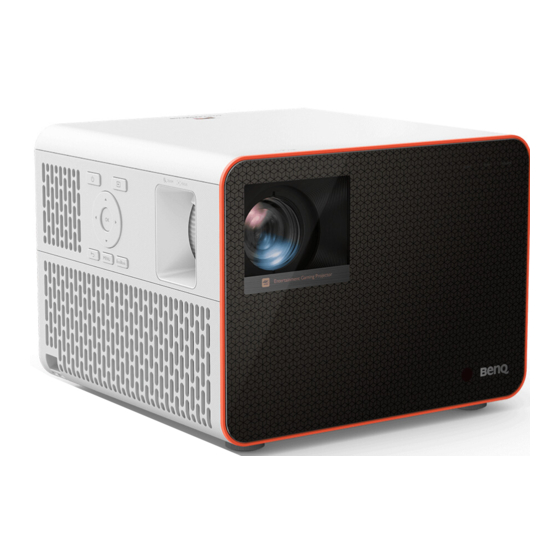

BenQ X3000i Installation Manual

Projector rs232 command control
Hide thumbs Also See for X3000i:
Table of Contents

Advertisement

Quick Links

Download this manual
X3000i
Projector RS232 Command Control
Installation Guide

Advertisement

Table of Contents
loading

Related Manuals for BenQ X3000i

Summary of Contents for BenQ X3000i

  • Page 1 X3000i Projector RS232 Command Control Installation Guide...

  • Page 2: Table Of Contents

    Table of Contents Introduction ............................. 3 Wire arrangement ................................ 3 RS232 pin assignment ..............................3 Connections and communication settings ..................4 RS232 serial port with a crossover cable ....................... 4 Settings .................................. 4 RS232 via LAN ................................6 Settings .................................. 6 RS232 via HDBaseT ..............................

  • Page 3: Introduction

    Introduction The document describes how to control your BenQ projector via RS232 from a computer. Follow the procedures to complete the connection and settings first, and refer to the command table for RS232 commands. Available functions and commands vary by model. Check the specifications and user manual of the purchased projector for product functions.

  • Page 4: Connections And Communication Settings

    Connections and communication settings Choose one of the connections and set up properly before RS232 control. RS232 serial port with a crossover cable D-Sub 9 pin (male) on a projector PC or laptop D-Sub 9 pin (female) Communication cable (crossover) Settings On-screen images in this document are for reference only.
  • Page 5 Choose Serial and the corresponding COM port as the communication port. In this given example, COM6 is selected. Finish Serial port setup. Baud rate 9600 / 14400 / 19200 / 38400 / 57600 / 115200 bps Check the baud rate of the connected projector from its OSD menu. Data length 8 bit Parity check...

  • Page 6: Rs232 Via Lan

    RS232 via LAN RJ45 port on a projector PC or laptop LAN cable Settings Find the Wired LAN IP address of the connected projector from the OSD menu and make sure the projector and the computer are within the same network. Input 8000 in the TCP port # field.
  • Page 7 Finish Serial port setup. Baud rate 9600 / 14400 / 19200 / 38400 / 57600 / 115200 bps Check the baud rate of the connected projector from its OSD menu. Data length 8 bit Parity check None Stop bit 1 bit Flow control None...

  • Page 8: Command Table

    Command table • Available features differ by projector specification, input sources, settings, etc.. • Commands are working if the standby power is 0.5W or a supported baud rate of the projector is set. • Uppercase, lowercase, and a mixture of both types of characters are accepted for a command. •...
  • Page 9 Write Mute Off <CR>*mute=off#<CR> Read Mute Status <CR>*mute=?#<CR> Write Volume + <CR>*vol=+#<CR> Write Volume - <CR>*vol=-#<CR> Write Volume level for <CR>*vol=value#<CR> customer Read Volume Status <CR>*vol=?#<CR> Write Mic. Volume + <CR>*micvol=+#<CR> Write Mic. Volume - <CR>*micvol=-#<CR> Read Mic. Volume Status <CR>*micvol=?#<CR> Write Audio pass Through <CR>*audiosour=off#<CR>...
  • Page 10 Write DCI-P3 mode <CR>*appmod=dci-p3#<CR> NO Write Vivid <CR>*appmod=vivid#<CR> Write Infographic <CR>*appmod=infographic# <CR> Write Sport <CR>*appmod=sport#<CR> Write User1 <CR>*appmod=user1#<CR> Write User2 <CR>*appmod=user2#<CR> Write User3 <CR>*appmod=user3#<CR> Write ISF Day <CR>*appmod=isfday#<CR> NO Write ISF Night <CR>*appmod=isfnight#<CR> NO Write <CR>*appmod=threed#<CR> YES Read Picture Mode <CR>*appmod=?#<CR>...
  • Page 11 Write Color <CR>*ct=warm#<CR> Temperature-War Write Color <CR>*ct=normal#<CR> Temperature-Norm Write Color <CR>*ct=cool#<CR> Temperature-Cool Color <CR>*ct=cooler#<CR> Write Temperature-Cool Color <CR>*ct=native#<CR> Write Temperature-lamp native Read Color Temperature <CR>*ct=?#<CR> Status Write Aspect 4:3 <CR>*asp=4:3#<CR> Write Aspect 16:6 <CR>*asp=16:6#<CR> Write Aspect 16:9 <CR>*asp=16:9#<CR> Write Aspect 16:10 <CR>*asp=16:10#<CR>...
  • Page 12 Read Horizontal Keystone <CR>*hkeystone=?#<CR> value Write Overscan <CR>*overscan=+#<CR> Adjustment + Write Overscan <CR>*overscan=-#<CR> Adjustment - Read Overscan <CR>*overscan=?#<CR> Adjustment value Write 4 Corners <CR>*cornerfittlx=-#<CR> Top-Left-X Decrease Write 4 Corners <CR>*cornerfittlx=+#<CR> Top-Left-X Increase Read 4 Corners <CR>*cornerfittlx=?#<CR> Top-Left-X Status Write 4 Corners <CR>*cornerfittly=-#<CR>...
  • Page 13 Top-Right-Y Status Write 4 Corners <CR>*cornerfitblx=-#<CR> Bottom-Left-X Decrease Write 4 Corners <CR>*cornerfitblx=+#<CR> Bottom-Left-X Increase Read 4 Corners <CR>*cornerfitblx=?#<CR> Bottom-Left-X Status Write 4 Corners <CR>*cornerfitbly=-#<CR> Bottom-Left-Y Decrease Write 4 Corners <CR>*cornerfitbly=+#<CR> Bottom-Left-Y Increase Read 4 Corners <CR>*cornerfitbly=?#<CR> Bottom-Left-Y Status Write 4 Corners <CR>*cornerfitbrx=-#<CR>...
  • Page 14 Write Digital Zoom out <CR>*zoomO#<CR> Write Auto <CR>*auto#<CR> Write Brilliant color on <CR>*BC=on#<CR> Write Brilliant color off <CR>*BC=off#<CR> Read Brilliant color status <CR>*BC=?#<CR> Write Reset picture <CR>*rstpicsetting#<CR> settings Write Projector <CR>*pp=FT#<CR> Position-Front Table Write Projector <CR>*pp=RE#<CR> Position-Rear Table Write Projector <CR>*pp=RC#<CR>...
  • Page 15 Status Write Direct Power On-on <CR>*directpower=on#<CR> Write Direct Power On-off <CR>*directpower=off#<CR> Read Direct Power <CR>*directpower=?#<CR> On-Status Write Signal Power On-on <CR>*autopower=on#<CR> Write Signal Power On-off <CR>*autopower=off#<CR> Read Signal Power <CR>*autopower=?#<CR> On-Status Write Standby <CR>*standbynet=on#<CR> Settings-Network Write Standby <CR>*standbynet=off#<CR> Settings-Network Read Standby <CR>*standbynet=?#<CR>...
  • Page 16 Write 9600 <CR>*baud=9600#<CR> Write 14400 <CR>*baud=14400#<CR> Write 19200 <CR>*baud=19200#<CR> Write 38400 <CR>*baud=38400#<CR> Write 57600 <CR>*baud=57600#<CR> Write 115200 <CR>*baud=115200#<CR> Read Current Baud Rate <CR>*baud=?#<CR> Read Lamp <CR>*ltim=?#<CR> Read Lamp2 Hour <CR>*ltim2=?#<CR> Write Normal mode <CR>*lampm=lnor#<CR> Write Eco mode <CR>*lampm=eco#<CR> Write SmartEco mode <CR>*lampm=seco#<CR>...
  • Page 17 Write Menu On <CR>*menu=on#<CR> Write Menu Off <CR>*menu=off#<CR> Read Menu Status <CR>*menu=?#<CR> Write <CR>*up#<CR> Write Down <CR>*down#<CR> Write Right <CR>*right#<CR> Write Left <CR>*left#<CR> Write Enter <CR>*enter#<CR> Write Back <CR>*back#<CR> Write Source Menu On <CR>*sourmenu=on#<CR> Write Source Menu Off <CR>*sourmenu=off#<CR> Read Source Menu Status <CR>*sourmenu=?#<CR>...
  • Page 18 Write Remote <CR>*rr=tr#<CR> Receiver-top+rear Read Remote Receiver <CR>*rr=?#<CR> Status Write Instant On-on <CR>*ins=on#<CR> Write Instant On-off <CR>*ins=off#<CR> Read Instant On Status <CR>*ins=?#<CR> Write Lamp Saver <CR>*lpsaver=on#<CR> Mode-on Write Lamp Saver <CR>*lpsaver=off#<CR> Mode-off Read Lamp Saver Mode <CR>*lpsaver=?#<CR> Status Projection Log In <CR>*prjlogincode=on#<CR>...
  • Page 19 Read Color Gamut Value <CR>*cgamut=?#<CR> Write Dynamic Iris ON <CR>*diris=on#<CR> Write Dynamic Iris OFF <CR>*diris=off#<CR> Read Dynamic Iris status <CR>*diris=?#<CR>...

  • Page 20: Faq Video

    FAQ Video (1) How to use RS232 cable to do volume control and sound control on projector? https://youtu.be/P4F26kEv60U (2) How to use RS232 cable connection to power on & off projector? https://youtu.be/faGUvcDBmJE (3) How to set up RS232 cable connection? https://youtu.be/CYJRqyO6K1w (4) How to use RS232 command to request fan speed and temperature value? https://youtu.be/KBXEd-BCDKQ...
  • Page 21 BenQ.com © 2018 BenQ Corporation All rights reserved. Rights of modification reserved. Version: 1.01-C...
