Product Overview
A B
C
D
Charging
Connect the supplied USB-C cable to the USB-C port on the device and the other end to a power source. The battery
LED indicators will flash white whilst charging. Please fully charge the powerbank before use. Once fully charged, the
battery LED indicators will light up white.
Connect a USB cable (not included) to the USB port and the other end to your device. The powerbank will start
charging the connected device.
When fast charging or discharging the indicator will light up Blue (The end light).
LED indicator status
LED
Battery
100-75% 75-50%
capacity
Troubleshooting
• Make sure the USB-C or USB-A cable is
Cannot charge
device
• Try another USB-C or USB-A charging cable.
No LED light when
• Connect the power bank to your power source
charging device
Specifications
Input
USB-C: PD 5V, 3A/9V, 3A/12V,3A/ 15V, 3A/20V, 3.25A
USB: 5V, 3A/9V, 3A/12V, 2.25A*
Output
USB-C: PD 5V, 3A/9V, 3A/12V, 3A/15V, 3A/20V, 3.25A* (65W Max.)
Battery
3.7V, 20,000mAh
Operating
Minimum: 5°C
temperature
Maximum: 25°C
Dimension
155 x 77 x 28mm
Weight
440g (approx.)
* Output is dependent on the mobile device's input power and the charging cable
A. Battery LED indicators and fast charging indicator
B. Battery indicator button - press this button to check
the battery level
C. USB port
D. USB-C Port (Input & Output)
50-25%
25-0%
plugged into the output port.
to ensure the power bank has sufficient battery.
User Guide

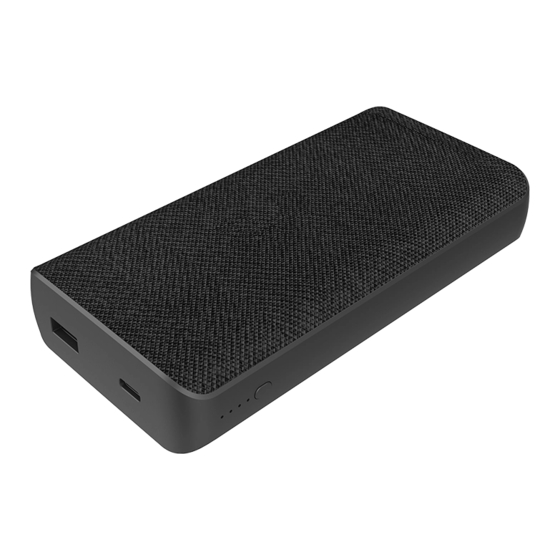

20,000 mAh 65W POWER BANK
For Technical and Warranty Support
1300 886 649
tempo.org/support
Distributed by Tempo (Aust) Pty Ltd,
PO Box 132, Frenchs Forest NSW 1640
KZ-PB20KAC
