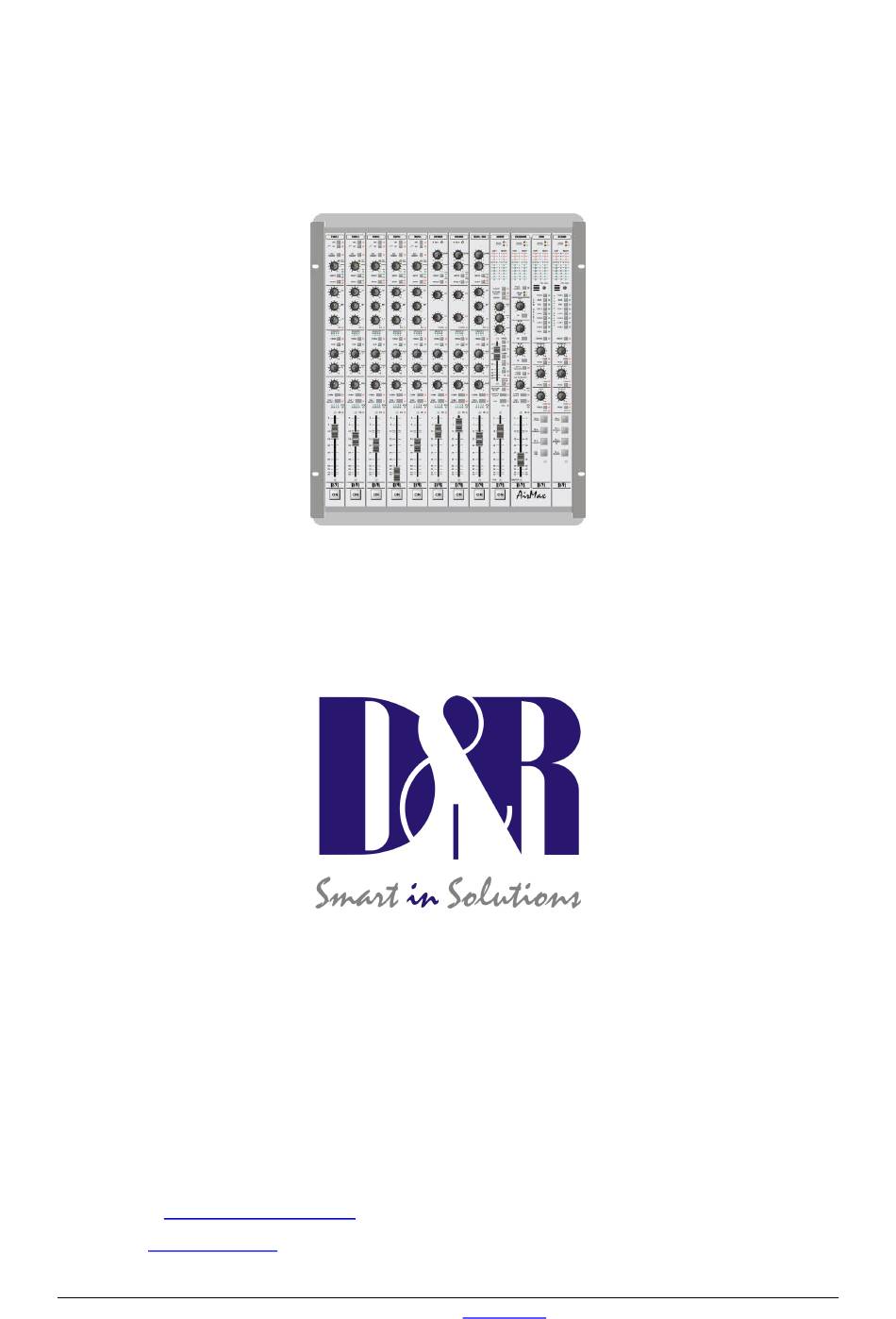

- Page 1 AIRMAX User Manual Version: 1.0.0.0 D&R Electronica Weesp BV Rijnkade 15B 1382GS Weesp The Netherlands Phone: +31 (0)294-418014 Fax: +31 (0)294-416987 Website: http://www.d-r.nl E-mail: info@d-r.nl AirMax from D&R - Phone: +31 294 418014 - E-Mail: info@d-r.nl - 1 -...
- Page 2 We always value suggestions from our clients, once they have become familiar with their console. We will certainly learn from your comments and very much appreciate your time doing this. We are confident that you will be using the AirMax for many years to come, and wish you a lot of success.
-
Page 3: Table Of Contents
ANEL AIRMAX SOFTWARE ..........................39 16.1 ............................39 NSTALLATION 16.2 ........................... 39 ETTING TARTED SPECIFICATIONS............................. 41 SICO REMOTE UNIT ..........................42 LIST OF FIGURES ............................ 43 AirMax from D&R - Phone: +31 294 418014 - E-Mail: info@d-r.nl - 3 -... - Page 4 Contents LIST OF TABLES............................44 DECLARATION OF CONFORMITY......................45 PRODUCT SAFETY..........................46 DISCLAIMER ............................49 AirMax from D&R - Phone: +31 294 418014 - E-Mail: info@d-r.nl - 4 -...
-
Page 5: Package Contents
You can use this manual later on as a reference. In the first chapter, we shall give you an overview of the AirMax and its features. In this way, you can have an impression of how to implement the system in your application. -
Page 6: System Structure
One side of the cable is connected to the back of the AirMax frame and the other end is connected to one out of five different path panels. Doing it this way the connectors can be brought to the source resulting in compact and neat cabling. -
Page 7: Triple On-Air Input Stereo Module
RIAA Plug-in PCB Optionally a RIAA Plug-in PCB can be inserted into the signal path of LINE B to connect a gramophone player directly to this input. AirMax from D&R - Phone: +31 294 418014 - E-Mail: info@d-r.nl - 7 -... -
Page 8: General Purpose Input / Output
GPO’s can send out pulse or a continuous signals when triggered. Pulses can be generated by on, off or both. The module has four GPO’s. When properly connected to an AirMax patch-panel all GPO’s are connected to one of the Remote jack connectors between the Tip and Ring. By opto-isolated relays the GPO’s are able to handle a maximum of 50 V at 200 mA. -
Page 9: Triple Input Stereo Module
The AUX1 control adjusts the amount of signal sent to the stereo AUX 1 bus. AUX2 The AUX2 control adjusts the amount of signal sent to the stereo AUX 2 bus. AirMax from D&R - Phone: +31 294 418014 - E-Mail: info@d-r.nl - 9 -... - Page 10 RIAA Plug-in PCB Optionally a RIAA Plug-in PCB can be inserted into the signal path of LINE B to directly connect a gramophone player to the input. AirMax from D&R - Phone: +31 294 418014 - E-Mail: info@d-r.nl - 10 -...
-
Page 11: General Purpose Input / Output
AirMax has the ability to figure this out by itself. The module has two GPI’s. When properly connected to an AirMax patch-panel all GPI’s have a 5 V TTL 100 kOhm circuitry connected to one of the Remote jack connectors between the Tip and Ring. -
Page 12: Triple Pro Input Stereo Module
The SUB switch assigns the signal in stereo to the SUB output, where the SUB control adjusts the amount of signal send to the SUB output just like an AUX send. AirMax from D&R - Phone: +31 294 418014 - E-Mail: info@d-r.nl... - Page 13 RIAA Plug-in PCB Optionally a RIAA Plug-in PCB can be inserted into the signal path of LINE B to connect a gramophone player directly to the input. AirMax from D&R - Phone: +31 294 418014 - E-Mail: info@d-r.nl - 13 -...
-
Page 14: General Purpose Input / Output
AirMax has the ability to figure this out by itself. The module has two GPI’s. When properly connected to an AirMax patch-panel all GPI’s have a 5 V TTL 100 kOhm circuitry connected to one of the Remote jack connectors between the Tip and Ring. -
Page 15: Hybrid Module
COMM bus at the same time. These leds indicate if and which VCA master controls this module. The VCA led gives an indication of the VCA control voltage. AirMax from D&R - Phone: +31 294 418014 - E-Mail: info@d-r.nl - 15 -... - Page 16 FADER The linear fader controls a VCA and the module's overall level. Channel ON/OFF switch. The associated LED will light when the ON switch is active. AirMax from D&R - Phone: +31 294 418014 - E-Mail: info@d-r.nl - 16 -...
-
Page 17: General Purpose Input / Output
AirMax has the ability to figure this out on itself. The module has three GPI’s. When properly connected to an AirMax patch-panel two GPI’s have a 5 V TTL 100 kOhm circuitry connected to one of the Remote jack connectors between the Tip and Ring. -
Page 18: Telco/Digital Module
These leds indicate if and by which VCA master this module is currently controlled. The VCA led gives an indication of the amplitude of the VCA control voltage. AirMax from D&R - Phone: +31 294 418014 - E-Mail: info@d-r.nl - 18 -... - Page 19 The linear fader controls a VCA and thereby the module's overall level. Channel ON/OFF switch. The associated LED will light when the ON switch is active. AirMax from D&R - Phone: +31 294 418014 - E-Mail: info@d-r.nl - 19 -...
-
Page 20: General Purpose Input / Output
AirMax has the ability to figure this out by itself. The module has four GPI’s. When properly connected to an AirMax patch-panel all GPI’s have a 5 V TTL 100 kOhm circuitry connected to one of the Remote jack connectors between the Tip and Ring.
