Summary of Contents for Helena Laboratories QuickGel 1284

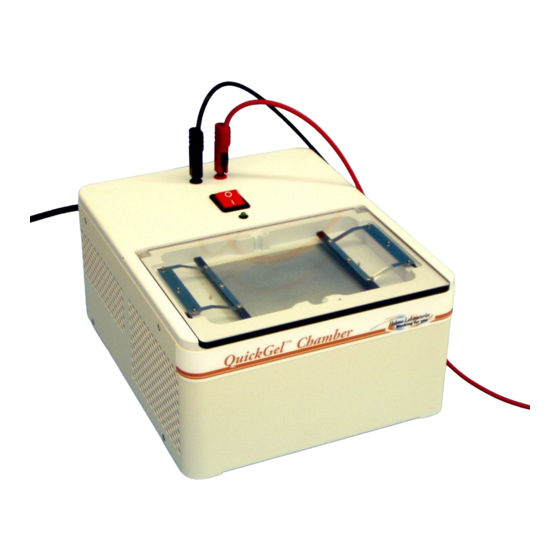

- Page 1 QuickGel ® Chamber Gel Electrophoresis and Drying Operator's Manual Catalog Number 1284 100-240 V AC, 47-63 Hz...
-
Page 2: Table Of Contents
QUICKGEL CHAMBER Table of Contents List of Sections Section 1 - Instrument Use and Function ................1-1 Section 2 - Principles of Operation ..................2-1 Section 3 - Precautions and Limitations ................3-1 Section 4 - Hazards ....................... 4-1 Section 5 - Controls ......................5-1 Section 6 - Installation Instructions .................. -
Page 3: Section 1 - Instrument Use And Function
QUICKGEL CHAMBER ONE - Instrument Use and Function Section 1 - Instrument Use and Function ® The Helena QuickGel Chamber is intended for the electrophoresis of samples on Quick- Gel agarose gels. Once electrophoresis is complete, the QuickGel Chamber provides for the drying of the gel. -
Page 4: Section 2 - Principles Of Operation
QUICKGEL CHAMBER TWO - Principles of Operation Section 2 - Principles of Operation The gel is placed in the electrophoresis chamber, sample is applied, and current is applied from an external electrophoresis power supply at the recommended voltage for the recommended time interval. The sample migrates across the gel, separating into frac- tions. -
Page 5: Section 3 - Precautions And Limitations
QUICKGEL CHAMBER THREE - Precautions and Limitations Section 3 - Precautions and Limitations and germicidal agent. Observe where the specimens are used inside the instrument 3.1. The entire operator’s manual should be and confine cleaning to that area. Wipe up read and understood before attempting in- the residue. -
Page 6: Section 4 - Hazards
QUICKGEL CHAMBER FOUR - Hazards Section 4 - Hazards 4.1. If the instrument is used in a manner not specified by this manual, the protection pro- vided by equipment design may be impaired. 4.2. This device contains very high voltages which can be extremely dangerous. -
Page 7: Section 5 - Controls
QUICKGEL CHAMBER FIVE - Controls Section 5 - Controls Electrophoresis Supply Input Red and Black Leads and Ports Power Indicator Switch Light Figure 5-1. QuickGel Chamber Controls... -
Page 8: Section 6 - Installation Instructions
59° to 80°F (15° to 27°C). signs of damage. If damage is found, notify 2. Place the instrument on a level, flat surface the shipping carrier and Helena Laboratories. near an external electrophoresis power sup- 5. Inventory all items and if any parts are ply. - Page 9 QUICKGEL CHAMBER SIX - Installation Instructions 4. Plug the red and black leads into the like colored ports on the top of the instrument by simultaneously squeezing the black tab at the end of each lead and inserting the lead into the appropriate port.
-
Page 10: Section 7 - Operating Instructions
QUICKGEL CHAMBER SEVEN - Operating Instructions Section 7 - Operating Instructions 9. To dry a gel using the QuickGel Chamber: a. Install the dryer lid (section 7.1.1). 7.1. Instrument Operation b. If this is the final dry cycle of the test, en- 1. -
Page 11: Results
QUICKGEL CHAMBER SEVEN - Operating Instructions 7.3. Results Refer to the procedure supplied with the gels for a complete discussion of results and their interpretation. 7.4. Cleanup The sample cups and applicator blades should be handled and disposed of as bio- hazards. -
Page 12: Figure 7-1. Quickgel Chamber
QUICKGEL CHAMBER SEVEN - Operating Instructions Figure 7-1. QuickGel Chamber Notches in lid Horizontal posts in chamber Figure 7-2. Installing/Removing Chamber Lids... -
Page 13: Figure 7-3. Electrophoresis Lid
QUICKGEL CHAMBER SEVEN - Operating Instructions Figure 7-3. Electrophoresis Lid Figure 7-4. Dryer Lid... -
Page 14: Section 8 - Test Functions And Quality Control
QUICKGEL CHAMBER EIGHT - Test Functions and Quality Control Section 8 - Test Functions and Quality Control Refer to the procedures supplied with the gels. A control should be run on each electropho- resis gel. Control data should be compared to the assay ranges printed on the assay sheet provided with the control. -
Page 15: Section 9 - Performance Specifications
QUICKGEL CHAMBER NINE - Performance Specifications Section 9 - Performance Specifications Test Types: Serum Protein Split Beta, CK, IFE, Acid Hemoglobin, Alkaline Hemoglobin Input Power: 100-240 Vac Frequency Rating: 47-63 Hz Current Rating: 3 Amps Fuses, located internally. Do not attempt to replace fuses. -
Page 16: Section 10 - Maintenance, Troubleshooting, Warranty
10.1.3. Clean Applicator, Applicator in this manual, call Helena Laboratories for Base, and Rigid Antisera assistance. Template WARNING: The QuickGel Chamber is factory After each test, clean each reusable piece lubricated. - Page 17 QUICKGEL CHAMBER TEN - Maintenance, Troubleshooting, Warranty 3. Remove all remaining adhesive from the sheet has been stretched, it may be difficult to surface of the chamber floor using an Adhe- smooth out the wrinkles. If this occurs, re- sive Remover Pad provided with the contact place the contact sheet.
-
Page 18: Troubleshooting
QUICKGEL CHAMBER TEN - Maintenance, Troubleshooting, Warranty 10.2. Troubleshooting If the recommended solutions should fail to solve a problem, call Helena Laboratories for as- sistance. Table 10-2. Troubleshooting Problem Possible Cause Solution No power to instrument Power cord unplugged Plug cord into proper wall outlet. -
Page 19: Figure 10-1. Preventive Maintenance Schedule Checklist
QUICKGEL CHAMBER TEN - Maintenance, Troubleshooting, Warranty Figure 10-1. Preventive Maintenance Schedule Checklist 10-4... -
Page 20: Section 11 - Symbology
QUICKGEL CHAMBER ELEVEN - Symbology Section 11 - Symbology NOTE: The following symbols may be used in this manual, or on the instrument, to provide information necessary to the user, if applicable. Caution, electric shock hazard, high voltages capable of causing personal injury - shut down the instrument and unplug the power cord before touching - do not operate with the cover(s) removed Caution, heat hazard - allow heated components to cool before handling... - Page 21 ® QuickGel Chamber Operator’s Manual For additional information, call Helena Laboratories at 800-231-5663, toll free. Helena Laboratories Prince Technologies B.V. P.O. Box 752 Waanderweg 62 Beaumont, Texas 77704-0752 7812 HZ Emmen Netherlands May, 2021 D6500097H © Helena Laboratories, Corp. 05/21...
