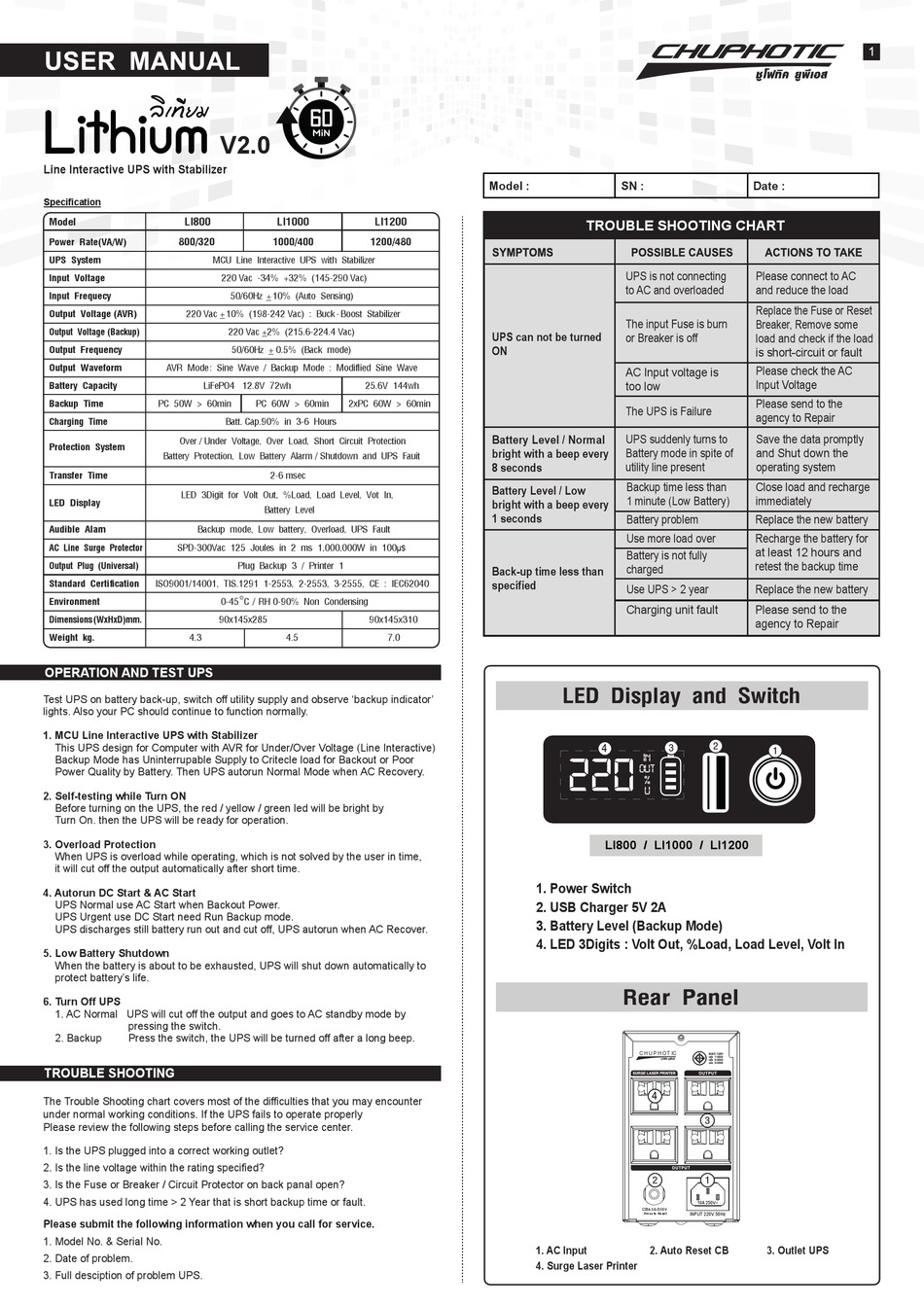

Chuphotic LI800 User Manual

Line Interactive UPS with Stabilizer
Specification
Model LI800
800/320
Power Rate(VA/W)
UPS System
MCU Line Interactive UPS with Stabilizer
Input Voltage
Input Frequecy
Output Voltage (AVR) 220 Vac + 10% (198-242 Vac) : Buck - Boost Stabilizer
Output Voltage (Backup)
Output Frequency
Output Waveform
AVR Mode : Sine Wave / Backup Mode : Modiflied Sine Wave
Battery Capacity
LiFePO4 12.8V 72wh
Backup Time
PC 50W > 60min
Charging Time
Over / Under Voltage, Over Load, Short Circuit Protection
Protection System
Battery Protection, Low Battery Alarm / Shutdown and UPS Fauit
Transfer Time
LED 3Digit for Volt Out, %Load, Load Level, Vot In,
LED Display
Audible Alam
Backup mode, Low battery, Overload, UPS Fault
AC Line Surge Protector
SPD-300Vac 125 Joules in 2 ms 1,000,000W in 100
Output Plug (Universal)
Standard Certification
ISO9001/14001, TIS.1291 1-2553, 2-2553, 3-2555, CE : IEC62040
Environment
Dimensions (WxHxD)mm.
Weight kg.
4.3
OPERATION AND TEST UPS
Test UPS on battery back-up, switch off utility supply and observe 'backup indicator'
lights. Also your PC should continue to function normally.
1. MCU Line Interactive UPS with Stabilizer
This UPS design for Computer with AVR for Under/Over Voltage (Line Interactive)
Backup Mode has Uninterrupable Supply to Critecle load for Backout or Poor
Power Quality by Battery. Then UPS autorun Normal Mode when AC Recovery.
2. Self-testing while Turn ON
Before turning on the UPS, the red / yellow / green led will be bright by
Turn On. then the UPS will be ready for operation.
3. Overload Protection
When UPS is overload while operating, which is not solved by the user in time,
it will cut off the output automatically after short time.
4. Autorun DC Start & AC Start
UPS Normal use AC Start when Backout Power.
UPS Urgent use DC Start need Run Backup mode.
UPS discharges still battery run out and cut off, UPS autorun when AC Recover.
5. Low Battery Shutdown
When the battery is about to be exhausted, UPS will shut down automatically to
protect battery's life.
6. Turn Off UPS
1. AC Normal UPS will cut off the output and goes to AC standby mode by
pressing the switch.
2. Backup Press the switch, the UPS will be turned off after a long beep.
TROUBLE SHOOTING
The Trouble Shooting chart covers most of the difficulties that you may encounter
under normal working conditions. If the UPS fails to operate properly
Please review the following steps before calling the service center.
1. Is the UPS plugged into a correct working outlet?
2. Is the line voltage within the rating specified?
3. Is the Fuse or Breaker / Circuit Protector on back panal open?
4. UPS has used long time > 2 Year that is short backup time or fault.
Please submit the following information when you call for service.
1. Model No. & Serial No.
2. Date of problem.
3. Full desciption of problem UPS.
V2.0
LI1000 LI1200
1000/400 1200/480
220 Vac -34% +32% (145-290 Vac)
50/60Hz + 10% (Auto Sensing)
220 Vac +2% (215.6-224.4 Vac)
50/60Hz + 0.5% (Back mode)
25.6V 144wh
PC 60W > 60min 2xPC 60W > 60min
Batt. Cap.90% in 3-6 Hours
2-6 msec
Battery Level
Plug Backup 3 / Printer 1
°
0-45 C / RH 0-90% Non Condensing
90x145x285 90x145x310
4.5 7.0
Model :
UPS can not be turned
ON
Battery Level / Normal
bright with a beep every
8 seconds
Battery Level / Low
bright with a beep every
1 seconds
s
µ
Back-up time less than
specified
LED Display and Switch
220
1. Power Switch
2. USB Charger 5V 2A
3. Battery Level (Backup Mode)
4. LED 3Digits : Volt Out, %Load, Load Level, Volt In
1. AC Input
4. Surge Laser Printer
SN : Date :
TROUBLE SHOOTING CHART
UPS is not connecting Please connect to AC
to AC and overloaded and reduce the load
Replace the Fuse or Reset
The input Fuse is burn Breaker, Remove some
or Breaker is off
load and check if the load
is short-circuit or fault
Please check the AC
AC Input voltage is
Input Voltage
too low
Please send to the
The UPS is Failure
agency to Repair
UPS suddenly turns to Save the data promptly
Battery mode in spite of and Shut down the
utility line present operating system
Backup time less than Close load and recharge
1 minute (Low Battery) immediately
Battery problem Replace the new battery
Use more load over Recharge the battery for
at least 12 hours and
Battery is not fully
retest the backup time
charged
Use UPS > 2 year Replace the new battery
Charging unit fault Please send to the
agency to Repair
4
IN
OUT
%
U
LI800 / LI1000 / LI1200
Rear Panel
CHUPHOTIC
ª Ù â ¿· Ô ¤ Â Ù ¾ Õ à ÍÊ
4
10A 250V~
CB 4.5A / 250V
INPUT 220V 50Hz
Press to Reset
2. Auto Reset CB 3. Outlet UPS
