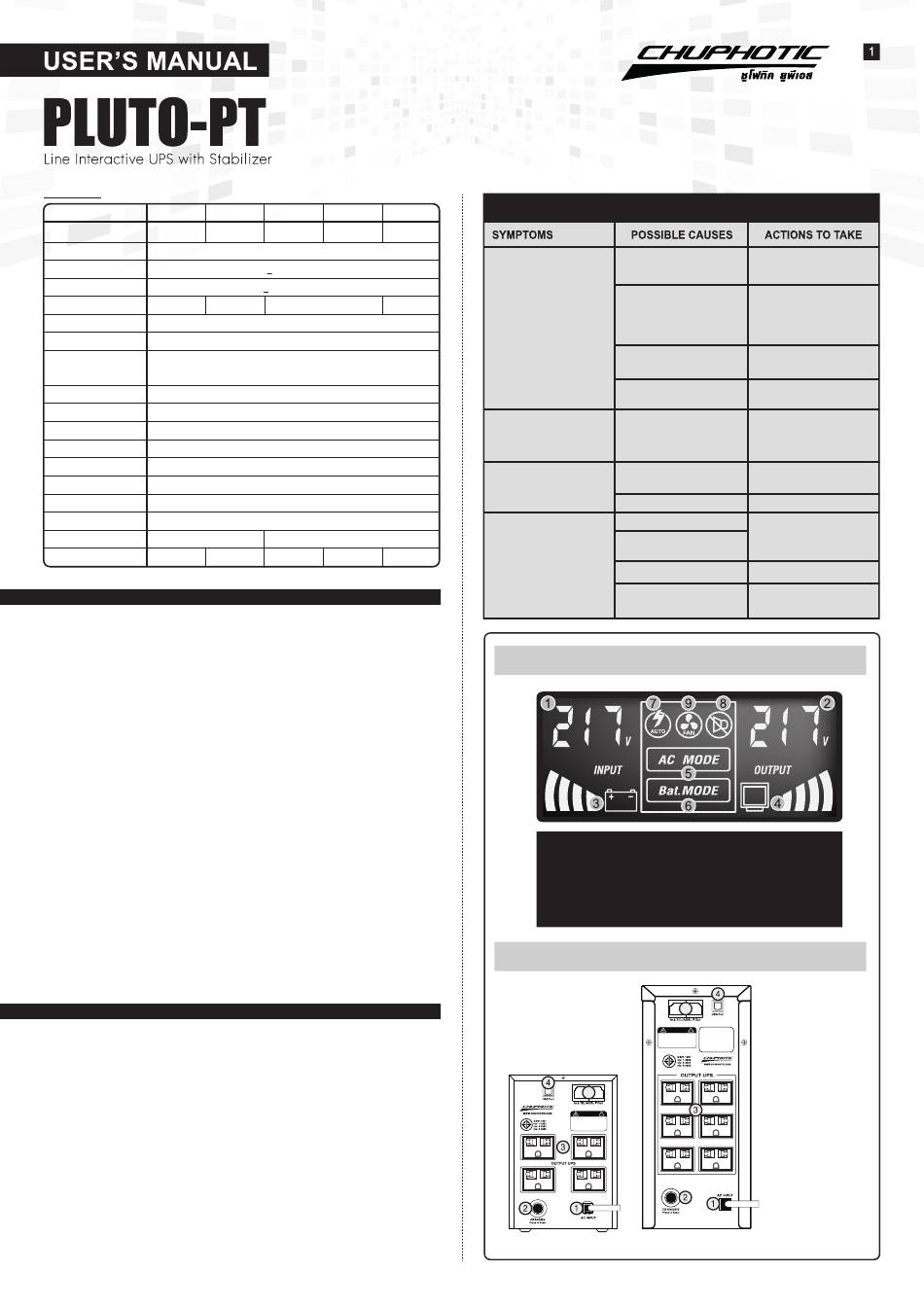

Chuphotic PLUTO-PT User Manual

Specification

Model PT650P PT800P
650 / 390 800 / 480 1050 / 630 1200 / 720 1500 / 900
Power Rate (VA/W)
Input Voltage
Output Voltage (AVR)
Output Voltage (Backup)
Battery Capacity 12V 7.5Ah 12V 9.4Ah
Backup Time
Charging Time
Over / Under Voltage, Over Load, Short Circuit Protection
Protection System
Low Battery Shutdown Fault and Battery Replacement
Transfer Time
LCD Display Normal, Backup, Overload, Low Battery, Battery Replacement
Audible Alam Backup mode, Low battery, Overload, Fault
Control Program USB port & Cable with PowerManager software
AC Line Surge Protector 1,000,000W in 100
Tel / ADSL Surge TVSS
Standard Certification
ISO9001/14001, TIS.1291 1-2553, 2-2553, 3-2555, CE : IEC62040
Environment -45
Dimensions (WxHxD) mm. 108x330x160
Weight kg. 6

OPERATION AND TEST THE UPS

Test UPS on battery back-up, switch off utility supply and observe 'backup indicator'
lights. Also your PC should continue to function normally.
1. Self-testing while Turn ON
Before turning on the UPS, the red/yellow/green led will be bright twice by turns.
then the UPS will be ready for operation.
2. Silence Function
In Battery Mode, shortly press the switch will enable or disable the buzzer.
But when UPS is low battery or overload, the buzzer can not be silenced.
3. Overload Protection
When UPS is overloaded while operating, which is not solved by the user in time,
it will cut off the output automatically after short time.
4. Autorun DC Start & AC Start
In DC mode, UPS discharges till battery run out and cut off, UPS autorun when
AC recover.
5. Low Battery shutdown
When the battery is about to be exhausted, UPS will shut down automatically to
protect battery's life.
6. Turn Off UPS
1. AC Normal UPS will cut off the output and goes to AC standby mode by
pressing the switch.
2. Backup Press the switch, the UPS will be turned off after a long beep.
7. Manual Self-testing
User need to check the UPS ready for operation, Press the botton two time quickly
then UPS self test, UPS transfer AC to Backup and Backup to AC.

TROUBLE SHOOTING

The trouble shooting chart covers most of the difficulties that you may encounter
under normal working conditions. If the UPS fails to operate properly, please review
the following steps before calling the service center.
1. Is the UPS plugged into a correct working outlet?
2. Is the line voltage within the rating specified?
3. Is the Fuse or Breaker / Circuit Protector on back panal open?
4. UPS has used long time > 2 Year that is short backup time or fault.
Please submit the following information when you call for service.
1. Model No. & Serial No.
2. Date of problem.
3. Full desciption of problem UPS.
PT1050P PT1200P PT1500P
220 Vac -34%,+32% (145-290 Vac)
220 Vac +10% (198-242 Vac)
220 Vac +3% (213.4-226.6 Vac)
12V 7.5Ah x 2 12V 9.4Ah
5-30min (Depened on Load)
Batt. Cap.90% in 3-6 Hours
2-4msec
/ 160 Joules in 2 ms
s
µ
Tel / Fax / ADSL / RJ11 / RJ45
° C / RH 0-90% Non condensing
110x340x265
6.5 11.5 11.5 12.5
TROUBLE SHOOTING CHART
UPS is not connecting
to AC and overloaded
The input Fuse is burn
UPS can not be turned
or Breaker is off
ON
AC Input voltage is too
low
The UPS is failure
Non Input voltage with UPS suddenly turns to
Battery mode in spite of
1 beep every 8 seconds
utility line present
Backup time less than
LCD Battery flashing
1 minute (low battery)
continuous with a beep
every 1 second
Battery problem
Use more load over
Battery is not fully
charged
Back-up time less than
specified
Use UPS > 2 year
Charging unit fault
Front Panel
1. Input Voltage & Frequency
2. Output Voltage
3. Battery Percentage
4. Load Percentage
5. AC Mode
Rear Panel
Risk of electrical shock.
Do not remove cover.
No user serviceable part Inside.
Refer servicing to qualified person
Refer manual for environmental.
5
CAUTION
!
Risk of electrical shock.
Do not remove cover.
No user serviceable part Inside.
Refer servicing to qualified person
Refer manual for environmental.
PT650P / PT800P PT1050P / PT1200P / PT1500P
Please connect to AC
and reduce the load
Replace the Fuse or Reset
the breaker, remove some
load and check if the load
is short-circuit or faulty
Please check the AC
Input Voltage
Please send to the
agency to repair
Save the data promptly
and Shut down the
operating system
Close load and recharge
immediately
Replace the new battery
Recharge the battery for
atleast 12 hours and
retest the backup time
Replace the new battery
Please send to the
agency to repair
6. Battery Mode
7. Auto Mode
8. Silence Alarm
9. FAN
5
CAUTION
! Serial :
1. AC Input
2. Auto Reset CB
3. Outlets
4. USB Port
5. Tel / Fax Surge
