- Page 1 73478 www.fisher-price.com Please keep this instruction sheet for future reference, as it contains important information. Requires four “AA” (LR6) alkaline batteries (not included). Adult assembly is required. Tool required for battery installation: Phillips screwdriver (not included).
- Page 2 Mattel East Asia Ltd, Room 1106, South Tower, World Finance Centre, Harbour City, Tsimshatsui, HK, China. Fisher-Price, Inc., a subsidiary of Mattel, Inc., East Aurora, NY 14052 U.S.A. ©2007 Mattel, Inc. All Rights Reserved. ® and ™ designate U.S. trademarks of Mattel, Inc.

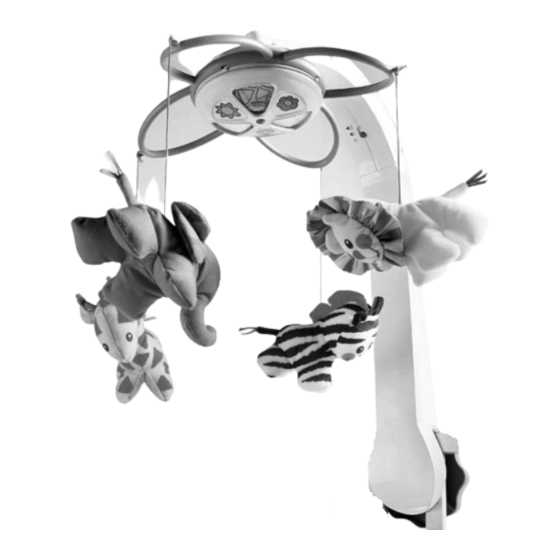

- Page 3 Parts CAUTION This product contains small parts in its unassembled state. Adult assembly is required. Clamp Upper Arm Canopy with Soft Toys Lower Arm #6 x " Screw Shown Actual Size Note: Tighten and loosen the screw with a Phillips screwdriver. Do not over-tighten screw.
- Page 4 Battery Installation Battery Safety Information 1.5V x 4 “AA” (LR6) In exceptional circumstances, batteries may leak fluids that can cause a chemical burn injury or ruin your toy. To avoid battery leakage: • Do not mix old and new batteries or batteries of different types: alkaline, standard (carbon-zinc) or rechargeable (nickel-cadmium).
- Page 5 Assembly Color Wheel Upper Arm Color Wheel Canopy Canopy Canopy Slots Color Wheel • Position the canopy so that it curves up. Tabs • Slide the canopy onto the upper arm all the way to the color wheel as shown. •...
- Page 6 Attaching the Mobile to a Crib Upper Arm • Fit the slot in the upper arm onto the tab on Slot the lower arm. Press firmly to “snap” and join the two parts. • To be sure these parts are secure, try to pull Lower Arm the upper and lower arms apart.
- Page 7 Music Switch • Locate the music switch on the upper arm. • Slide the switch to Jungle Style Music Traditional Lullabies to turn music off. • Locate the power/volume switch on the mobile upper arm. • The switch has three positions: off on with low volume and on with high volume...
- Page 8 Care FCC Statement United States Only • Surface wash only. Wipe with a clean cloth dampened with a mild soap and This equipment has been tested and water solution. found to comply with the limits for a Class B digital device, pursuant to Part 15 of the •...
