- Page 1 Seagull #SYNC2 User Manual Product: Seagull #SYNC2 Released: 2019-03-08...
- Page 2 CONTENTS GENERAL INFORMATION ....................3 FLIGHT CONTROLLER INTEGRATION ..................4 MISSION PLANNER ............................4 ............................4 ROUND ONTROL #MAP-X2 INTEGRATION ....................5 TROUBLESHOOTING ......................5 TECHNICAL SPECIFICATIONS ....................5 © 2019 Seagull UAV All Rights Reserved.

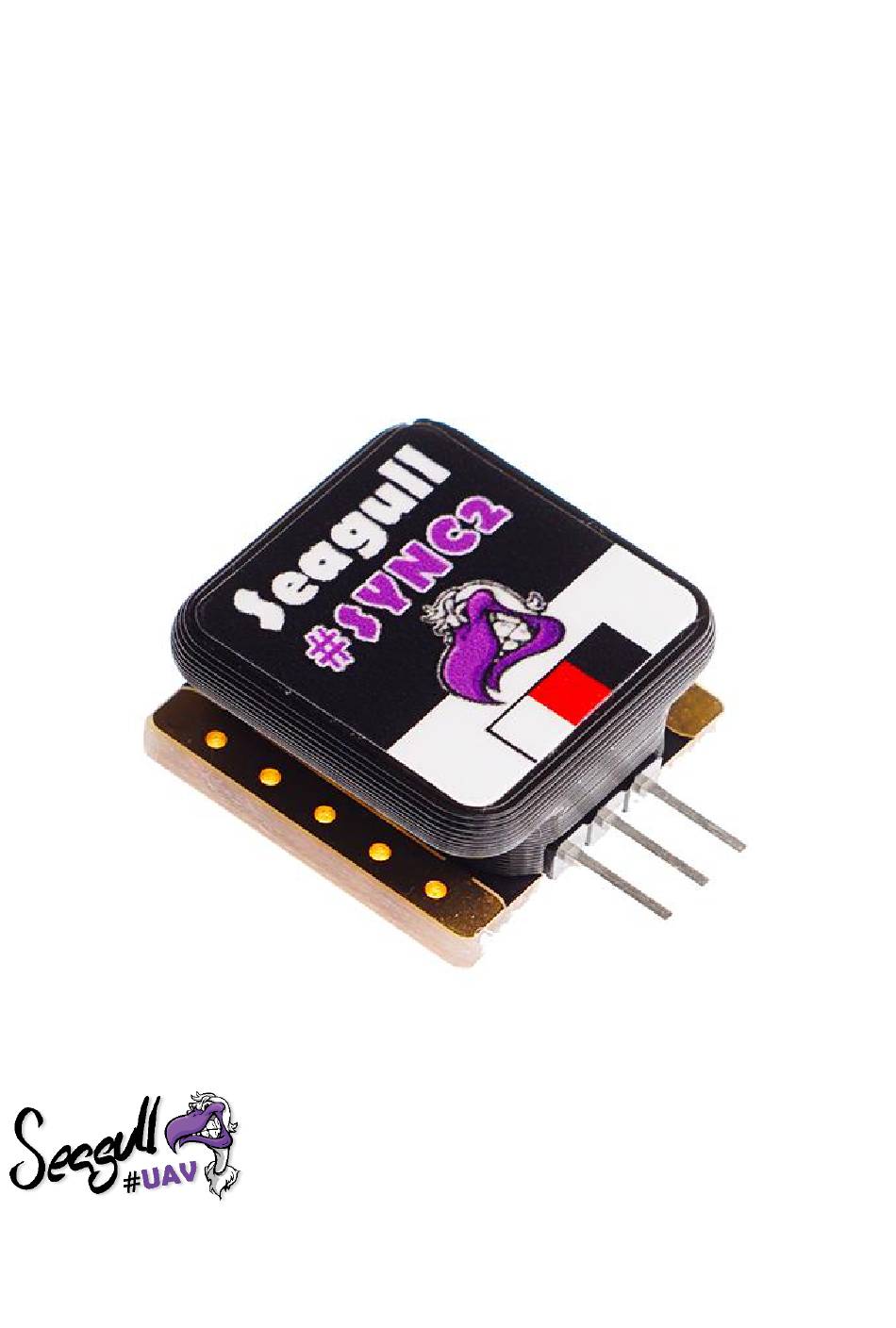

- Page 3 GENERAL INFORMATION *** Please read this manual thoroughly before connecting and configuring Seagull #SYNC2 *** Seagull #SYNC2 is a universal camera hot shoe adapter which is designed for trigger event feedback to the Flight Controllers and other logging products. #SYNC2 is a perfect solution to improve overall precision and workflow within mapping industry. By using #SYNC2 will lead to more accurate coordinates of triggered photos for georeferencing, as well as one-to-one ratio between photos and coordinates.
- Page 4 FLIGHT CONTROLLER INTEGRATION MISSION PLANNER Implementing #SYNC2 via on an ArduPilot based Flight Controller could not be easier, simply follow the below steps as shown in the image and you are ready to go! QGroundControl To integrate #SYNC2 with a platform that runs Ardupilot firmware stack on the Flight Controller, simply follow the steps below as shown in the image! ©...
- Page 5 #MAP-X2 INTEGRATION Connecting #SYNC2 to #MAP-X2 could not be easier, simply follow the color coding of the cable and plug it into the #MAP-X2 SYNC port, and you are ready for precision logging! NOTE: Be sure to setup the #MAP-X2 CONFIG.txt file for utilizing hotshoe feedback in order to enable the #SYNC2 integration.
