RephiLe RephiSolo P Pack Installation Manual

Prefiltration cartridge

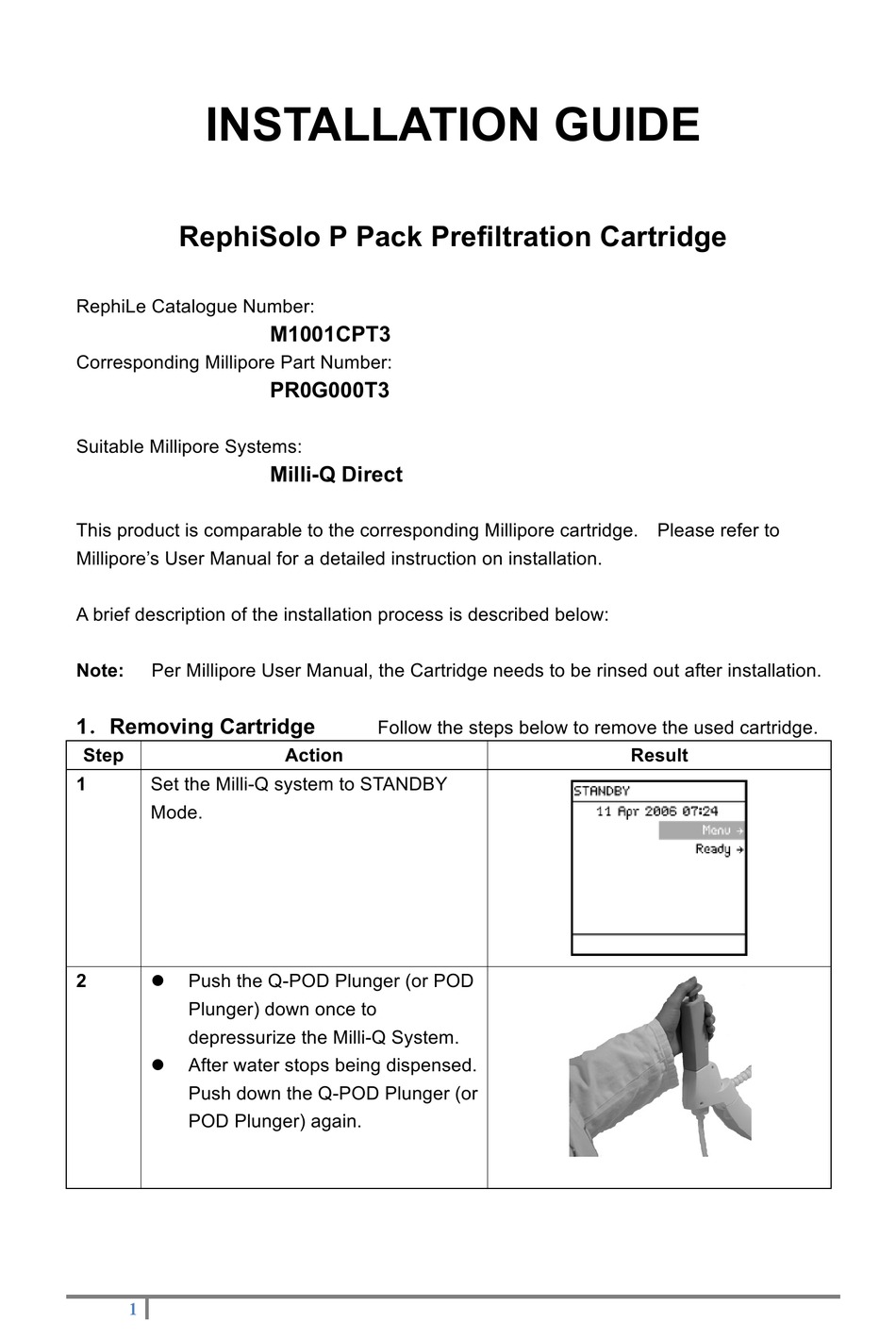

INSTALLATION GUIDE

RephiSolo P Pack Prefiltration Cartridge

RephiLe Catalogue Number:

Corresponding Millipore Part Number:

Suitable Millipore Systems:

This product is comparable to the corresponding Millipore cartridge. Please refer to

Millipore's User Manual for a detailed instruction on installation.

A brief description of the installation process is described below:

Note:

Per Millipore User Manual, the Cartridge needs to be rinsed out after installation.

1 ． Removing Cartridge

Step

Set the Milli-Q system to STANDBY

Mode.

Push the Q-POD Plunger (or POD

Plunger) down once to

depressurize the Milli-Q System.

After water stops being dispensed.

Push down the Q-POD Plunger (or

POD Plunger) again.

M1001CPT3

PR0G000T3

Milli-Q Direct

Follow the steps below to remove the used cartridge.

Action

Result

Table of Contents

Need help?

Do you have a question about the RephiSolo P Pack and is the answer not in the manual?

Page 1 INSTALLATION GUIDE RephiSolo P Pack Prefiltration Cartridge RephiLe Catalogue Number: M1001CPT3 Corresponding Millipore Part Number: PR0G000T3 Suitable Millipore Systems: Milli-Q Direct This product is comparable to the corresponding Millipore cartridge. Please refer to Millipore’s User Manual for a detailed instruction on installation.
Page 2 Open the Milli-Q System right door. Remove the used cartridge. The system indicates that the cartridge is removed. 2 ． Replacing Cartridge Adapters Step Action Result There are two original cartridge adapters on the system for the cartridge. Each adapter is fixed by two screws. Screw off the four screws with the screw driver inside the cartridge pack...
Page 3 Take out the RephiLe adapters from the accessory bag Slide the locks (plungers) on both adapters down to the lower position Install the two RephiLe adapters to Milli-Q system with the original screws to the original positions 3 ． Installing New Cartridge Follow the steps below to install the new cartridge.
Page 4 The display will show that a new cartridge is installed Press The system is ready for use. RephiSolo, RephiDuo and RephiQuatro are trademarks of RephiLe Bioscience, Ltd. © 2014. RephiLe Bioscience, Ltd. All rights reserved. All other trademarks are trademarks of their respective manufacturers.
