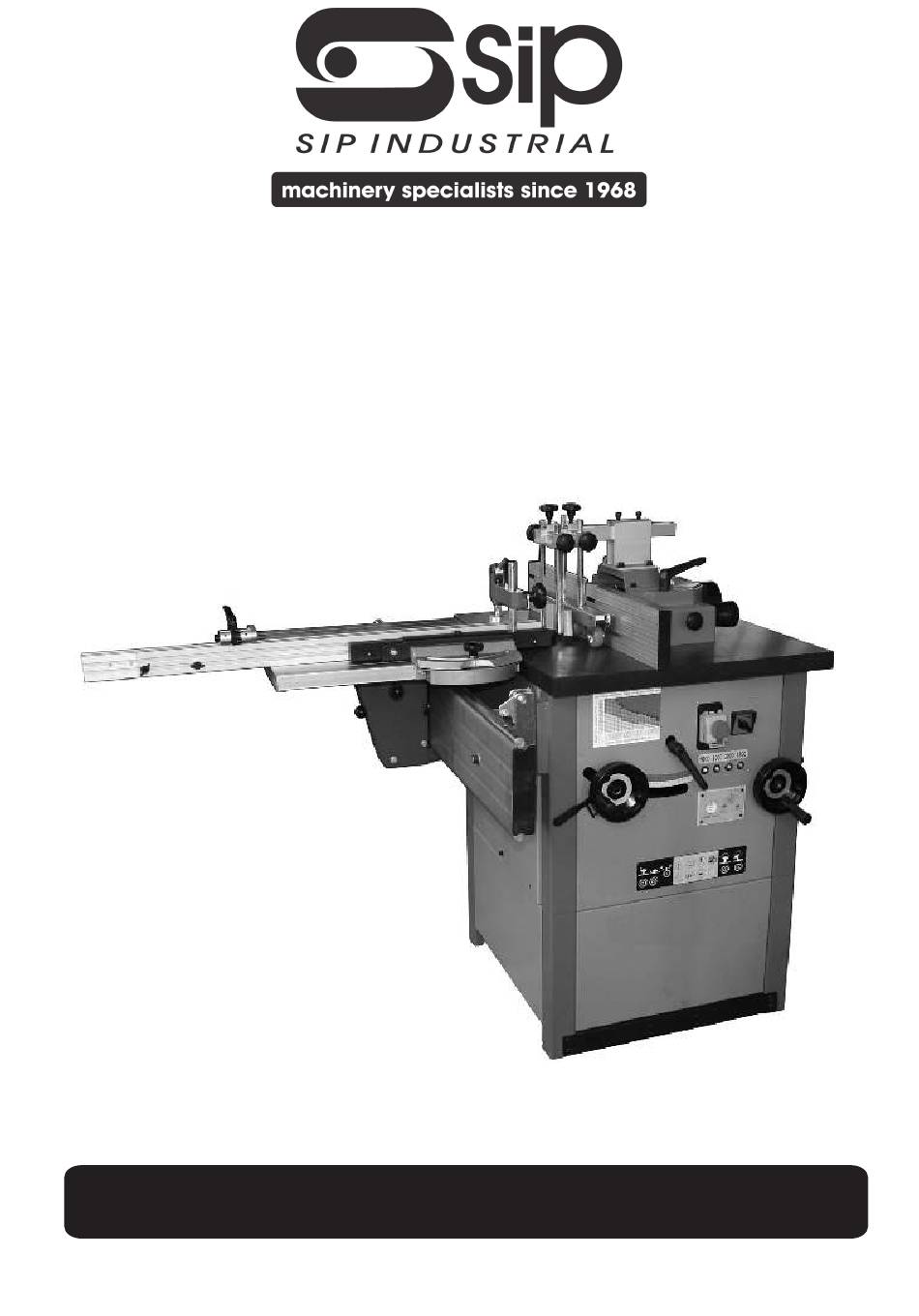

- Page 1 Spindle Moulder with Tilting Shaft 01456 Please read and fully understand the instructions in this manual before operation. Keep this manual safe for future reference.
-
Page 2: Table Of Contents
CONTENT Specification Safety Instructions Safety Instructions for Power Tools Additional Safety Instructions for Spindle Moulder Getting to Know Your Machine Assembly Unpacking Installing the Work Stand Installing the Machine Housing onto Work Stand Installing the Cutting Tools Installing the Safety Guard Installing the Feeder Ass'y Installing the Sliding Carriage (optional) Installing the Mobile Wheel Kit (optional) -
Page 3: Safety Instructions P2
17. USE RECOMMENDED ACCESSORIES. Consult SAFETY INSTRUCTIONS the owner's manual for recommended accessories. The use of improper accessories may cause risk of injury. For Your Own Safety Read Instruction Manual Before Operating This Equipment 18. CHECK DAMAGED PARTS. Before further use of the tool, a guard or other part that is damaged should Safety Instructions For Power Tools be carefully checked to determine that it will operate... - Page 4 Working Clearances 7. THE DANGER OF kickback is increased when the stock has knots, holes, or foreign objects in it. Working clearances can be thought of as the distances Warped stock should be run through a jointer before between machines and obstacles that allow safe attempting to run it through a shaper.
- Page 5 GETTING TO KNOW YOUR MACHINE Workstand Safety guard Machine housing Dust outlet Spindle height display Feeder ass'y Spindle tilt handwheel Feed roller Spindle speed display Sliding bench (optional) Reversing switch Sliding carriage (optional) Main switch(No-volt release) Spindle height lock Spindle tilt lock Spindle height adjust handwheel Table...
-
Page 6: Assembly P5
ASSEMBLY Unpacking The spindle moulder is shipped from the manufacturer in a carefully packed carton. If you discover the machine is damaged, you will need to file a freight claim. Save the containers and all packing materials If you need assistance determining, please contact our Customer Service. -
Page 7: Installing The Feeder Ass'y P6
Figure 7 Adjust the scale mount 1. Release the 2x allen bolts M6x16 and shift the scale mount to the left or to right make sure the pointer with the “0” scale then tighten the 2x allen bolts 2. Slide the guide rail (3) over the intermediate plates (2) and tighten the thumbscrews . - Page 8 3. Test and measure the parallel motion of the slide bench to the cutting bench. 4. Measure in front and back positions. 5. If necessary, release 4x allen bolts on two mounting bracket to measure the parallel motion. 6. Tighten the hexagon nuts (5). Figure 13 Mounting the sliding bench 1.
-
Page 9: Installing The Mobile Wheel Kit (Optional) P8
2. Attach the workpiece clamp (12) to the pulling rod; Figure 15 the desired height can be held with the handwheel. Figure 18 Mounting the angle stop 3. Place the workpiece on the bench. The angle stop can swing to 45 either side of 0 . 4. -
Page 10: Adjustment & Operation P9
ADJUSTMENT & OPERATION Adjust the height of Spindle Read the manual before assembly and operation. Become Perform this adjustment must switch off the power first. familiar with the machine and its operation before beginning any work. Serious personal injury may result if 1. -
Page 11: Fence Adjustment P10
Adjust the Feed Roller This machine was designed to be started and stopped with the Main Switch(No-volt Release)not the reversing switch. Perform this adjustment must switch off the power first. This machine is equipped with a FORWARD/REVERSE switch as shown in Figure 25. In many instances, you 1. -
Page 12: Wiring Diagram P11
WIRING DIAGRAM MAINTENANCE The electric motor is designed for the S6 40% operating mode. And the motor is equipped with a Always siwtch off the motor and disconeect the plug thermal protect system, therefore the motor is from the power supply prior to any maintenance and automatically switched off in the event of an overload. -
Page 13: Trouble Shooting
TROUBLE SHOOTING Before carrying out any fault service or maintenance work always: 1. Switch machine OFF 2. Unplug power cable 3. Wait for spindle moulder to come to standstill. Tr o u b l e S h o o t i n g G u i d e Problem Cause Solution... - Page 14 DIAGRAM & PARTS LIST NOTE: The above specifications and the constructions were current at the time this manual was published, but because of our policy of continuous improvement, we reserve the right to change specifications and the constructions without notice and without incurring obligations. Parts list of diagram A DESCRIPTION DESCRIPTION...
- Page 15 Parts list of diagram C DESCRIPTION DESCRIPTION Swivel, turnion C-57 Lock nut M10 Spring washer 10mm C-58 Motor Allen bolt M10x30 C-59 Flat washer 12mm Support, swivel turnion C-60 Spring washer 12mm Hex head bolt M10x30 C-61 Allen bolt M12x30 Allen bolt M10x40 C-62 Thread, joint...
- Page 16 Plastic block D-23 Spring D-47 Mounting plate, micro switch D-24 Scale Parts list of diagram E (optional SIP item no.: 01457) DESCRIPTION DESCRIPTION Allen screw M8x20 E-15 Wing nut M8 Flat washer 8mm E-16 Guide carriage -left Flat washer 8mm...
- Page 17 Parts list of diagram F (optional SIP item no.: 01457) DESCRIPTION DESCRIPTION Flower handle F-44 U' shape steel plate Workpiece clamp F-45 Cap nut M8 Circle ring F-46 Handle F-47 Flat washer 8mm F-48 Nut M5 Lever F-49 Pan head screw M5x20mm...
- Page 18 Diagram A...
- Page 19 Diagram B...
- Page 20 Diagram C...
- Page 21 Diagram D...
- Page 22 Diagram E...
- Page 23 Diagram F...
- Page 24 Parts list of diagram G (optional SIP item no.: 06920) DESCRIPTION DESCRIPTION Flat washer 16mm G-11 Rear castor frame Castor G-12 Hex head screw M10x20 Roll pin 4 22 G-13 Lever, Wheel kit Fork, castor G-14 Special thread Allen bolt M12x50...
- Page 25 SHEPSHED LOUGHBOROUGH LEICESTERSHIRE LE12 9NH Declare that the The Spindle Moulder ( Model MX5110T)SIP Pt No: 01456 Complies with the following EEC Directives their supporting Statutory Instruments and the relevant standard where applicable Machinery Directive 98/37/EC EN Standards used 73/23/EEC...
- Page 26 Please dispose of packaging for the product in a responsible manner. It is suitable for recycling. Help to protect the environment, take the packaging to the local amenity tip and place into the appropriate recycling bin Never dispose of electrical equipment or batteries in with your domestic waste.
