SIP 01944 Product Manual

Bench morticer with sliding table
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
SIP Industrial Products Limited
Gelders Hall Road
Shepshed
Loughborough
Leicestershire
LE12 9NH
United Kingdom
For help or advice please
contact your distributor, or sip
directly on: Tel.: 01509 500400
Email:sales@sip-group.com or
technical@sip-group.com
www.sip-group.com

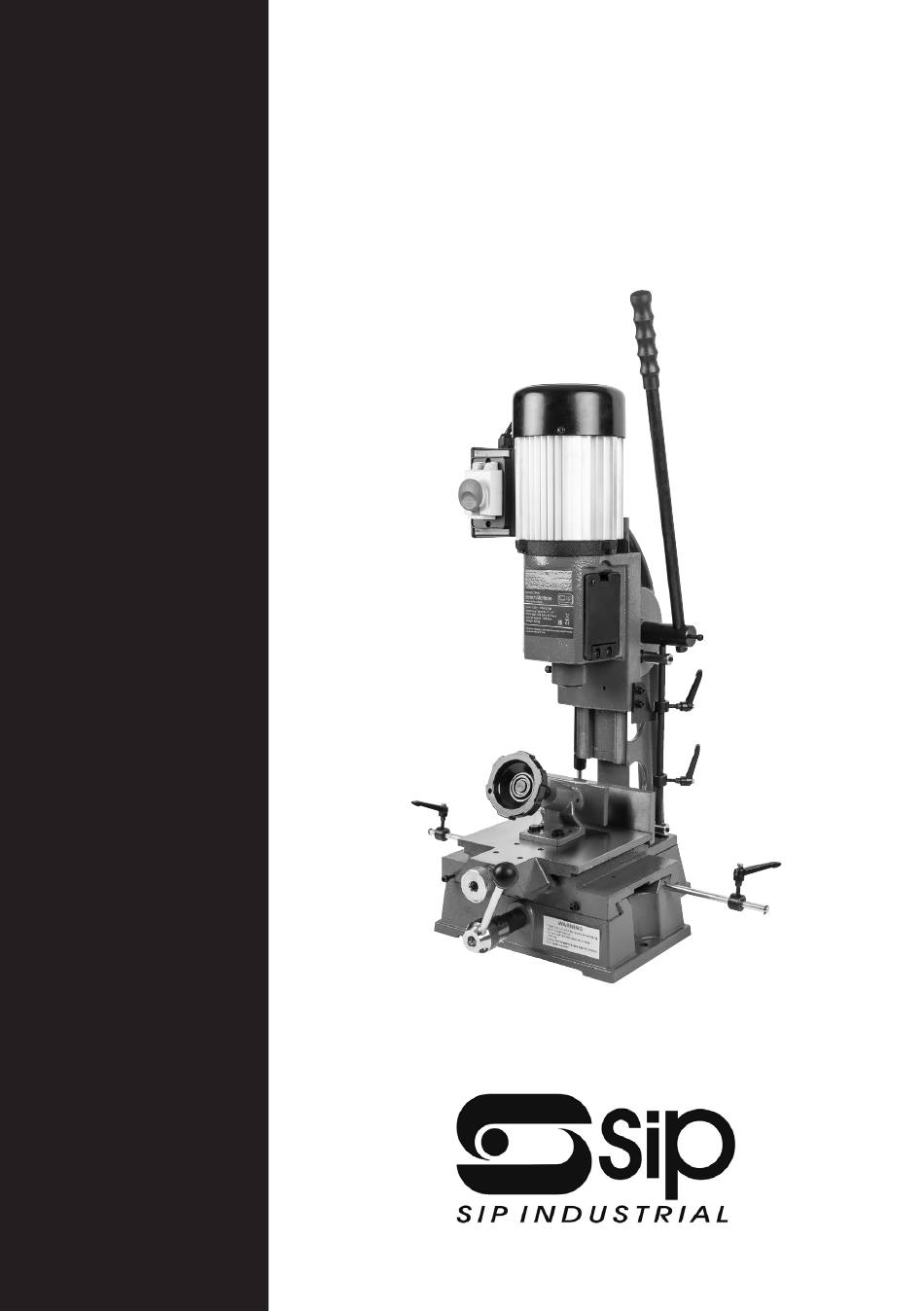

Bench Morticer with Sliding Table
01944

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 01944 and is the answer not in the manual?

Questions and answers

Related Manuals for SIP 01944

Summary of Contents for SIP 01944

  • Page 1 Bench Morticer with Sliding Table SIP Industrial Products Limited Gelders Hall Road Shepshed 01944 Loughborough Leicestershire LE12 9NH United Kingdom For help or advice please contact your distributor, or sip directly on: Tel.: 01509 500400 Email:sales@sip-group.com or technical@sip-group.com www.sip-group.com...

  • Page 3: Table Of Contents

    CONTENTS Page No. Description Safety Instructions Electrical Connections Guarantee Your item Technical Specifications Assembly Instructions Operating Instructions Maintenance Exploded Drawing Part List UK - Declaration Of Conformity EU - Declaration Of Conformity...

  • Page 4: Safety Instructions

    SAFETY INSTRUCTIONS Danger / Caution: This picture indicates risk of personal injury and/ or the possibility of damage. Warning: This picture indicates risk of electrical injury or damage! Note: This picture indicates supplementary information. Important: Please read the following instructions carefully, failure to do so could lead to serious personal injury and / or damage to the item.
  • Page 5 SAFETY INSTRUCTIONS TOOL. Learn the tool's application and limitations as well as the specific hazards peculiar to it. • KEEP GUARDS IN PLACE and in working order. • ALWAYS WEAR EYE PROTECTION. Wear safety glasses. Everyday eyeglasses only have impact resistant lenses; they are not safety glasses. Also use face or dust mask if cutting operation is dusty.
  • Page 6 SAFETY INSTRUCTIONS conditions that may affect its operation. A guard or other part that is damaged should be properly replaced. • DIRECTION OF FEED. Feed work Into a blade or cutter against the direction of rotation of the blade or cutter only. •...
  • Page 7 Replace missing, damaged, or failed parts before resuming operation. • THE USE of attachments and accessories not recommended by SIP may result in the risk of injuries. • TURN THE MACHINE "OFF" AND DISCONNECT THE MACHINE from the power source before installing or refitting accessories, before adjusting or changing setups, or when making repairs.

  • Page 8: Electrical Connections

    ELECTRICAL CONNECTIONS WARNING: Read these electrical safety instructions thoroughly before connecting the product to the mains supply. Connect the mains lead to a standard, 230 Volt (50Hz) electrical supply through an approved 13 amp plug, or a suitably fused isolator switch. If the plug has to be changed because it is not suitable for your socket, or because of damage, it must be removed and a replacement fitted, following the wiring instructions shown below.
  • Page 9 ELECTRICAL CONNECTIONS NOTE: Always make sure the mains supply is of the correct voltage and the correct fuse protection is used. In the event of replacing the fuse always replace the fuse with the same value as the original. WARNING: Improper use of extension leads may cause inefficient operation of the item which can result in overheating and motor damage.

  • Page 10: Guarantee

    GUARANTEE This item is covered by a 24 month parts and labour warranty covering failure due to manufacturers defects. This does not cover failure due to misuse or operating the item outside the scope of this manual - any claims deemed to be outside the scope of the warranty may be subject to charges Including, but not limited to parts, labour and carriage costs, failure to regularly clean your item will shorten its working life and reduce performance.

  • Page 11: Your Item

    YOUR ITEM Ref. Description Ref. Description L - R Table adjustment handle Chuck access cover Front - Back Table adjustment knob Depth stop guide Fence clamp knob Fixed fence Chisel housing Table NVR Switch Table stop Operating handle Base Motor...

  • Page 12: Technical Specifications

    TECHNICAL SPECIFICATION Model No. 01944 Power 230 V - 50 Hz / 370 W Morticing Capacity 1/4" - 5/8" (6 - 16 mm) Table Size 180 mm x 157 mm Spindle Speed 1400 rpm Chisel Stroke 130 mm Table Movement 100 mm L to R / 40 mm Back to Front Max.

  • Page 13: Assembly Instructions

    ASSEMBLY INSTRUCTIONS Danger / Caution: Do not connect the machine to the power supply until the machine is completely assembled and you have read and understood the entire instruction manual. NOTE: If any parts are missing, please contact customer service. HANDLE 1.
  • Page 14 ASSEMBLY INSTRUCTIONS INSTALLING CHISEL & DRILL BIT 1. Loosen the lock screw shown in Fig.1. 2. In order to access the chuck, undo the lock screw of the plastic cover and pull the release tab Fig.2. 3. Loosen the chuck with the chuck key provided with the machine. 4.
  • Page 15 ASSEMBLY INSTRUCTIONS Fig. 2 Fig. 1 Fig. 4 Fig. 3 FENCE The fence can be moved in or out by loosening the hand-wheel, sliding the fence to the desired position and tightening the hand-wheel. Fig. 5. Different thicknesses of material can be accommodated by positioning the moving fence in the threaded holes provided.
  • Page 16 ASSEMBLY INSTRUCTIONS Fig. 6 Fig. 5 TABLE STOPS - LEFT TO RIGHT MOVEMENT 1. Slide the stop lever assembly on to the bar. 2. Place the bar into the hole and make sure the threaded hole aligns with the hole of the bar.
  • Page 17 ASSEMBLY INSTRUCTIONS Fig. 9 Fig. 10...

  • Page 18: Operating Instructions

    OPERATING INSTRUCTIONS NOTE: Before connecting the machine to the mains supply, make sure all the screws and connections have been tightened. RAISING AND LOWERING THE HEAD 1. Pull the handle to lower the machine head. Fig.11. 2. Lift the handle to raise the machine head. 3.
  • Page 19 OPERATING INSTRUCTIONS SIDEWAYS TABLE 1. Turn the knob A for forward and backwards movement of the table. 2. Attach the lever B and turn it for Left & Right movement of the table.
  • Page 20 OPERATING INSTRUCTIONS CUTTING A MORTICE When cutting a slot mortice it is important to start from the correct end of the work piece. With the open side of the chisel set to the right - start the cut from the right hand edge - or the same if cutting from the left.

  • Page 21: Maintenance

    MAINTENANCE The Morticer requires only minor maintenance, such as dealing and lubrication and routine adjustment and sharpening of the chisel and bit. Dust the machine down after each use and, as necessary, use light applications of oil or grease to lubricate linkages, moving parts, etc. There are two adjustable dovetails on the machine.
  • Page 22 MAINTENANCE...

  • Page 23: Exploded Drawing

    EXPLODED DRAWING...

  • Page 24: Part List

    PART LIST Part No. Description Part No. Description Handle Lead Screw Motor Switch Box Lead Nut Screw Table Gear Shaft Clamp Plate Screw Screw Screw Drift Handle Shaft Setting Collar Screw Guide Column Screw Screw Localizer Screw Screw Rack Cover Sliding Plate Gear Casing Washer...
  • Page 25 PART LIST Screw Rack Screw Screw Knob Screw Screw Power Cord Lead Screw Screw Washer Angle block Connecting Bend Closing ring Knob Screw...

  • Page 26: Uk - Declaration Of Conformity

    2014/30/EU - EMC Directive 2011/65/EU - RoHS Directive And the relevant harmonised standard(s), including BS EN 61029-1:2009+A11:2010 BS EN 55014-1:2006+A1:2009+A2:2011 BS EN 55014-2:1997+A1:2001+A2:2008 BS EN 61000-3-2:2006+A1:2009+A2:2009 BS EN 61000-3-3:2008 Signed: Mr P. Ippaso - Managing Director - SIP (Industrial Products) Ltd Date: 04/10/2021...

  • Page 27: Eu - Declaration Of Conformity

    2006/42/EC - Machinery Directive 2014/108/EU - EMC Directive 2011/65/EU - RoHS Directive And the relevant harmonised standard(s), including EN 61029-1:2009+A11:2010 EN 55014-1:2006+A1:2009+A2:2011 EN 55014-2:1997+A1:2001+A2:2008 EN 61000-3-2:2006+A1:2009+A2:2009 EN 61000-3-3:2008 Signed: Mr P. Ippaso - Managing Director - SIP (Industrial Products) Ltd Date: 04/10/2021...
  • Page 28 FOR HELP OR ADVICE ON THIS PRODUCT PLEASE CONTACT YOUR DISTRIBUTOR, OR SIP Please dispose of packaging for the product in a DIRECTLY ON: responsible manner. It is suitable for recycling. Help TEL: 01509 500400 to protect the environment, take the packaging to EMAIL: sales@sip-group.com or...
