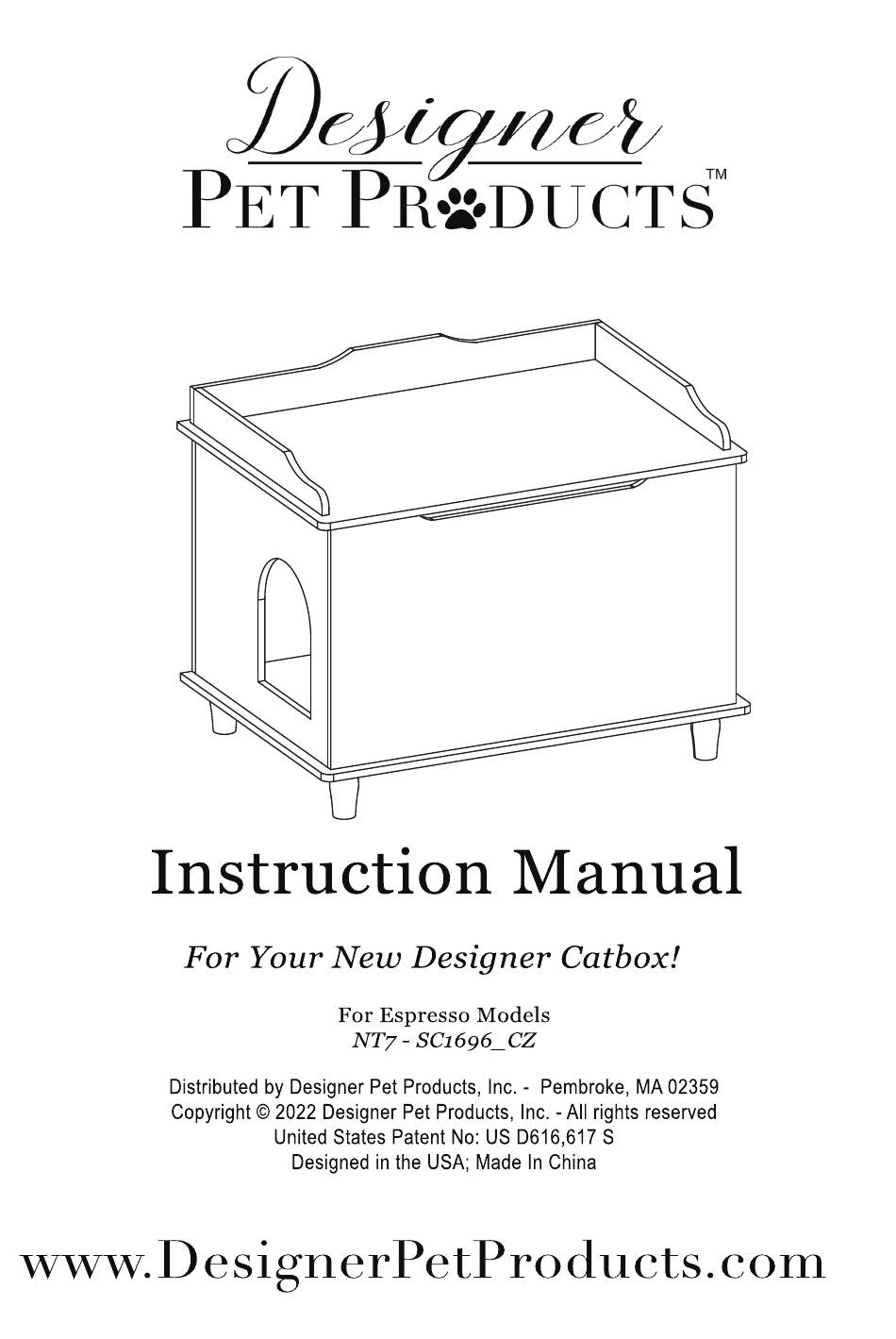

Summary of Contents for Designer Pet Products NT17 SC1696 CZ
- Page 3 1 x1 2 x1 3 x1 4 x1 5 x1 6 x1 7 x2 8 x1 9 x1 10 x4 (3.5x12mm) Cx18 Dx16 (+2 extra) (+2 extra) (+2 extra) (+2 extra) (+2 extra) (+2 extra) (+1 extra) (+1 extra) (3x12mm) (5x10mm) (+2 extra) (+1 extra) (+1 extra)
- Page 4 Instructions for Setup Step 1 Connect the top edging pieces by using C pegs and D screws. C x 4 D x 2 Step 2 Attach the top edging pieces to the top piece. Note that the top piece and the bottom piece look similar.
- Page 5 Instructions for Setup Step 4 Option 2 Option 1 Choose which side you would like the entrance hole to be on. Attach side panels using locking screw B. Ensure that the locking screw’s hooks are open to ensure that it will lock around the post.
- Page 6 Instructions for Setup Step 7 Install the bottom piece to the box using the D screws. Note: the two front corners have rounded edges,the back do not. D x 8 Step 8 Install the feet by screwing them into the bottom piece.
- Page 7 Instructions for Setup Step 10 G x 2 H x 8 Step 11 M x 2...
- Page 8 Step 12 Angle the interior panel to place it inside the catbox and position it in between the holes for the pegs. Step 13 Insert the J pegs into the 8 spots on the inside of the box. J x 8 catbox.
