BOMBAY 5950443 Manual

Granddaughter clock

5950443

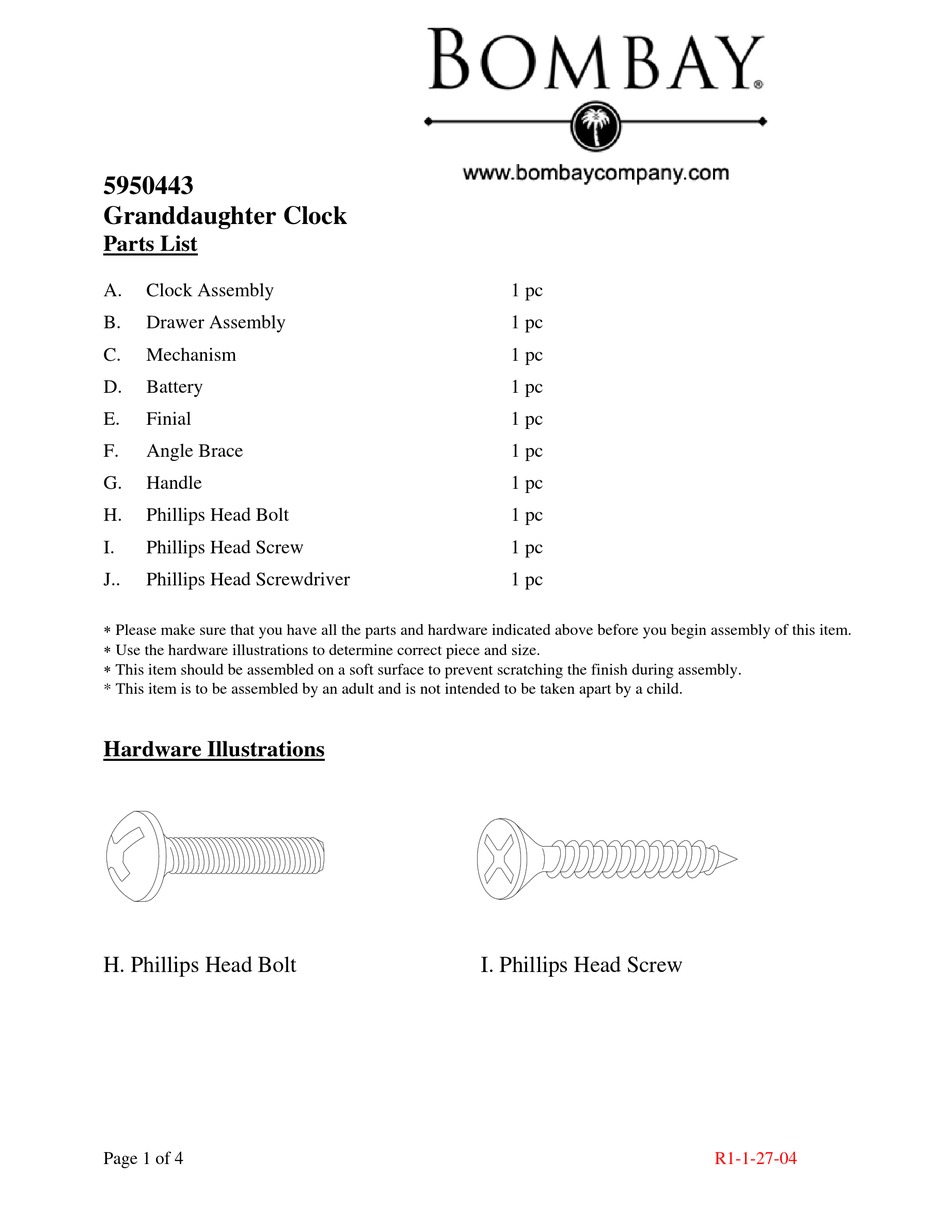

Granddaughter Clock

Parts List

Clock Assembly

Drawer Assembly

Mechanism

Battery

Finial

Angle Brace

Handle

Phillips Head Bolt

Phillips Head Screw

J..

Phillips Head Screwdriver

∗ Please make sure that you have all the parts and hardware indicated above before you begin assembly of this item.

∗ Use the hardware illustrations to determine correct piece and size.

∗ This item should be assembled on a soft surface to prevent scratching the finish during assembly.

* This item is to be assembled by an adult and is not intended to be taken apart by a child.

Hardware Illustrations

H. Phillips Head Bolt

Page 1 of 4

1 pc

I. Phillips Head Screw

R1-1-27-04

Table of Contents

Do you have a question about the 5950443 and is the answer not in the manual?

Page 1 5950443 Granddaughter Clock Parts List Clock Assembly 1 pc Drawer Assembly 1 pc Mechanism 1 pc Battery 1 pc Finial 1 pc Angle Brace 1 pc Handle 1 pc Phillips Head Bolt 1 pc Phillips Head Screw 1 pc Phillips Head Screwdriver 1 pc ∗...
Page 2 5950443 Granddaughter Clock Attach Finial, Angle Brace & Handle Parts required Clock Assembly 1 pc Handle 1 pc Drawer Assembly 1 pc Phillips Head Bolt 1 pc Finial 1 pc Phillips Head Screw 1 pc Angle Brace 1 pc Phillips Head Screwdriver 1 pc 1.
Page 3 5950443 Granddaughter Clock Illustration # 1 Install Battery Parts required Clock Assembly 1 pc Battery 1 pc Mechanism 1 pc 4. Install Battery (D) Remove the round back panel of Clock Assembly (A. Insert the Battery (D) into the Mechanism (C). Use the button on the back of the Mechanism (C) to adjust the time. See Illustration #2.
Page 4 5950443 Granddaughter Clock Illustration # 2 Attach the Angle Brace to the Wall 5. Attach Angle Brace to wall Place clock in the desired location against the wall. Mark the location for the Angle Brace. Attach the Angle Brace to the wall. See note below for attachment hardware.
