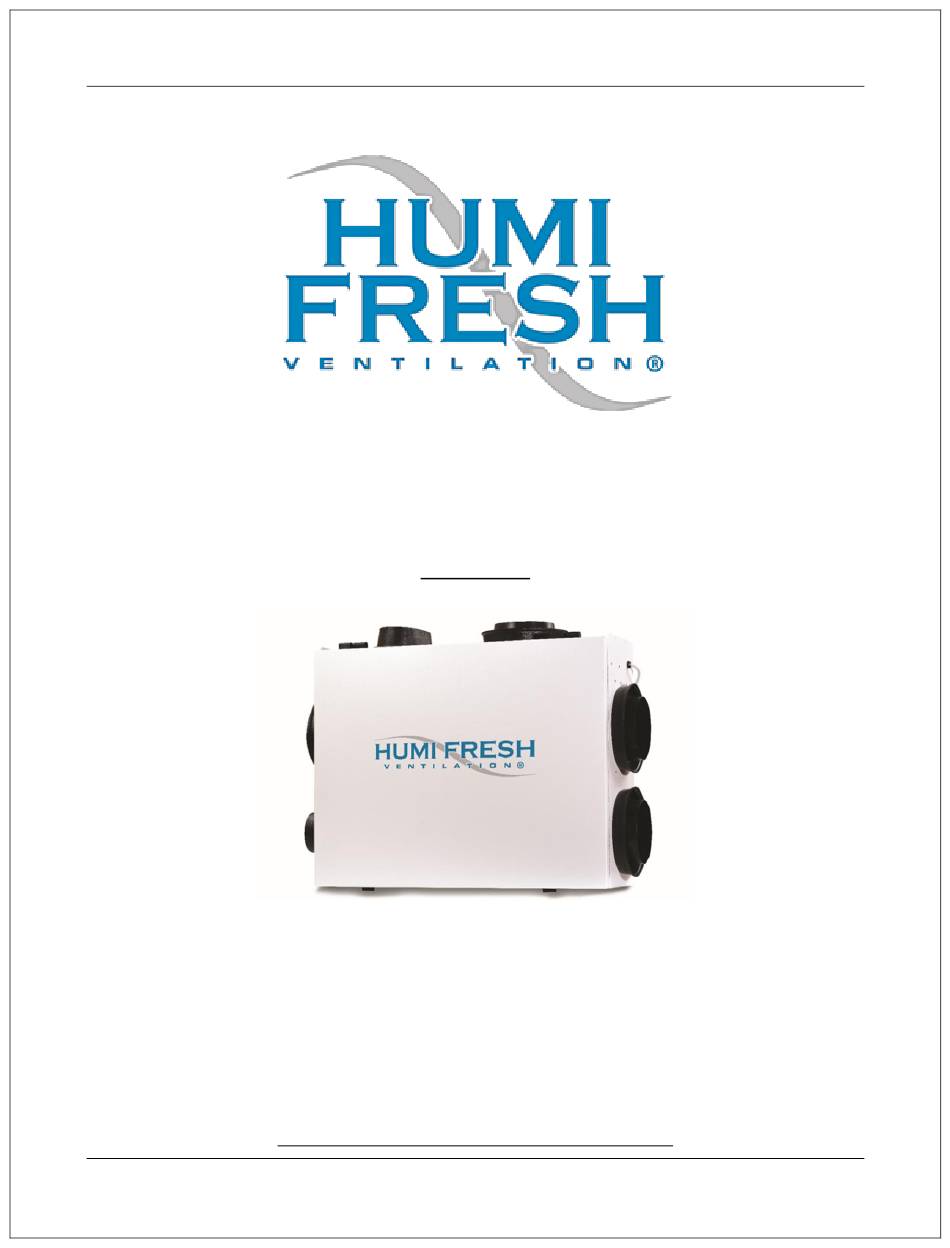

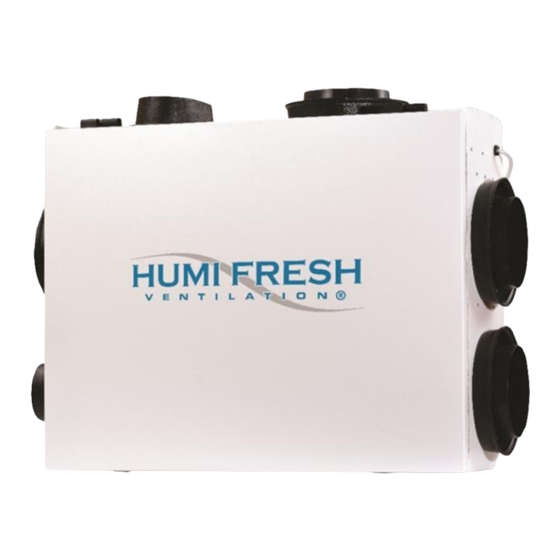

- Page 1 April 2023 HumiFresh® Hybrid 200 Rev. 1.0 En Installation & Owner’s Manual English Manufactured by: ClairiTech Innovations Inc. 1095 Ohio Rd. Boudreau-Ouest, NB Canada E4P 6N4 READ AND SAVE THESE INSTRUCTIONS...
-
Page 2: Table Of Contents
Hybrid 200 Table of Contents 1.0..........................2 NTRODUCTION 2.0....................... 3 ERVICE AND ARRANTY 2.1. F ......................3 USTOMER SSISTANCE 2.2. C ....................4 ONSUMER IMITED ARRANTY 2.3. H -200 L : ....................5 YBRID IMITED ARRANTY 3.0..........................6 PECIFICATIONS 4.0. -
Page 3: Introduction
Hybrid 200 1.0. Introduction Congratulation on the purchase of your new Hybrid 200. The HumiFresh® Hybrid 200 is a complete all-season, all-climate ventilation system for your whole home. From basement to bedroom, and everywhere in between, our only dual-core air exchange system available on the market covers all your needs. -
Page 4: Service And Warranty
Hybrid 200 2.0. Service and Warranty 2.1. For Customer Assistance To help in answering questions if you call for service or warranty purposes, please record below the model and serial number located on the side of the unit. Product Name: Model #: Date of Manufacturing: Date of Purchase:... -
Page 5: Consumer Limited Warranty
2.2. Consumer Limited Warranty ClairiTech Innovations Inc. warrants to the first consumer that this product, when shipped in its original container, will be free from defective workmanship and materials, and agrees that it will, at its discretion, either repair the defect or replace the defective Product or part thereof with a new or remanufactured equivalent at no charge to the purchaser for the period(s) set forth below. -
Page 6: Hybrid-200 Limited Warranty
ClairiTech Innovations Inc. offers a one-year limited functionality warranty for Hybrid-200 system. Liability Limitation: ClairiTech Innovations inc. cannot be held responsible for any changes, modifications, or updates made by third parties (platforms, operators, etc.) which could alter the proper functioning of the system and the Hybrid 200 application. -
Page 7: Specifications
Hybrid 200 3.0. Specifications Intake Basement Exhaust Outside Fresh air from outside House Intake Processed air Side from the house Front Dimensions 28” W x 23” H x 8” D Weight ……… Access Latched and hinged front access to filters and cores Duct connecting Six insulating double collars with 6”... -
Page 8: How It Works
Hybrid 200 4.0. How It Works 1. Fresh outdoor air enters the unit and flows through the ERV core. 2. Stale air and toxins from upper levels, basement, and crawl spaces enter the unit from the bottom ports. 3. In the summer, the ERV core transfers the excess humidity and temperature from the incoming air to the outgoing air. -
Page 9: Installation Scenarios
Hybrid 200 5.0. Installation Scenarios Fully Ducted System (For homes without any existing ductwork due to an existing forced-air system) This installation scenario will require a completely new duct system throughout the entire house. Stale, humid air is exhausted from the highest humidity areas of the house including the basement, bathrooms, kitchen, and laundry room. - Page 10 Hybrid 200 Pre-existing Ductwork (For homes with existing ductwork due to an existing forced-air system.) 5.2.1. New Exhaust & Recirculation This installation scenario will require new ductwork for the exhaust and recirculation systems, and a tie-in to the existing ductwork of a forced-air system for the fresh air supply. Stale, humid air is exhausted from the highest humidity areas of the house including the basement, bathrooms, kitchen, and laundry room.
- Page 11 Hybrid 200 For this kind of installation, it is not obligatory that the forced-air system blower runs when the unit is in operation. The Hybrid 200 is powerful enough to circulate fresh air to all rooms of the house without blower assistance. Homes with more than one story require at least one exhaust vent at the highest level of the house.
- Page 12 Hybrid 200 The air handler's existing duct system removes contaminated, humid air from high humidity areas such as the basement, bathrooms, kitchen, and laundry room. This air is drawn into the 200 Hybrid's ERV and HRV exchange units through the air handler's return plenum. Fresh air from outside is also passed through the ERV and HRV exchange units, exchanging humidity and temperature with the contaminated air before being expelled from the building.
-
Page 13: Pre-Installation
Hybrid 200 6.0. Pre-Installation 6.1. Included Components Before installing your Hybrid 200 system, be sure that you have the right model and accessories. The following items should be included in the accessory box. If parts are missing, contact our customer service at US 1-888-533-1348, Can. -
Page 14: Plan The Ductwork
Hybrid 200 6.3.2. Plan the Ductwork Once the best location for hanging the Hybrid 200 was considered, it is time to begin developing a plan for your ductwork. You should take the following considerations when developing this plan: • Duct size - We recommend 8” flex duct connecting to and from the unit, tapered to 6” ductwork throughout the house for optimal flow and noise reduction. -
Page 15: Installing Exterior Hoods & Vents
Hybrid 200 Before beginning the installation, inspect the unit and the contents of the box for: • Damage - Inspect both the exterior and interior of the unit for any shipping damage to the door, latches, hinges, dampers, duct collars, filters, motor assembly, etc. •... -
Page 16: Installing Interior Ductwork & Vents
Hybrid 200 • Do not secure any ductwork to the unit itself until Section 7.4 - Connecting Ducts to the Unit. 7.2. Installing Interior Ductwork & Vents Warning Never install a stale air exhaust vent in a room where a combustion device operates, such as a gas or oil furnace, a gas water heater, or a fireplace. - Page 17 Hybrid 200 Steps: • Repeat connection steps outlined above in Exhaust System installation. Recirculation System The basement recirculation system will be the final series of vents and ductwork installed. If your basement contains multiple rooms, recirculation supply vents can be installed in the largest rooms, or in each separate room if so desired.
- Page 18 Hybrid 200 In the case of a pre-existing forced-air heating or cooling system, the Hybrid 200 will use the existing ductwork and supply vents to supply fresh air to the bedrooms and living areas. Ensure all supply vents are at least 10 feet away from all exhaust vents. Since forced-air configurations vary between suppliers and builders, it is recommended that there be at least one supply vent on each main living level of the house, as well as in the basement.
-
Page 19: Mounting The Unit
Hybrid 200 • Secure T-duct to return plenum with sheet metal screws. Seal appropriately. • Attach backdraft vent to one side of T-duct. • Attach flex duct from the supply vent of the 200 Hybrid to the other side of the T-duct. •... - Page 20 Hybrid 200 Flex Ducts: • Typically coming from interior supply, exhaust and recirculation lines. • Before connections are made to the unit itself, a T-duct must be attached to the main exhaust line, allowing the main exhaust line to be connected to both the exhaust and recirculation ports of the Hybrid 200.
- Page 21 Hybrid 200 Do not tear the vapor barrier on the insulated ducts during installation. A torn vapor barrier may create condensation within the duct. Insulated Flex Ducts: Visual Steps...
-
Page 22: Control
Hybrid 200 8.0. Control The unit is equipped with an AC/DC adapter “GST160A24-R7B”. The Hybrid 200 should be powered using the provided AC/DC power supply. If the main service door is closed, the unit will start running immediately. A safety disconnect switch cuts all power to the unit when the main service door is opened or removed. -
Page 23: Maintenance
Hybrid 200 9.0. Maintenance Warning Before performing any maintenance or servicing, always turn off and disconnect the Hybrid 200 unit from its power source. If you will not be the primary user of this unit, review with the primary user the following steps required for regular maintenance of his/her new Hybrid 200 system: Twice per year or as needed: •... - Page 24 Hybrid 200 thermostat below 18°C (65°F). Indoor air is too dry • Unit is set improperly. • Verify the mobile application if the unit is set properly. • Temporarily use a humidifier. Air coming from air supply grill • Unit is set improperly. •...
-
Page 25: Return And Exchange Policy
Failure to comply could see your request denied. Fees Unless the product is defective or the return is a direct result of a Clairitech Innovations Inc., the refund or credit does not include any shipping and handling charges shown on your packing slip or invoice;... - Page 26 Any product returned to Clairitech Innovations Inc. without the prior approval of Clairitech Innovations Inc. will be considered an unauthorized return; the customer will not receive any credit or refund for the product and Clairitech Innovations Inc. will not return the product to the customer.
- Page 27 10. For any questions regarding warranty terms please call 1-888-533-1348 Email Us NO RETURNS ARE POSSIBLE AFTER 30 DAYS FOLLOWING THE DATE OF THE BILLING DATE. CLAIRITECH INNOVATIONS SHALL NOT BE LIABLE FOR, OR ANY CHARGE OF, A CONSUMER ORDER ERROR.
