AutoMotionShade 4280P-1230 Quick Reference Manual

Motorized dual roller shade

Quick Reference Guide # 19

Motorized Dual Roller Shade (DRS) Specs, features and operation:

Each AMS motor is designed and engineered to meet the highest technical standards in the industry. It

goes through stringent testing at AMS' ISO 9001-2015 certified facilities.

All Motors are tested for over 30,000 life cycles.

508: R-1: 05/18

Date: May 2018

Table of Contents

Do you have a question about the 4280P-1230 and is the answer not in the manual?

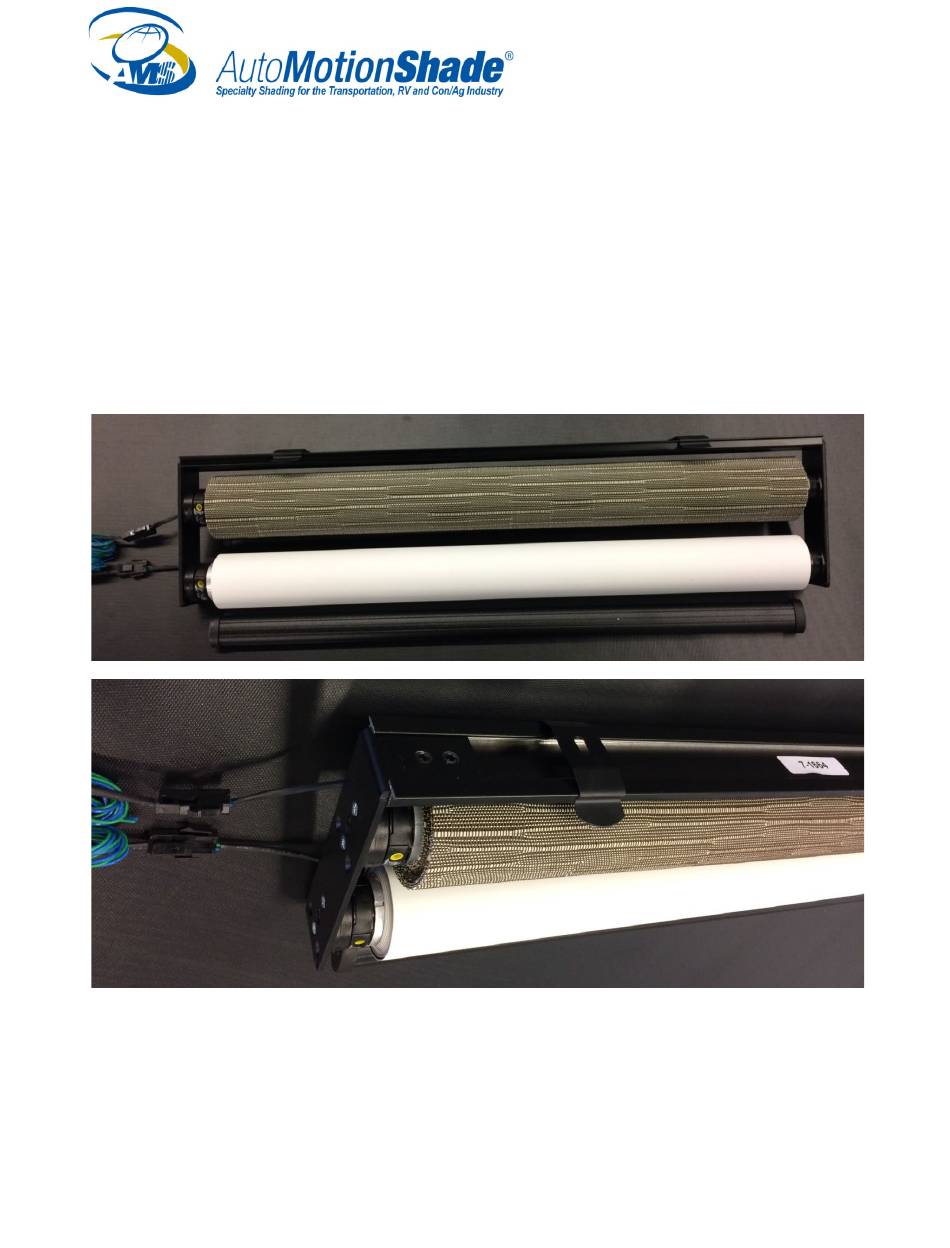

Page 1 Quick Reference Guide # 19 Motorized Dual Roller Shade (DRS) Specs, features and operation: Each AMS motor is designed and engineered to meet the highest technical standards in the industry. It goes through stringent testing at AMS’ ISO 9001-2015 certified facilities. All Motors are tested for over 30,000 life cycles.
Page 2 Push the tab on the Molex connector to disconnect wires. Never cut the wires. 508: R-1: 05/18 Date: May 2018...
Page 3 Motor Model No: 4280P-1230 (for 12VDC) Motor Model No: 4280P-2430 (for 24VDC) Motor Model No: 4285P-1230, or 4280P-1230+216P External RF module (for RF remote controlled) Motor Model No: 4285P-2430, or 4280P-2430+216P External RF module (for RF remote controlled) Motor Specs for 4280P-2430:...
Page 4 Motor features: These motors are equipped with following features: 1. Mechanical limits adjustments. In our experience, Electronic limit always were prone to noise interference with tight high power equipment surroundings and intermittent fails, but with these mechanical limits, we never had a fault with limit mechanism itself and works independent of environment noises.
