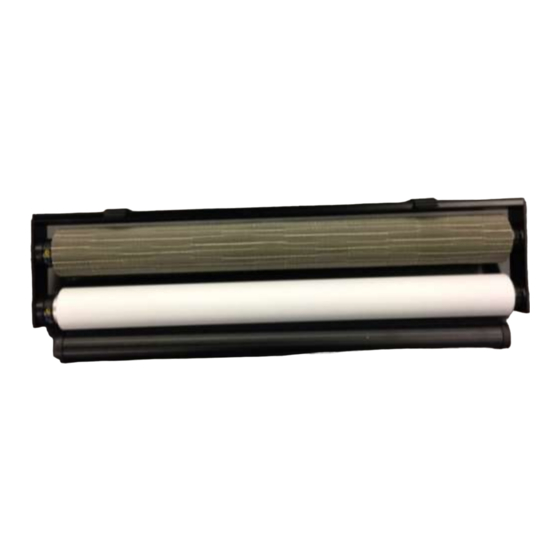

AutoMotionShade 4280 Quick Reference Manual

Motorized drs shade

Download this manual

Quick Reference Guide # 17

Removal and Replacement - Motorized DRS Shade assembly 4280(P):

This guide applies for both 1

Generation, and 2

Generation of Standard Motors.

For instruction of how to access to the shade assembly behind the valence, contact your coach

manufacturer. You have the option to remove the whole shade assembly as explained in this guide, or to

Q-ref

remove only one single roller of the shade while the railing assembly untouched, as explained in

19.

508: R-1: 01/20

Date: Jan 2020

Need help?

Do you have a question about the 4280 and is the answer not in the manual?

Page 1 Quick Reference Guide # 17 Removal and Replacement - Motorized DRS Shade assembly 4280(P): This guide applies for both 1 Generation, and 2 Generation of Standard Motors. For instruction of how to access to the shade assembly behind the valence, contact your coach manufacturer.

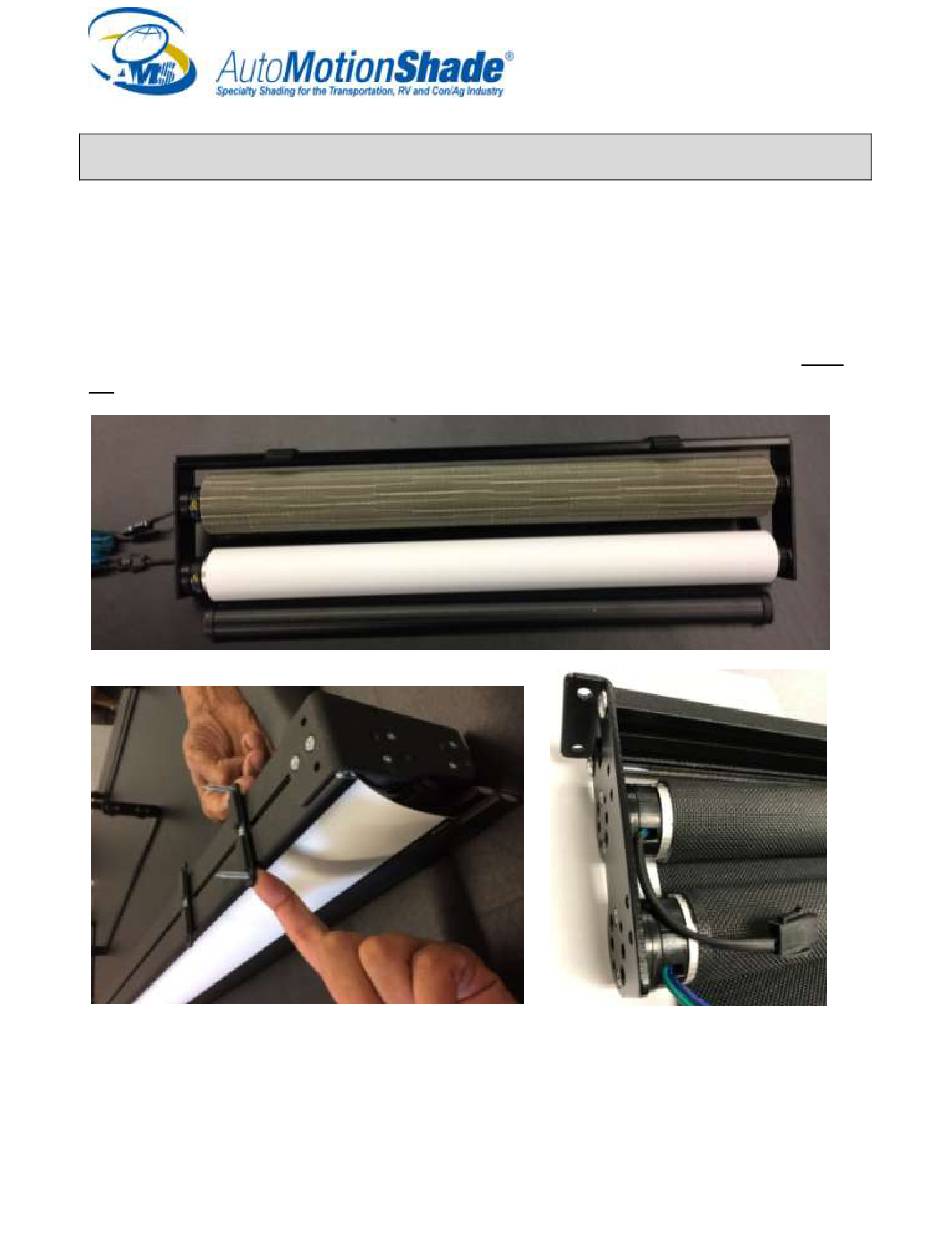

Page 2 1. Before you remove the shade, you need to disconnect the cables of the shade from the coach. To disconnect, press the tab on the Molex connector and pull to separate. See the following images: Molex Connector 508: R-1: 01/20 Date: Jan 2020...
Page 3 2. To take the whole shade assembly off the ceilinig, while holding the shade, there are 3 types of mountings. 2.1. Easy-clip mounting: Press both tabs on the Ceiling Mount Clips upward to release the shade. Ceiling Mount Clip 508: R-1: 01/20 Date: Jan 2020...
Page 4 2.2. Screws on angle bracket mounting: Remove two screws on each side of shade to the ceiling. The screws are just after the side of shade. Ceiling Mount Screws here hereClip 2.3. There is also another type of mounting which is the same type as the windshield shade Q-Ref 18 mounting.
Page 5 3. To install the shade assembly back, follow above instructions in reverse order. Q-ref 19 Note 1: If you like to replace only the Motor, using the same old shade, refer to Q-Ref 2. Note 2: After installation, to adjust the limits, go to 508: R-1: 01/20 Date: Jan 2020...
