U s e r M a n u a l
CAM-MT2
CAM-MT3
PRODUCT SPECIFICATIONS
Image Sensor: 1/3" PC 3089D
TV Lines: 550
Resolution: 728 (H) x 488 (V)
TV System: NTSC/PAL
Waterproof Rating: IP68
Viewing Angle: 160 Degrees
Parking Lines: Yes (Removable)
Image Adjustment: Yes (Mirror/Normal)
Video Output: 1.0V p-p 75ohm
Operating Voltage: 12V DC (Negative Ground)
Current Consumption: 117mA @ 13.8V
Operating Temperature: -20 Degrees C to +70 Degrees C
DISCLAIMER:
Prior to Installation
Read the manual prior to installation. Technical knowledge is necessary for installation.
Please ensure you use the correct tools to avoid damage to the vehicle or product.
Connects2 can not be held responsible for the installation of this product.
Technical Support
Connects2 want to provide a fast and suitable resolution should you encounter any
technical issues. With this in mind, when contacting Connects2, try to provide as much
Information as possible. This will speed up the process and help us to help you.
Please use our dedicated online technical support centre: support.connects2.com
www.c2vision-eu.com

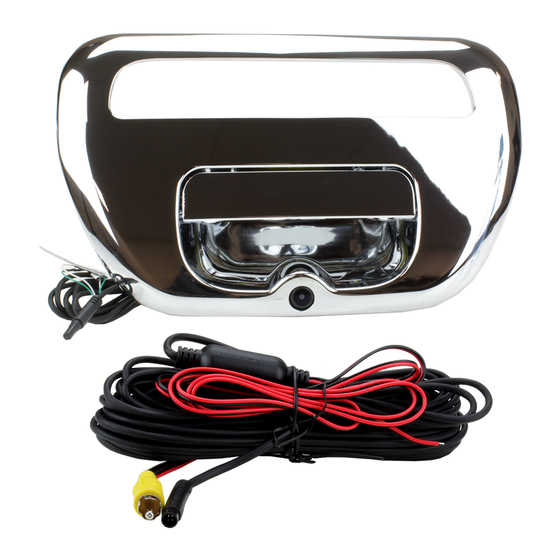

Tailgate Handle Camera
Mitisubishi L200 2008-2015
Black (MT2) / Sliver (MT3)
Advertisement
Table of Contents
Related Manuals for Connects2Vision CAM-MT2
Summary of Contents for Connects2Vision CAM-MT2
- Page 1 U s e r M a n u a l CAM-MT2 Tailgate Handle Camera Mitisubishi L200 2008-2015 CAM-MT3 Black (MT2) / Sliver (MT3) PRODUCT SPECIFICATIONS Image Sensor: 1/3” PC 3089D TV Lines: 550 Resolution: 728 (H) x 488 (V) TV System: NTSC/PAL...
- Page 2 CONTENTS Connects2Vision • Tailgate handle camera with power cable • 8m extension cable to RCA and power/ground cable INSTALLATION 1. Firstly, remove the inner panel from the tailgate and remove the handle fixing screws. Then remove the tailgate handle from the vehicle.
