U s e r M a n u a l
CAM-17
PRODUCT FEATURES:
Image Sensor: 1099 HD CCD
TV Lines: 480
Horizontal Angle: 170 Degrees
Vertical Angle: 120 Degrees
Resolution: 976 x 496
Lumen: 0.1 Lux
TV System: NTSC/PAL
Video Output: 1.0V p-p 75ohm
Operating Voltage: 12V DC (Negative Ground)
Current Consumption: 120mA @ 13.8V
Waterproof Rating: IP68
Operating Temperature: -20 Degrees C to +70 Degrees C
Parking Lines: Yes
Removable Lines: Yes
Image Adjustment: Yes (Mirror/Normal)
Enhanced Performance In Low Light: Yes
DISCLAIMER:
Prior to Installation
Read the manual prior to installation. Technical knowledge is necessary for installation.
Please ensure you use the correct tools to avoid damage to the vehicle or product.
Connects2 can not be held responsible for the installation of this product.
Technical Support
Connects2 want to provide a fast and suitable resolution should you encounter any tech-
nical issues. With this in mind, when contacting Connects2, try to provide as much Infor-
mation as possible. This will speed up the process and help us to help you.
Please use our dedicated online technical support centre: support.connects2.com
Universal Camera
Fixed Angle Mount, Drill to Fit in Horizontal Surface
Advertisement
Table of Contents
Related Manuals for Connects2Vision CAM-17
Summary of Contents for Connects2Vision CAM-17
- Page 1 U s e r M a n u a l CAM-17 Universal Camera Fixed Angle Mount, Drill to Fit in Horizontal Surface PRODUCT FEATURES: Image Sensor: 1099 HD CCD TV Lines: 480 Horizontal Angle: 170 Degrees Vertical Angle: 120 Degrees Resolution: 976 x 496 Lumen: 0.1 Lux...

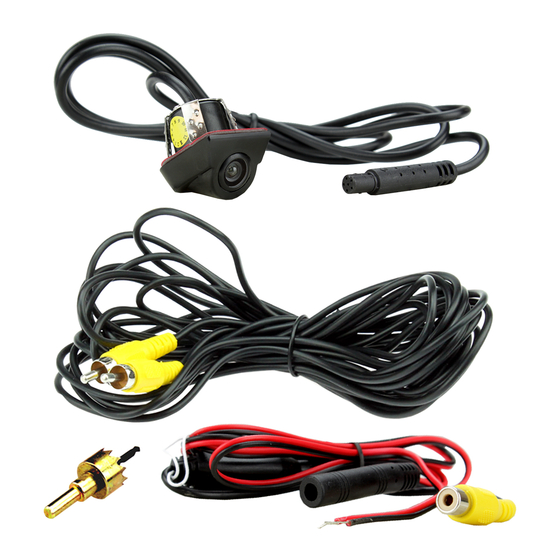

- Page 2 Connects2Vision CONTENTS - Camera with 1m cable to mini Male 6 pin connector - 1m camera connection cable with mini Female 6 pin connector and RCA Female connector - 6m Male to Male RCA extension cable - 18mm hole saw...
