VESSELVIEW MOBILE MODULE
IMPORTANT: This document guides our dealers, boatbuilders, and company service personnel in the proper installation or
service of our products. If you have not been trained in the recommended servicing or installation procedures for these or
similar Mercury Marine products, have the work performed by an authorized Mercury Marine dealer technician. Improper
installation or servicing of the Mercury product could result in damage to the product or personal injury to those installing or
operating the product. Always refer to the appropriate Mercury Marine service manual for component removal and installation
instructions.
NOTE: After completing installation, place these instructions with the product for the owner's future use.

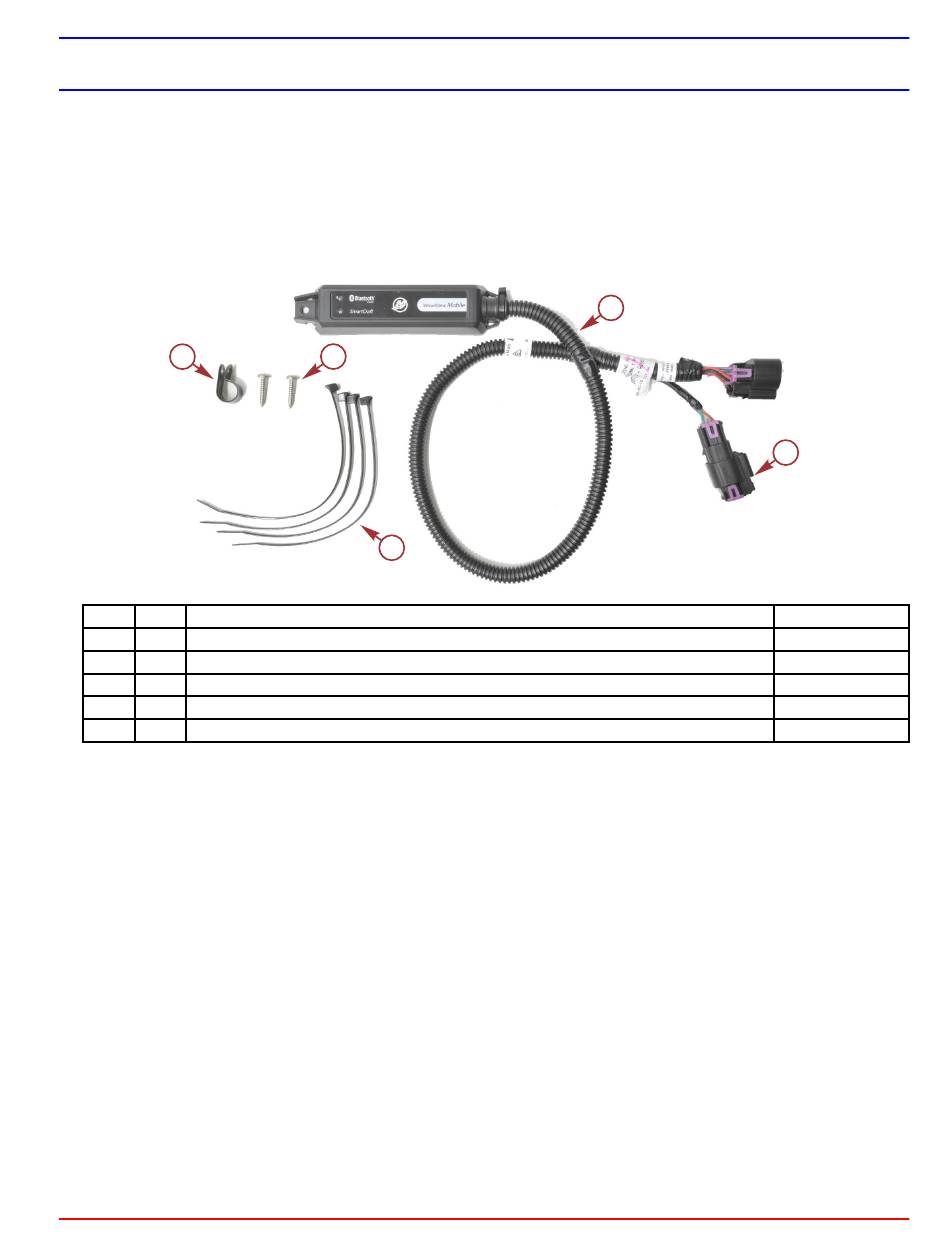

Components Contained in Kit
a
Ref.
Qty.
a
1
Cable clip
b
2
Screw
c
1

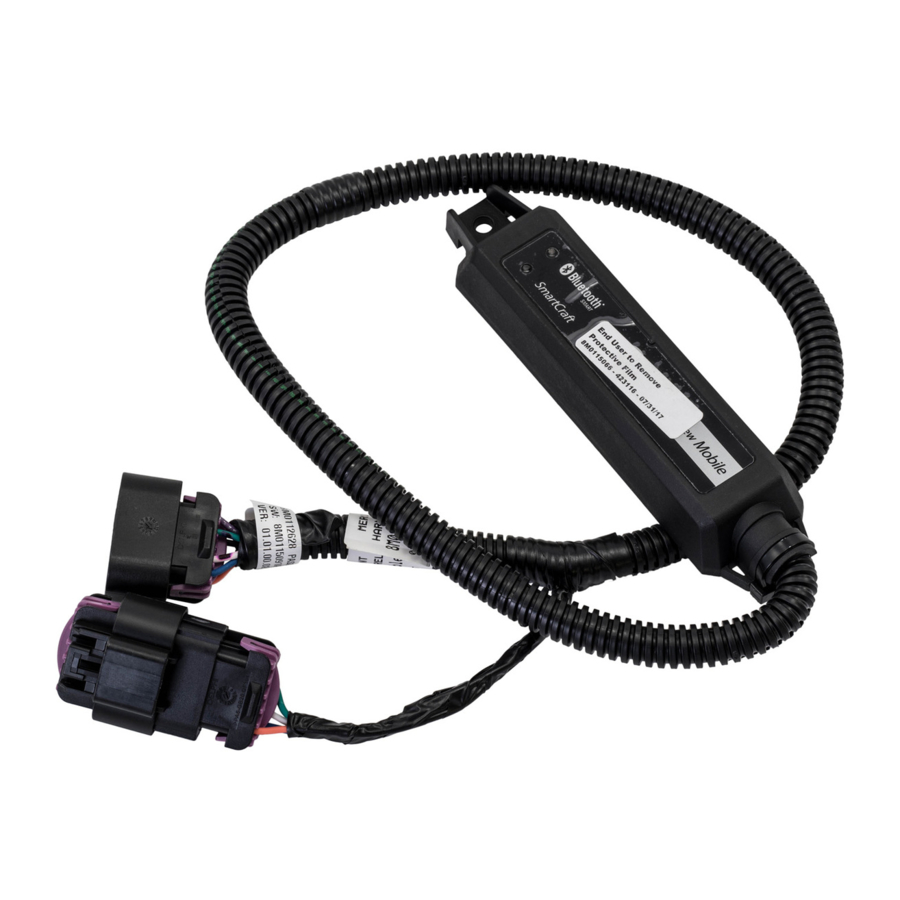

VesselView Mobile module with harness
d
1
Weather cap
e
4
Cable tie
VesselView Mobile Module Connection
Engine‑Mounted Module
NOTE: The location of the engine harness 10‑pin connector and terminator will vary depending on the engine model.
1.
Depending on the engine model and rigging configuration, the engine harness 10‑pin connector will be equipped with a
purple weather cap, a yellow terminator, or a red terminator.
90-8M0168272 eng DECEMBER 2019
b
e
Description
© 2019 Mercury Marine
c
d
62811
Part Number
23567
69013
NSS
859318T2
816311T
Page 1 / 5
Advertisement
Related Manuals for Mercury VESSELVIEW MOBILE
Summary of Contents for Mercury VESSELVIEW MOBILE
- Page 1 Mercury Marine products, have the work performed by an authorized Mercury Marine dealer technician. Improper installation or servicing of the Mercury product could result in damage to the product or personal injury to those installing or operating the product. Always refer to the appropriate Mercury Marine service manual for component removal and installation instructions.
- Page 2 Terminator Engine harness 10‑pin connector 69257 After the terminator or weather cap is removed from the engine harness, plug the VesselView Mobile harness 10‑pin connector into the engine harness 10‑pin connector. VesselView Mobile harness 10‑pin connector Engine harness 10‑pin connector...
- Page 3 62813 Helm‑Mounted Module The VesselView Mobile module can be mounted at the helm if the vessel is equipped with a junction box and open connection point. The module can also be mounted on the engine. IMPORTANT: Multiple engine applications may be equipped with more than one junction box. Always connect the VesselView Mobile module to the multiwake junction box on vessels equipped with multiple engines.
-
Page 4: Bluetooth Pairing
Select a suitable location for mounting the VesselView Mobile module and harness. Use a 3/32 drill bit to drill two pilot holes to mount the VesselView Mobile module and the harness cable clip. Install the VesselView Mobile harness 10‑pin connector into the multiwake junction box. -
Page 5: Battery Connections
NOTE: After completing installation, place these instructions with the product for the owner's future use. Products of Mercury Marine © MERCURY MARINE. All rights reserved. Reproduction in whole or in part without permission is prohibited. Alpha, Axius, Bravo One, Bravo Two, Bravo Three, Circle M with Waves Logo, GO BOLDLY, K-planes, Mariner,...
