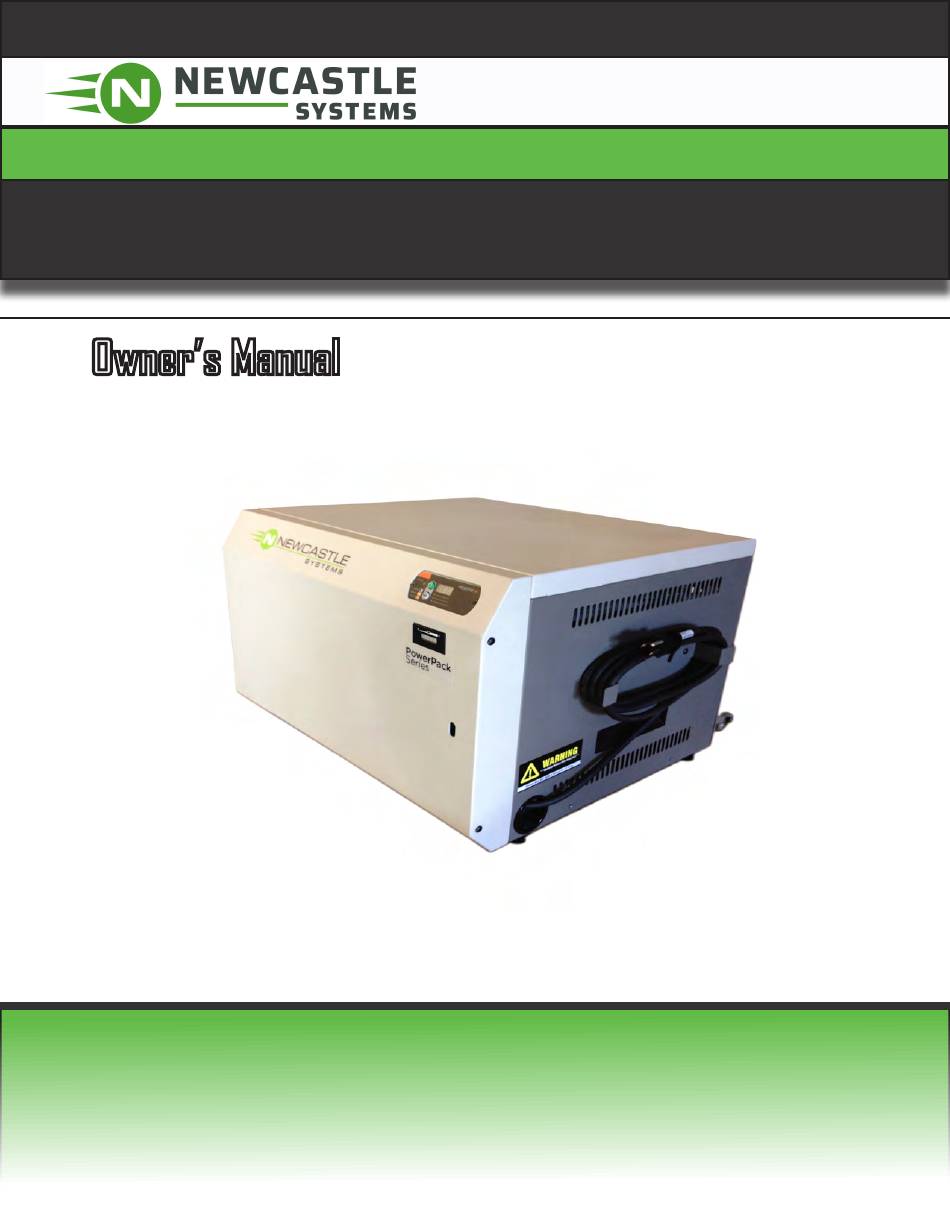

- Page 1 POWER PACK SYSTEM PP-42 PP45 Owner’s Manual...
-
Page 2: Important Safety Instructions
Important Safety Instructions SAVE THESE INSTRUCTIONS! This manual contains important instructions and warnings that should be fallowed during the installations and operation of this product. Battery Connections Warnings The battery should be connected before operating the cart and the remote voltage meter. Spark may result during final battery connection. -
Page 3: Important Information
Optional wheel-base tote system for true portability • Optional bracket system to secure unit to Cart, Vehicle, or other surfaces, POWER PACK PowerPack Series Configurations: PowerPack 42 PowerPack 45 Power System Components: 1-Battery System 2-Battery System Battery; (Sealed Lead Acid):... -
Page 4: Table Of Contents
Table of Contents Important Safety Instructions ..............2 Important Information ................3 Unit Components ................... 5 Feature Identification ................... 6 Operation ......................7 Assembly Instructions ................. 8 Battery Set-Up ....................9 Two Batteries Set-Up .................. 10 Tips To Extend Battery Life ................. 11... -
Page 5: Unit Components
Unit Components Fully ventilated Steel Cabinet 100 watts 960 model Inverter / Charger 3. Optional Wheel-Base Tote Battery... -
Page 6: Feature Identification
Feature Identification 960 Volt Meter 9-3000 Volt Meter Power Cord Cord Reel Removable Front Cover 6. Access to reset Inverter (GFCI) Removable Top Cover Handle 9. Screw 10/32-10 Hex Nut 10. Power Strip Box Ventilation Back 13. Knock-out... -
Page 7: Operation
Operation Detach the Front cover using the 10/32 HEX-KEY nut wrench to remove the front cover Press and hold the Green ON bottom for ten second to start the unit 3. Make sure the switch is ON in the power strip attached to the unit Connect your equipment according to the inverter power capacity... -
Page 8: Assembly Instructions
Assembly Instructions Voltage Meter Installation Connect in the appropriate order the wires from the battery to voltage meter Attach and secure Bracket to the (9-3000) Voltage Meter 3. Attaching the Inverter Voltage Meter to the Battery Box Connect the communication cable to the back of the voltage meter Attaching to the battery box the safety bracket for the Inverter (960) voltage meter 6. -
Page 9: Battery Set-Up
Battery Set-Up ONE BATTERY SET-Up 960 Inverter • A-Inverter • B-Fuse Block • C-Battery 1 • D-Volt Meter Fuse Block Battery 9-3000 Volt Meter One Batteries Set-up 9-3000 Volt Meter Set-up 1. Inverter Black wire (-) to Battery (-) 1. Red wire on Meter (1) to Battery (+) terminal 2. Inverter Red wire (+) to Fuse Block A terminal 2. Black wire on Meter (2) to Battery (-) terminal 3. Fuse Block B terminal Red Wire (+) to Battery (+) 3. No Connection 4. Green wire on Meter (4) to Battery (+) terminal... -
Page 10: Two Batteries Set-Up
Two Batteries Set-Up TWO BATTERY SET-Up 960 Inverter • A-Inverter • B-Fuse Block • C-Battery 1 And 2 • D-Volt Meter Fuse Block Battery Battery 9-3000 Volt Meters Two Batteries Set-up 9-3000 Volt Meter Set-up 1. Inverter Black wire (-) to Battery (-) 1. Red wire on Meter (1) to Battery (+) terminal 2. Inverter Red wire (+) to Fuse Block A terminal 2. Black wire on Meter (2) to Battery (-) terminal 3. Fuse Block B terminal Red Wire (+) to Battery (+) 3. No Connection 4. Fuse Block B terminal Extension wire (+) to Battery (+) 4. Green wire on Meter (4) to Battery (+) terminal... -
Page 11: Tips To Extend Battery Life
Tips To Extend Battery Life -1 Charge the Battery before using the NB-PS, to insure the NB-PS is fully charge -2 Monitor the battery status meter on the cart volt meter. -3 Batteries should not be stored in discharged below volts as this will shorten the life of the battery 11.5 -4Batteries should not be stored in a discharged state for more than 1 or 2 days.
