Summary of Contents for LEVTECH LSP-PC1-WIFI

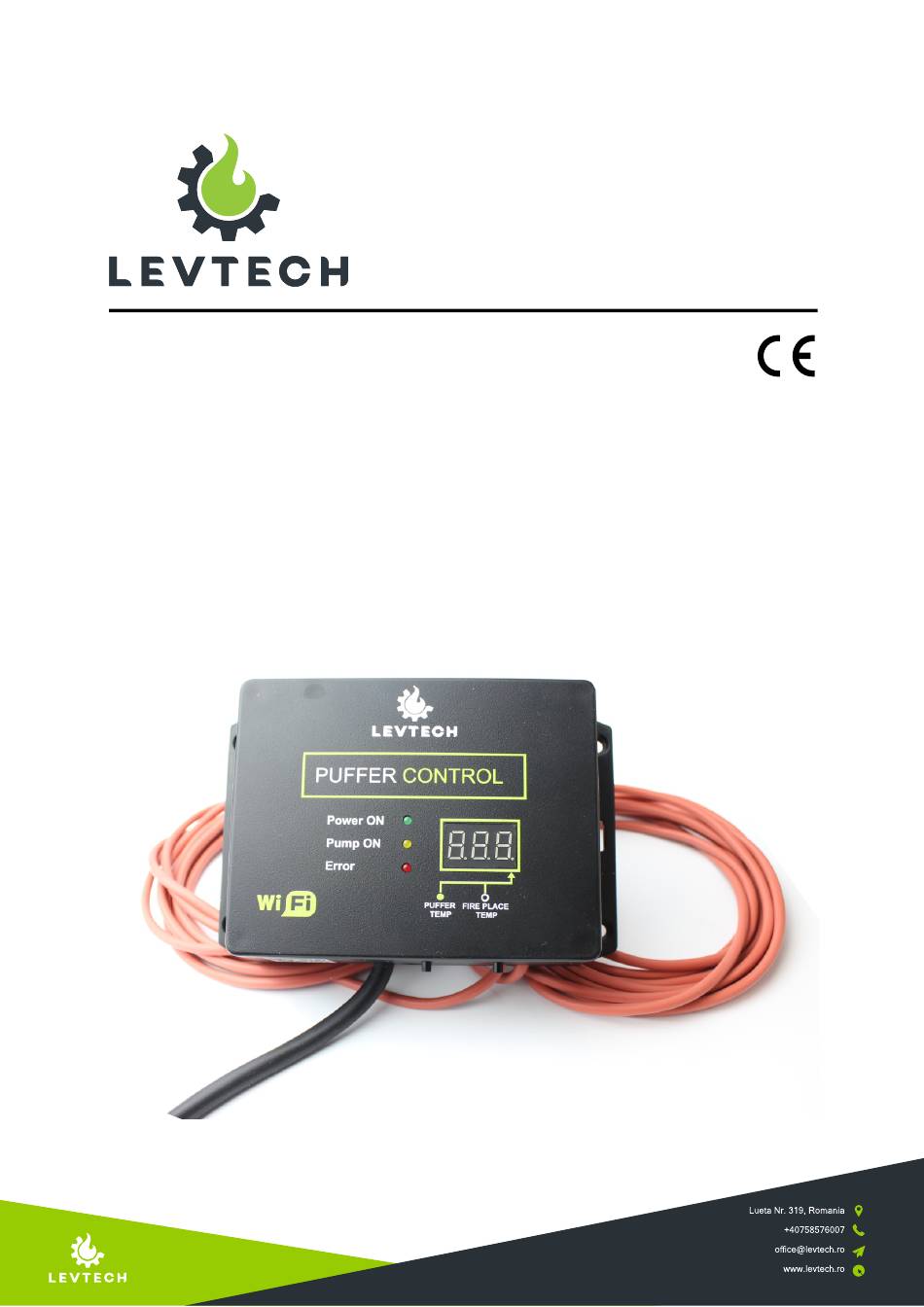

- Page 1 User Manual PUFFER CONTROL WiFi VERSION LSP-PC1-WIFI...
-
Page 2: Revision Information
Levtech Service & Prodtuction SRL Revision information Rev. Date Changes Aug. 1, 2022 First version Feb. 13, 2023 - „Login to own network” step by step added - „Email configuration” step by step added - Info sign added... -
Page 3: Short Description
Levtech Service & Prodtuction SRL Short description The purpose of the LSP-PC1-WiFi controller is to effectively control the heating of the puffer tank. The controller has two temperature sensors and controls a pump. Based on the temperatures measured in the fire place and the puffer tank, as... - Page 4 Levtech Service & Prodtuction SRL Description indications Display Button 1 Button 2 Pump connection Power supply (Max 4A/220V) 150-240V AC 5A fuse for the pump Pt1000 sensor from the water tank 500mA fuse for the Pt1000 sensor from power supply...
- Page 5 Levtech Service & Prodtuction SRL Description The Puffer Control controller is designed to control the efficient heating of the puffer tank by controlling the pump on the closed water system of the fireplace and the puffer tank and by measuring the exact temperature in them.
- Page 6 Levtech Service & Prodtuction SRL Settings The controller comes ready-to-use from the factory and provides safe control of the given system immediately after connection. In addition, personalization is possible, which can be carried out on the device through the Wifi connection of a smartphone or a laptop.
- Page 7 Levtech Service & Prodtuction SRL Settings Setup Here we can change or set the parameters of the controller to the default position. You must enter a password to enter. Username: admin Password: password...
- Page 8 Levtech Service & Prodtuction SRL Settings Start Temperature: specifies the minimum temperature value of the fire place from which the control starts. The unit of measurement is degrees Celsius. Differential Temperature: specifies how many degrees the water in the fire place must be higher compared to the tank in order for the circulating pump to start.
- Page 9 Levtech Service & Prodtuction SRL Settings Default button: by clicking this, we can reset the control parameters separately to the factory state. When you press it, the system will ask if you want to execute it for sure. Load button: by pressing it, we can read the currently loaded parameters. After saving, we can use this to test whether the changes have been saved.
- Page 10 Levtech Service & Prodtuction SRL Settings LAN Settings Here we can change or reset the network parameters of the controller. For easier navigation, the menu is divided into 5 parts. You must enter a username and password to log in.
- Page 11 Levtech Service & Prodtuction SRL Settings Access point configurations Access Point Enable: with the help of this we can make the controller visible (checked) or invisible (not checked) for other devices. If the device is currently invisible, you can use Button 2 on the controller to display it in the list of Wi-Fi devices when searching.
- Page 12 Levtech Service & Prodtuction SRL Settings Email configurations Here we have the option to set the parameters for sending email notifications. If you simply want to receive a notification, enter the email address where you want to receive the notification in the Destination email address field. Then we need to check both boxes: Default SMTP and Notifications enable.
- Page 13 Levtech Service & Prodtuction SRL Login to own network In order to be able to use the device's WiFi functions, like email notifications, modify the settings or check the system’s status, you need to login the controller to your own WiFi network.
-
Page 14: Email Notification Setup
Levtech Service & Prodtuction SRL Login to own network Step 10 After Step 9 the controller will restart. Wait PUFFER CONTROL until the screen shows the current Power ON Pump ON Error temperature again. PUFFER FIRE PLACE TEMP TEMP Step 11 From this moment, the controller is reachable through your Wi-Fi network. -
Page 15: Changing The Language
Levtech Service & Prodtuction SRL Changing the language The controller menu is available in three languages: Ÿ English Ÿ Hungarian Ÿ Romanian By default, the menu is displayed in English and you can easily change it by following the steps below. -
Page 16: Factory Reset
Levtech Service & Prodtuction SRL Factory reset If you want to restore the factory settings, you can easily do it by following the steps below. After the reset, the parameters of the control and the network settings are also reset to the factory values. You can find these values in the Default settings chapter. - Page 17 Levtech Service & Prodtuction SRL Alarms Sensor failure alarm If any sensor wire is broken, the buzzer will sound and the pump will start until the controller receives a readable value from the sensor again. The sound signal can be turned off by pressing Button 1 on the bottom of the controller. After the beep stops, the pump continues to operate until the problem is resolved.
-
Page 18: Operation
Levtech Service & Prodtuction SRL Operation PUFFER CONTROL Power ON Pump ON Error PUFFER FIRE PLACE TEMP TEMP Normal mode Under normal conditions, the controller measures the temperature in the fire place (T1) and the puffer tank (T2). If the temperature difference between the fire place and the tank is greater than the preset value, the pump starts and runs... - Page 19 Levtech Service & Prodtuction SRL Dimensions 36.79 mm 92.84 mm 67.57 mm...
- Page 20 Levtech Service & Prodtuction SRL Connectors Pt1000 sensor from the puffer Pump tank connector (Max 4A/220V) Pt1000 sensor from the fire Power place supply150- 240V AC By default, the two temperature sensors and the power cable are connected to the controller. Before use, it is only necessary to connect the motor wires properly.
-
Page 21: Technical Data
Levtech Service & Prodtuction SRL Technical data Power supply 150 - 240V AC 50Hz Consumption Controller operating temperature -20 °C to 60 °C Dimensions (H x L x W) 147 x 96 x 38 mm Weight 185g (515g with accessories) -
Page 22: Default Settings
Levtech Service & Prodtuction SRL Default settings Dangerously high temperature alarm At 100 °C in the fire place with sound Over temperature alarm without At 90 °C in the fire place sound Antifreeze Function Pump starts at 2°C and stops at 3°C... - Page 23 Levtech Service & Prodtuction SRL Attention! Before starting any work on the supply (wiring, installation of equipment, etc.), make sure that the device is not connected to the electrical network. The connections must be made by a qualified electrician. Before using the controller,...
- Page 24 INSTALLATION GUIDE PUFFER CONTROL Remove the back of the device by removing the 4 screws on it. Insert the pre-wired temperature s e n s o r i n t o t h e m e a s u r i n g o p e n i n g o f t h e p u ff...
- Page 25 CONFIGURATION INSTRUCTIONS PUFFER CONTROL After you have connected the sensors and the pump and verified that the controller is working, reassemble the backplate. Turn on Wi-Fi search on your phone and connect to the "Puffer_control" network. Password: password. Select the automatic connection option. After connecting, scan the QR code at the bottom of the controller.
