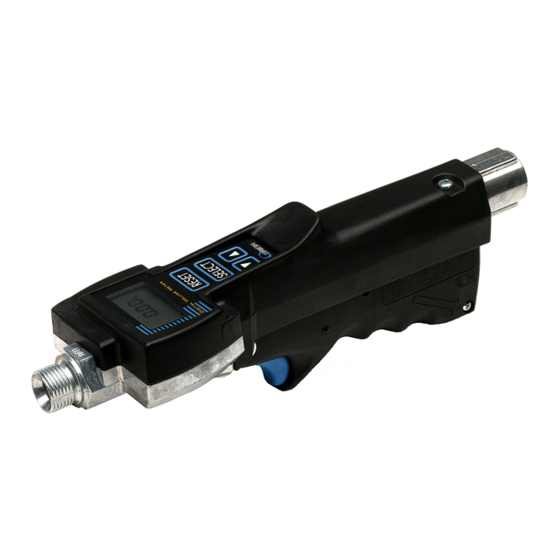

- Page 1 USER MANUAL / BRUKSANVISNING / MANUEL D’UTILISATION / BEDIENUNGSANLEITUNG / MANUAL DE INSTRUCCIONES HOSE END METER PRE SET VERSION Part No. / Réf. / Art. Nr. / Cód.: 24702 Manual 24702_EN_2B 2014-05-20...
- Page 2 Manual 24702_EN_2B General Even though it’s designed for heavy-duty use the Meter is a High Precision Measuring Device and should be treated as such. It is possible to calibrate the Meter to a specific oil viscosity. See instructions on page 6. The Meter’s default setting displays volume in liters.
- Page 3 Manual 24702_EN_2B Activation When the battery is mounted, activate the Meter by pressing the RESET & SELECT buttons simultaneously for a few seconds. The display will light up. When the Meter is activated, the display will show 0.00 L. PRE-SET Dispensed TRIP mode indicator mode...
- Page 4 Manual 24702_EN_2B Normal dispensing Before using the Meter it should always be reset to show 0.00 on the display by pressing the RESET button. To start dispensing, press the "safety lock" before pressing the "trigger handle". This ensures that you won’t accidentally release oil e.g.
- Page 5 Manual 24702_EN_2B Spare parts list Part No Description Position No Quantity 224 56 90 Cover 244 58 19 Meter chamber 224 59 09 Valve kit 244 57 06 Locking device 204 55 97 Trigger handle 224 58 17 Strainer 204 55 94 PCB support 224 56 34 9V-Battery...
- Page 6 Manual 24702_EN_2B Instructions for re-calibration 1. Check the Meter against a 2-liters measure. If the reading on the Meter is out of calibration, note the displayed volume (e.g. 1.98) and calculate the new Scale Factor (e.g. 1.0101) as shown in illustration to the left. Note! If the meter already has a Scale Factor other than the default figure 1.0000 set it back to 1.0000 (see point 3-5.) before performing the calibration.
- Page 7 Manual 24702_EN_2B Instruction for changing the unit of measure 1. Remove the hexagon screw that covers the SETUP button. 2. With a sharp object, like a small screwdriver, short-circuit the two soldered pads on the circuit board that can be reached through the hole.
- Page 8 Manual 24702_EN_2B Instruction for resetting of flashing display If the display starts flashing between SETUP and 1.0000 the Scale Factor stored in the memory of the Meter is lost. This is due to either low voltage in the built-in 3V battery or an electrostatic discharge. If, when disconnecting the 9V battery, the display goes totally blank (without “Low voltage indicator”...
