InTemp® CX5000/CX5001 Gateway Manual
InTemp
CX5000/CX5001
Gateway
Included Items:
• Mounting kit
• AC adapter
Required Items:
• InTempConnect
account
• InTemp app
• Device with iOS or
Android™ and
Bluetooth
• CX series loggers
21781-O

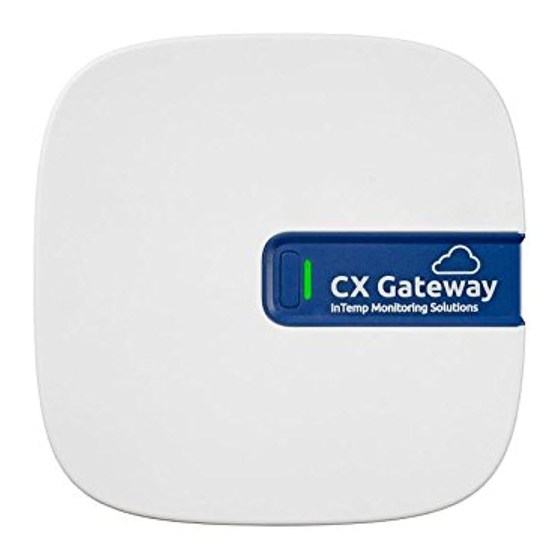

The InTemp CX5000/CX5001 Gateway uses Bluetooth® Low Energy (BLE) to regularly configure
and download data from up to 50 CX series loggers and upload the data to the InTempConnect®
website automatically using Ethernet or Wi-Fi. The gateway requires an InTempConnect
website account with gateway privileges and a phone or tablet with the InTemp app installed to
set up the gateway.
Specifications
Transmission Range
Approximately 30.5 m (100 ft) line-of-sight
Wireless Data Standard
Bluetooth 4.2 (BLE)
Connectivity
WiFi 802.11a/b/g/n 2.4/5 GHz or 10/100 Ethernet
Power Source
AC adapter
Dimensions
12.4 x 12.4 x 2.87 cm (4.88 x 4.88 x 1.13 inches)
Weight
137 g (4.83 oz)
The CE Marking identifies this product as complying with all relevant
directives in the European Union (EU).
Advertisement
Table of Contents
Related Manuals for InTemp CX5000
Summary of Contents for InTemp CX5000
- Page 1 50 CX series loggers and upload the data to the InTempConnect® website automatically using Ethernet or Wi-Fi. The gateway requires an InTempConnect website account with gateway privileges and a phone or tablet with the InTemp app installed to set up the gateway.
- Page 2 Download and Stop, all logging stops once the gateway connects to the loggers and you will need to restart them with the InTemp app or using the gateway with InTempConnect. In addition, Download and Restart is not available for CX502, CX602, and CX702 loggers.
- Page 3 The gateway appears in the list as in the following range of the gateway but returns before the example of a CX5000 tile and is identified by its serial specified time elapses, the gateway treats it as a number. The serial number is located on the outside of previously seen logger and does not perform the the box or on the back of the gateway.
- Page 4 7. Configure the gateway. gateway: • The gateway requires AC power and an Internet a. In the InTemp app, tap the Devices icon and then tap Gateways at the top of the screen. connection. Select a location for the gateway that is near an AC outlet and an Ethernet port (if you are using b.
- Page 5 InTempConnect. The data is stored • CX5000 only: Press the button on the gateway for 1 temporarily in the gateway and uploaded the next time it is able to connect to InTempConnect.
- Page 6 Administrator privileges can then connect to the gateway the gateway. The template includes columns for any trip with the InTemp app and reconfigure it. Note: It may take information fields you have created. Note: The selected up to 30 seconds for the gateway to appear unlocked in logger cannot already be part of a scheduled configuration the InTemp app.
- Page 7 U.S. and International Sales: 1-508-743-3309 © 2017–2023 Onset Computer Corporation. All rights reserved. Onset, InTemp, and InTempConnect are registered trademarks of Onset www.onsetcomp.com/intemp/contact/support Computer Corporation. App Store is a service mark of Apple Inc. Android and Google Play are trademarks or registered trademarks of Google Inc.
