InTemp® CX5000 Gateway Manual
InTemp CX5000
Gateway
Included Items:
• Mounting kit
• AC adapter
Required Items:
• InTempConnect
account
• InTemp app
• Device with iOS or
Android™ and
Bluetooth
• CX series loggers

Setting up the Gateway

Follow these instructions for setting up the gateway in your
current location. If you are an IT administrator configuring the
gateway for use at a different location, see Setting up the
Gateway at a Different Site.
1. Set up roles on the InTempConnect website for
gateway privileges.
a. Go to www.intempconnect.com and follow the prompts
to set up an administrator account or skip to the next
step if you already have an account.
b. Log into the account at www.intempconnect.com.
c. If you are an administrator or created the account and
will be setting up the gateway, you can skip to step 2
because you automatically have the required privileges.
Otherwise, you must create a role or edit an existing
role to add the privileges. Click Settings and then Roles.
d. Click Add Role and enter a description or select an
existing role. Note: You must be an InTempConnect
administrator or a user with Manage Users and Roles
privileges.
e. Select the Gateway privileges from the Available
Privileges list on the left and click the right arrow button
to move them to the Assigned Privileges list on the right
as shown in this example.
21781-L

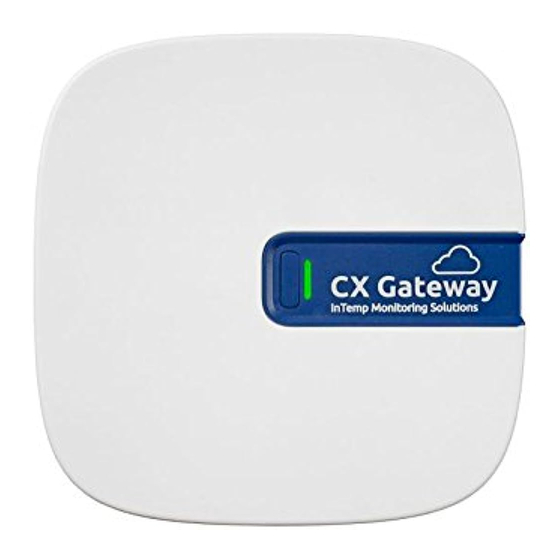

The InTemp CX5000 Gateway is a device that uses Bluetooth® Low Energy (BLE) to regularly
configure and download up to 50 CX series loggers and upload the data to the InTempConnect®
website automatically via Ethernet or WiFi. The gateway requires an InTempConnect website
account with gateway privileges and a phone or tablet with the InTemp app to set up the
gateway.

Specifications

Transmission Range
Approximately 30.5 m (100 ft) line-of-sight
Wireless Data Standard
Bluetooth 4.2 (BLE)
Connectivity
WiFi 802.11a/b/g/n 2.4/5 GHz or 10/100 Ethernet
Power Source
AC adapter
Dimensions
12.4 x 12.4 x 2.87 cm (4.88 x 4.88 x 1.13 inches)
Weight
137 g (4.83 oz)
The CE Marking identifies this product as complying with all relevant
directives in the European Union (EU).
Gateway
Description
Privilege
Create
Set up shipments of loggers via the
Shipments
gateway.
Download Now
Download the logger with a gateway
and Continue
immediately and then continue
logging.
Download Now
Download the logger with a gateway
and Restart
immediately and then restart the
logger.
Download Now
Download the logger with a gateway
and Stop
immediately and then stop logging.
Edit/Delete
Change or delete planned shipments of
Shipments
loggers via the gateway
Manage Logger/
Set up or edit a gateway profile in
Gateway Profiles
InTempConnect.
Manage
Monitor active gateways in
Gateways
InTempConnect and configure loggers
with the gateway.
Gateway
Set up and configure a gateway with
Administrator
the InTemp app.
Select any other privileges you want the user to have
(privileges for the InTempConnect website are noted
with a cloud
icon and privileges for the InTemp app
are noted with a mobile device
f. Select a user for this role and click Save. Or, if you need
to add a user, click Save and then click Settings > Users.
Click Add User and enter the email address and first and
last name of the user. Select the role with the gateway
privileges for the user and click Save.
Tip: You can assign these roles to the same user or different
users.
icon).
