Onkyo HT-S3100 Quick Setup

QUICK SETUP

Model : HT-S3100/HT-S3105
Thank you for purchasing this product.
This quick setup sheet shows the typical hookup method for connecting
speakers and AV components (DVD player, TV, cable/satellite receiver).
For more detailed hookup information and operating instructions,
please see the Instruction Manual.
First of all,
turn on speaker set A.
Press the SPEAKERS [A] button on
the front panel. Make sure that speaker
indicator A is shown on the display.
Turn off speaker set B when not in use.
Indicator should be off.

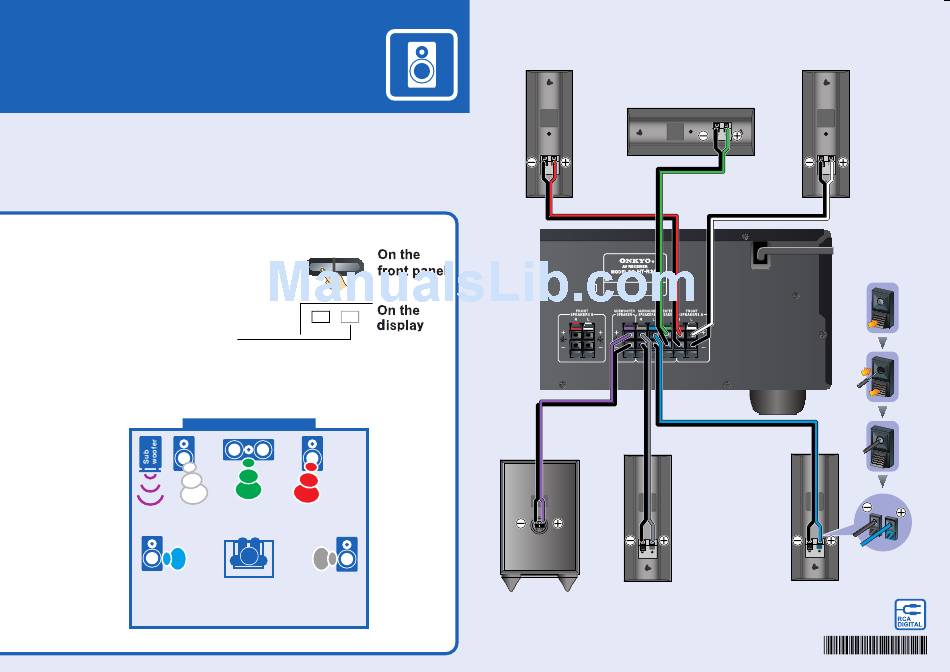

Speaker Set A Layout (Main Room)
Front
Left
Surround
Left
A SPEAKERS B
A B
TV
Front
Right
Center
Surround
Listener
Right
Speaker Set A Hookup
Front right speaker
Center speaker
GREEN/BLACK
CABLE
RED/BLACK
CABLE
PURPLE/BLACK GRAY/BLACK
CABLE CABLE
Surround right speaker
Subwoofer
HTP-360 speaker package is shown
(C) Copyright 2008 ONKYO CORPORATION Japan. All rights reserved.
Front left speaker
WHITE/BLACK
CABLE
BLUE/BLACK
CABLE
Surround left speaker
See the other side of this sheet
for the AV component hookup.
