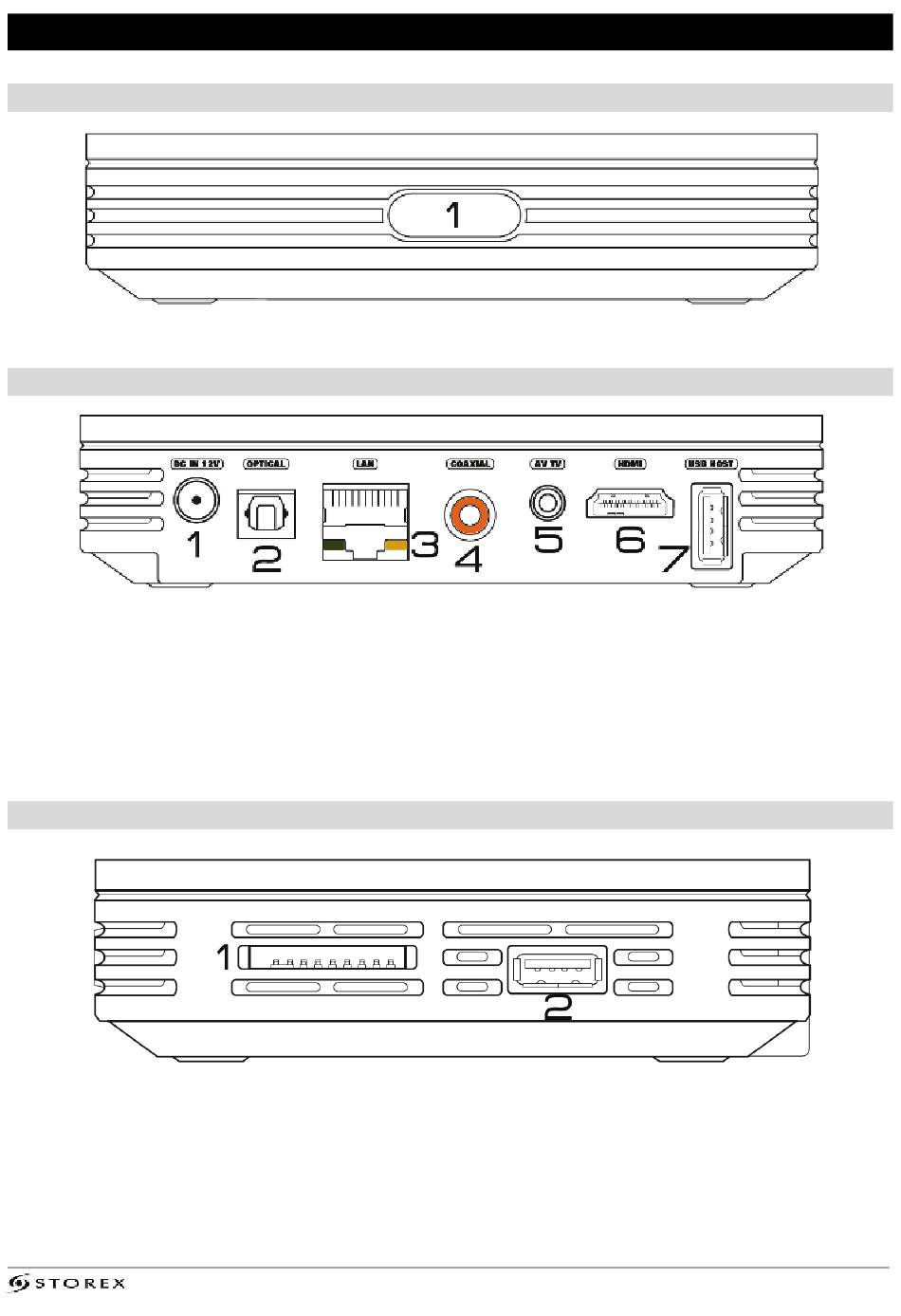

PRODUCT DETAILS

FRONT PANEL

1. INFRA-RED RECEIVER

REAR PANEL

1. DC IN 12V: To connect the power adaptor.
2. OPTICAL: To connect an optical cable (from your SlimBox to your audio amplifier).
3. LAN: To connect an Ethernet cable (from your SlimBox to your router).
4. COAXIAL: To connect a coaxial cable (from your SlimBox to your audio amplifier).
5. AV TV: To connect your SlimBox to your TV using the provided AV cable.
6. HDMI: To connect a HDMI cable (from your SlimBox to your TV).
7. USB HOST: To connect a USB peripheral (USB stick, external hard drive or WiFi USB stick).

SIDE

1. SD/MMC: To connect an SD or MMC memory card
2. USB HOST: To connect a USB peripheral (USB stick, external hard drive or WiFi USB stick).
SlimBox Page 7/24
