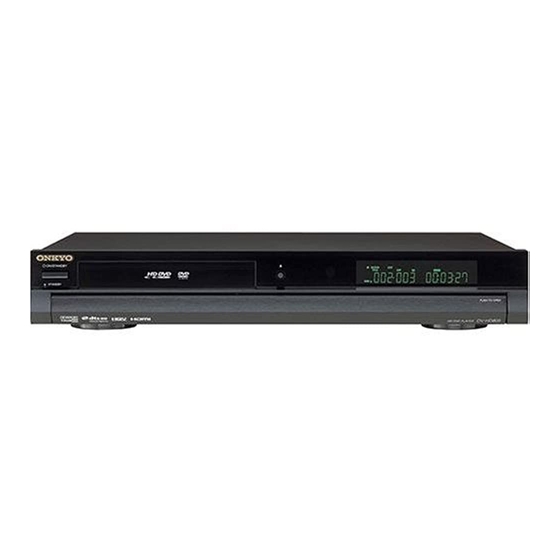

HD DVD Player
DV-HD805
Instruction Manual
Thank you for purchasing an Onkyo HD DVD
Player. Read this manual carefully before
using your new HD DVD Player. A good
understanding of its features and operation will
allow you to achieve optimum performance and
enjoyment.
Keep this manual for future reference.
DV-HD805_En.indb
1
Contents
Introduction. . ..................2
Preparation. . .................15
Basic.Playback............29
HD.DVD.Playback........33
Detailed.Settings.........34
Miscellaneous.
Information. . .................42
2007/10/09
16:33:19

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DV-HD805 and is the answer not in the manual?

Questions and answers

Related Manuals for Onkyo DV-HD805

Summary of Contents for Onkyo DV-HD805

  • Page 1 HD DVD Player DV-HD805 Instruction Manual Thank you for purchasing an Onkyo HD DVD Player. Read this manual carefully before using your new HD DVD Player. A good understanding of its features and operation will allow you to achieve optimum performance and enjoyment.

  • Page 2: Important.safety.instructions

    WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPARATUS TO RAIN OR MOISTURE. CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING QUALIFIED PERSONNEL.

  • Page 3: Precautions

    . Precautions 1... Recording.Copyright—Unless it’s for personal use only, recording copyrighted material is illegal without the permission of the copyright holder. 2... AC.Fuse—The AC fuse inside the unit is not user- serviceable. If you cannot turn on the unit, contact your Onkyo dealer. 3... Care—Occasionally you should dust the unit all over with a soft cloth. For stubborn stains, use a soft cloth dampened with a weak solution of mild detergent and water. Dry the unit immediately afterwards with a clean cloth. Don’t use abrasive cloths, thinners, alcohol, or other chemical solvents, because they may damage the finish or remove the panel lettering. 4.. Power WARNING BEFORE PLUGGING IN THE UNIT FOR THE FIRST TIME, READ THE FOLLOWING SECTION CAREFULLY. AC outlet voltages vary from country to country. Make sure that the voltage in your area meets the voltage requirements printed on the unit’s rear panel (e.g., AC 230 V, 50 Hz or AC 120 V, 60 Hz). The power cord plug is used to disconnect this unit from the AC power source. Make sure that the plug is readily operable (easily accessible) at all times. Never disconnect the power cord from a wall outlet while the player is turned on, unless it is in an emergency. Doing so may cause malfunction. Pressing the [ON/STANDBY] button to select Standby mode does not fully shutdown the unit. If you do not intend to use the unit for an extended period, remove the power cord from the AC outlet. 5.. Never.Touch.this.Unit.with.Wet.Hands—Never handle this unit or its power cord while your hands are wet or damp. If water or any other liquid gets inside...
  • Page 4 . Precautions.(Continued) 10..Region.Numbers—The DVD standard uses region numbers to control how discs can be played around the world, the world being divided into six regions. This unit will only play DVD discs that match its region number, which can be found on its rear panel (e.g., , 11..About.this.Manual—This manual explains how to use all of this unit’s functions. Although the DVD standard offers many special features, not all discs use them all, so depending on the disc being played, this unit may not respond to certain functions. See the disc’s sleeve notes for supported features. This unit contains a semiconductor laser system and is classified as a “CLASS 1 LASER PRODUCT”. So, to use this model properly, read this Instruction Manual carefully. In case of any trouble, please contact the store where you purchased the unit. To prevent being exposed to the laser beam, do not try to open the enclosure. CAUTION: CLASS 1M VISIBLE AND INVISIBLE LASER RADIATION WHEN OPEN. DO NOT VIEW DIRECTLY WITH OPTICAL INSTRUMENTS. THIS PRODUCT UTILIZES A LASER. USE OF CONTROLS OR ADJUSTMENTS OR PERFORMANCE OF PROCEDURES OTHER THAN THOSE SPECIFIED HEREIN MAY RESULT IN HAZARDOUS RADIATION EXPOSURE. The label on the right is applied on the rear panel. 1. This unit is a CLASS 1 LASER PRODUCT and employs a laser inside the cabinet. 2. To prevent the laser from being exposed, do not remove the cover. Refer servicing to qualified personnel. WARNING To prevent a fire hazard, do not place any naked flame sources (such as a lighted candle) on the equipment.

  • Page 5: Notes On Copyright

    We, ONKYO EUROPE ELECTRONICS GmbH LIEGNITZERSTRASSE 6, 82194 GROEBENZELL, GERMANY declare in own responsibility, that the ONKYO product described in this instruction manual is in compliance with the corresponding technical standards such as EN60065, EN55013, EN55020 and EN61000-3-2, -3-3. GROEBENZELL, GERMANY ONKYO EUROPE ELECTRONICS GmbH DV-HD805_En.indb...

  • Page 6: Table Of Contents

    Controller port ... 33 Requirements for HD DVD discs/ Web-enabled network content ... 33 Output.sound.conversion.table... 34 DV-HD805_En.indb Customizing.the.function.settings..35 Settings ... 36 Picture ... 36 Audio ... 37 Language ... 38 Ethernet . ..40 General ... 40 Firmware update ... 41 Before.calling.service.personnel... 42 License.information.on.the.software.used.. in.the.Onkyo.HD.DVD.player..43 Specification... 50 2007/10/09 16:33:22...

  • Page 7: Disc Specification

    . Features Disc.compatibility Discs which can be played on this player are as follows. The icons ( ) are used in this manual to indicate features and/or functions that are applicable to various types of discs. Disc Specification Prerecorded discs HD DVD video disc 12cm (4 HD DVD video discs are high-density, high-capacity discs. • T he HD DVD disc standard has been approved by the DVD forum. • H D DVD (single layer): 15 GB HD.DVD • H D DVD (dual layer): Maximum capacity of 30 GB • A single layer single sided disc (15 GB) has capacity of about 8 hours in 1125 line high definition picture; about 48 hours in 525 line standard definition picture (depending on bitrate of pre-recorded contents). * 1GB means 1,000,000,000 bytes. • H D DVD Twin Format Discs have both HD DVD and DVD layers on one side. HD DVD Combination Format Discs have HD DVD material on one side and DVD material on the other side. DVD video disc 12cm (4 See page 8 for region information. DVD-Video Audio CD 12cm (4 Recordable discs DVD-RW...

  • Page 8: Features

    HD DVD with high-definition content required for HD viewing. Viewing high-definition content and up-converting DVD content may require an HDCP capable DVI or HDMI input on your 50/60 Hz display device. Up-conversion of DVD content will result in near HD picture quality. Firmware update may be required for some interactive features depending on content, which may also require an always-on broadband internet connection. Some features may require additional bandwidth. Some recordable media may not be supported. Dolby Digital Plus, Dolby TrueHD and DTS support for up to 5.1 channels (DTS HD support for DTS core only). MP3/WMA audio files not supported. Because HD DVD is a new format that makes use of new technologies, certain disc, digital connection and other compatibility and/or performance issues are possible. This may, in rare cases, include disc freezing while accessing certain disc features, or functions, or certain parts of the disc not playing back or operating as fully intended. If you experience such issues, please contact your Onkyo dealer. Some features subject to delayed availability. 1080p capable display required for 1080p output resolution. Deep Color feature as specified in HDMI 1.3a requires compatible Deep Color capable HD display and/or device. For 24p output, content that was created in 1080p / 24 frames/sec is required. Viewing 24p output requires an HD display capable of accepting a 1080p/24Hz signal. While every effort has been made at the time of publication to ensure the accuracy of the information provided herein, product specifications, configurations, system/component/options availability are all subject to change without notice. Note • The firmware in this player can be updated. See page 41 for details. DVD-Video.regions All DVD-Video discs carry a region mark on the case somewhere that indicates which region(s) of the world the disc is compatible with. Your HD DVD player also has a region mark, which you can find on the rear panel. Discs...

  • Page 9: Certain System Requirements

    • C omponent jacks • 5 .1 channel surround analog audio jacks Certain.system.requirements For high definition video playback: • 5 0/60 Hz compatible HD display (some discs may require HDCP capable input) • H D DVD disc with HD content For Dolby Digital Plus and Dolby TrueHD multi-channel ® audio playback: • A /V Receiver with HDMI™ multi-channel LPCM capable audio input and 5.1 channel speaker setup. Customer.support Please contact your Onkyo dealer. Before accessing, try updating this player’s firmware. For details on how to update, see “Update (Firmware update)” ( page 41). This HD DVD player is manufactured under the HD DVD Format adopted by the DVD Forum. The DVD Forum approved AACS (Advance Access Content System) as content protection system for HD DVD format like it approved CSS (Content Scramble System) for DVD format. Therefore, certain restrictions are imposed on play, analog signal output, etc. of AACS protected contents. When you use pre-recorded contents, the contents may designate whether or not to apply such restrictions. As those restrictions may be adopted and/or changed and announced by AACS after the production of this product,...

  • Page 10: Index.to.parts.and.controls

    . Index.to.parts.and.controls Front.panel * The above illustration displays the front panel with the cover open. Control ON/STANDBY.button STANDBY.indicator Disc.tray Remote.sensor Front.panel.display .(OPEN/CLOSE).button MODE.switch (SKIP).buttons .(PAUSE).button .(STOP).button .(PLAY).button EXTENSION.port Rear.panel Control ETHERNET.port DIGITAL.AUDIO.OUTPUT.OPTICAL/ COAXIAL.jack ANALOG.AUDIO.OUTPUT.5.1ch. SURROUND.jacks COMPONENT.VIDEO.OUTPUT.jacks RS-232.jack Ventilation.fan AC.INLET.socket ANALOG.AUDIO.OUTPUT.2ch.jacks VIDEO.OUTPUT.(VIDEO,.S.VIDEO).jack Outputs video signals to a connected TV or amplifier. HDMI.OUT.jack DV-HD805_En.indb Function Turns the power on or restores the unit to the standby mode. Blue: power on / Red: standby mode Loads a disc into the disc drive. Receives infrared signals from the remote control. See the next page. Opens and closes the disc tray. Selects the video output jack.

  • Page 11: To Change The Brightness Of The Display On The Player

    Display Function : Playing : Pausing : Fast forward playback : Fast reverse playback HD DVD: An HD DVD is loaded. DVD: A DVD is loaded. Shows a title number. A disc which contains advanced content is loaded. Shows a chapter number. A CD is loaded. Remote.control Function To change TV channels. To turn the TV on or off. To change inputs of the TV. To mute the TV. To program the remote control to control a TV. To select the sound. To display a top menu. To select a content or position to enter. DV-HD805_En.indb Function Shows a track number. : Dolby Digital sound is played. : DTS sound is played. HDMI connection is verified between the player and another device. Total playing time is displayed. Remaining playing time is displayed. 2ch sound is output. Multi channel sound is output. Playing in repeat mode. Playing a scene recorded with multi angles. Displays the video output format currently selected. (i: interlaced, p: progressive) Displays the elapsed time, remaining time, a number of title, chapter or track, messages, etc. Pressing DIMMER button on the remote control changes the brightness of the display. (Normal / dimmed / off) • Turning off the power resets this setting.

  • Page 12: Supplied Accessories

    . Accessories Supplied.accessories Check that the following accessories are supplied. Remote.control Batteries (AAA/R03)×2 Composite.audio/video. cable Power.cord For North American Models For European Models Caution • Do not use this power cord with any device other than this player. * I n catalogs and on packaging, the letter at the end of the product name indicates the color. Specifications and operations are the same regardless of color. DV-HD805_En.indb . Remote.control Loading.batteries Open.the.cover.and. load.batteries.(AAA/ R03.size). Make sure to match the + and – on the batteries to the marks inside the battery compartment. . C lose.the.cover. Operating.range Remote.sensor Within.about.23.ft.(7.m) Notes • Do not drop or give the remote control a shock.

  • Page 13: Tv Control

    TV.control The remote control of this player is compatible with TV controls. Once you program the remote control (see the next paragraph), the following controls are available. Operate the remote control toward your TV. . To.program.the.remote.control.to.operate.your.TV 1. While.holding.TV.CODE,. press.the.number. buttons.to.enter.a. corresponding.brand. code.(see.below).of.your. Some brands have several codes. Try one by one until the remote control can operate your TV. 2. Release.TV.CODE. The brand code is memorized. Note • When replacing the batteries of the remote control, re-enter the brand code of your TV. For.North.American.Models Brand.name Brand code Bell.&.Howell. 0081 0431 Citizen. 0051 0381 0471 0551 0621 0851 1561 Curtis.Mathes. 0051 0391 0431 0531 0621 0851 1521 1561 Emerson. 0051 0111 0121 0141 0151 0161 0201 0211 0351 0381 0431 0521 0561 0571 0621 0691 1241 1291 1371 1561 2481 4871 Fisher.
  • Page 14 . Remote.control.(Continued) For.European.Models Brand.name Brand code Aiwa 3241 Akai 2671 Bang.&.Olufsen 2621 Beko 2941 3331 4471 Blaupunkt 2711 2801 Brionvega 2621 Bush 2541 2681 2691 2751 2781 2851 2861 2881 3291 4261 4481 Crown 2541 2871 2921 Daewoo 2541 2881 3221 3271 Decca 2611 Ferguson 2761 2841 3351 Finlux 2601 2611 2621 Fisher. 2671 2981 Funai 2731 2781 2591 2611 Goodmans 2611 2691 2861 2881 3221 3841 Granada 2611 2671 Grundig 2601 2701 3151 3441 4491 Hinari 2541 2681 2691 2901...

  • Page 15: Preparation

    . Preparation Proceed.the.following.steps.to.set.the.player.ready. Step.1:.Connecting.to.a.TV Step.2:.Connecting.to.audio.system Step.3:.LAN.connection Step.4:.Power.connection Step.5:.Powering.on Step.6:.Setting.up.the.player Resolution.and.connections Check the type of video input on your TV. To view high definition content, use the HDMI OUT jack or the COMPONENT VIDEO OUTPUT jacks to connect to a TV. Some discs may require use of the HDMI OUT jack. Set.the.MODE.switch..according.to.your.connection. *Why.HDMI.connection.is.most.recommended? HD DVD and DVD video disc creators have the option to include copy protection instructions in their discs that prohibit the output of some standard video or high definition video (original 720p, 1080i or 1080p or up-converted 480i (480i/576i) or 480p (480p/576p)) from the COMPONENT VIDEO OUTPUT jacks. If such instructions are present in the disc you are playing, you must use the HDMI OUT jack to view the disc in a high definition format and the COMPONENT VIDEO OUTPUT jacks, if activated, will output video only in 480i (480i/576i) or 480p (480p/576p) resolution. DV-HD805_En.indb Page.16 Page.17 Page.19 Page.20 Page.20 Page.21 2007/10/09 16:33:29...

  • Page 16: Step 1: Connecting To A Tv

    . Preparation.(Continued) Step.1:.Connecting.to.a.TV •.. C onnect.the.player.directly.to.your.TV..If.you.connect.the.player.to.a.VCR,.TV/VCR.combination,.video. selector.or.AV.amplifier,.the.playback.picture.may.be.distorted.due.to.copy.protection. •.Be.sure.to.turn.off.the.power.and.unplug.both.units.from.the.wall.outlet.before.making.any.connections. Via.HDMI.input To.view.1080p.output,.make.this.connection. HDMI transfers digital audio and uncompressed digital video on a single cable. As a result, audio cables and video cables don’t need to be connected separately to a device. Via.component.video.input Some discs may be down converted or require HDMI connection. Not compatible with 1080p. To view 1080p output, select HDMI connection. Note • This player supports simultaneous output of video on its HDMI and component video ports. However, some discs may restrict output of video on the component video ports when viewing high definition content or up-converted DVD content. The resolution on the HDMI output will be the same as the resolution output on the component video output. Thus, because the HDMI output can change automatically to match the maximum available resolution of your display, if you connect both the HDMI output and component output, the resolution on the component output will change if the HDMI output auto-adjusts. DV-HD805_En.indb Notes • When the HDMI connection is not verified, an error message appears on the front panel display. In this case, disconnect the HDMI cable then connect it again, or turn off the connected HDMI device then turn it on. • HDMI output is digital only, DVI analog is not supported. • HDMI is an evolving technology, so it is possible that some devices may not operate properly with this player. • To get the most possible benefit from Dolby Digital Plus, you should connect your HD DVD player to your AV receiver using its HDMI input. If your AV receiver has this type of input, make sure it is connected to your HD DVD player and that the input is set to use audio from HDMI (and not the SPDIF coaxial or optical input). If your AV receiver does not have an HDMI input, then the next best choice is to use the SPDIF (coaxial or optical) input on your AV receiver. • If you use the SPDIF (coaxial or optical) output or analog outputs to connect your audio system and have the “Digital Out HDMI” ( page 25) set to “Auto” or “PCM”, the audio output level from...

  • Page 17: Step 2: Connecting To Audio System

    Via.S.VIDEO.or.VIDEO.(yellow).input Step.2:.Connecting.to.audio.system Sound can output from connected audio system. If you made the HDMI connection between the player and a TV, this step is unnecessary. Skip to Step 3. Via.HDMI.output You can enjoy the benefits of Dolby Digital Plus or Dolby TrueHD by connecting the HDMI OUT jack of your player to an AV receiver with an HDMI audio input. This connection requires selection of “Digital Out HDMI” (Step 16, page 25). Via.digital.audio.output You can listen to down-converted Dolby Digital Plus and Dolby TrueHD as well as Dolby Digital and DTS using a receiver with Dolby Digital and DTS decoding capabilities and an optical digital input. This connection requires selection of “Digital Out SPDIF” (Step 16, page 25). DV-HD805_En.indb 480i (480i/576i) output only regardless of the resolution settings ( page 23) or the connections of other output jack. This connection only sends video signals. Be sure to make audio connection on page 17. Caution • When you are connecting (via the HDMI OUT jack) an AV decoder that does not have Dolby Digital or DTS decoding capability, be sure to set “Digital Out HDMI” ( page 25) to “PCM” or “Downmixed PCM”. Otherwise, high volume sound may damage your hearing as well as the speakers. Note • You may need to adjust the HDMI audio output to match the capabilities of your AV amplifier. In this case, set “Digital Out HDMI” ( page 25) to “PCM”. * To use the digital output, use an optical /coaxial cable to connect either of these jacks to an audio input on a device capable of processing Dolby Digital, DTS...
  • Page 18 . Preparation.(Continued) Via.5.1ch.analog.audio.output This connection requires selection of “Speaker Setting” (Step 16, Via.analog.audio.output Sound is output only in 2ch format. DV-HD805_En.indb page 26). This connection only sends audio signals. Be sure to make video connection on page 16. 2007/10/09 16:33:32...

  • Page 19: Step 3: Lan Connection

    Step.3:.LAN.connection You may use the internet connection feature to update the player’s firmware. See page 41. Some HD DVD discs may enable you to access special HD DVD sites, if you connect the player to the Internet via an always-on broadband connection. For example, if an HD DVD site includes content such as links to future movie trailers, you can watch the content on the player via the Internet. You do not need to connect to a PC to use this function. Read the notes on page 33 as well. Note • Depending on the internet service provider (ISP), the number of devices that can receive internet service may be limited by the applicable terms of service. For details, contact your ISP. DV-HD805_En.indb Caution • When plugging or unplugging the LAN cable, hold the plug portion of the cable. • When unplugging, do not pull on the LAN cable but unplug while pressing down on the lock. • Do not connect a modular phone cable to the ETHERNET port. • Since there are various connection configurations, please follow the specifications of your telecommunication carrier or internet service provider. 2007/10/09 16:33:32...

  • Page 20: Step 4: Power Connection

    . Preparation.(Continued) Step.4:.Power.connection After completing all connections, connect the supplied power cord to the AC INLET socket and a wall outlet. Step.5:.Powering.on Turn.on.the.TV.or.monitor,.and.select.the.. input.which.the.player.is.connected.to. Press.ON/STANDBY.. DV-HD805_En.indb STANDBY indicator on the player illuminates in red. Caution • Do not power this player using any power cord other than the one supplied with this player. • Do not use the supplied power cord with any device other than this player. When the power turns on, STANDBY indicator on the front panel changes color from red (standby mode) to blue (operation). Start up (and disc loading ( .page 29)) may take time. When you power on this player for the first time, the setting menu will appear. Go to Step 6 to make the necessary setup. .. T o.power.off.the.player Press ON/STANDBY. 2007/10/09 16:33:33...

  • Page 21: Step 6: Setting Up The Player

    Step.6:.Setting.up.the.player Make the settings which are necessary to operate the player. DV-HD805_En.indb .Make.sure.that.the.following.menu.is.displayed... (If.not,.press.SETUP.to.display.it.) SETUP MENU Picture Audio Language Ethernet General A:.Language .Press. ./. .to.select.“Language”,.then.press.OK. .Press. ./. .to.select.“On.Screen.Language”,.then.press.OK. .Press. ./. .to.select.the.language.you.want.use.for.on-screen. displays,.then.press.OK. .Press.RETURN.or. .to.return.to.the.menu.of.step.1. 2007/10/09 16:33:34...

  • Page 22: B: Time

    . Preparation.(Continued) B:.Time .Press. ./. .to.select.“General”,.then.press.. SETUP MENU Picture Audio Language Ethernet General .Press. ./. .to.select.“Clock.Set”,.then.press. .Confirm.the.time.is.correct. .If.the.time.is.correct,.select.“OK”.by. ./. ,. then.press.OK.to.return.to.the.menu.of.step. When the time needs to be corrected, set each item using the following buttons. e.g. DV-HD805_En.indb . . P ress.RETURN.or. .to.return.to.the.menu.of. step.1. e.g. Parental Lock Clock Set OSD On/Off Remote Controller Sound Screen Saver Maintenance Twin Format Disc...

  • Page 23: C: Resolution

    C:.Resolution. Press. ./. .to.select.“Picture”,.then.press.OK. . Press. ./. .to.select.“Resolution.Setting”,.then.press.OK. . Press. ./. .to.select.the.resolution.according.to.the.performance.of.your.TV.as.shown.in.the. table.below,.then.press.OK. TV input HDMI input HDMI INPUT Component video input S-VIDEO or VIDEO (yellow) input • You may find that setting the output resolution of the player to match as closely as possible the native resolution of your display provides the best picture performance (e.g., 720p for 720p and 1080p for 1080p). • Refer to the table on the next page as well. For.best.viewing.of.film.movie.material.(24p.output) .. Movies that are produced on film, as opposed to video, are traditionally captured at a frame rate of 24 frames per second. Your player can maintain the 24 frames per second frame rate of such movies, allowing you to enjoy them in their native form. To enable this feature, connect an HD display capable of accepting a 1080p/24Hz signal and select “up to 1080p/24Hz.” Note • Most film based HD DVDs display images at 24 frames per second and video based HD DVDs display images at 30 frames or 60 fields per second. Depending on the content, “up to 1080p/24Hz” may lower smoothness of playback and/or reduce vertical resolution. In the case of video based HD DVDs, we recommend that the output resolution setting is changed from “up to 1080p/24Hz”.
  • Page 24 . Preparation.(Continued) Settings.and.actual.output.resolution Maximum of the player’s actual resolution according to a connected HDMI TV. The order of precedence is 1080p>1080i>720p>480p (480p/576p). Fixed. However, when an HDMI TV is also connected to the player, the player will select resolution in the same manner as in HDMI connection, i.e., . . P ress.RETURN.or. .to.return.to.the.menu.of.step.1. DV-HD805_En.indb 2007/10/09 16:33:36...

  • Page 25: D: Audio Output

    D:.Audio.output. Press. ./. .to.select.“Audio”,.then.press.OK. . When.you.connected.an.audio.system.to.the.DIGITAL.AUDIO.OUTPUT.OPTICAL/COAXIAL.jack.. page.17): Press. ./. .to.select.“Digital.Out.SPDIF”,.then.press.OK. Select.one.of.the.followings.according.to.your.connection,.and.press.OK.. Bitstream When.an.AV.receiver.or.processor.equipped.with.built-in.Dolby.Digital,.DTS.or.MPEG. decoder.is.connected.to.this.player. When you play a disc recorded in Dolby Digital Plus or Dolby TrueHD format, Dolby Digital sound is output. When you play a disc recorded in DTS-HD format, the sound is converted to a DTS bitstream. If the AV receiver or processor does not support DTS, select “PCM”. When.a.2ch.digital.stereo.amplifier.is.connected.to.this.player. When you play an HD DVD or DVD video disc recorded in Dolby Digital, Dolby Digital Plus, Dolby TrueHD, DTS or DTS-HD format, sound is converted into PCM (2ch) format. When.you.connected.an.HDMI.device.to.the.HDMI.OUT.jack.( Press. ./. .to.select.“Digital.Out.HDMI”,.then.press.OK. Select.one.of.the.followings.according.to.your.connection,.and.press.OK. When.an.HDMI.device.equipped.with.built-in.Dolby.Digital,.DTS,.MPEG.or.linear.PCM. decoder.is.connected.to.this.player.. When you play a disc recorded in Dolby Digital Plus, Dolby TrueHD or DTS-HD, PCM is output (core only for DTS-HD). When you play a disc recorded in Dolby Digital or DTS format, digital audio signal (bitstream audio) is output. If a connected HDMI device does not support Dolby Digital, DTS or MPEG, sound is converted into linear PCM to output. To output high bitrate audio, select “Auto”, then make another setting. For details, see page 34. When.an.HDMI.device.which.has.multi.channel.input.is.connected.to.this.player.. When you play an HD DVD or DVD video disc recorded in multi channel in Dolby Digital, Dolby Digital Plus, Dolby TrueHD, DTS or DTS-HD format, the sound is decoded and output in multi channel in linear PCM format. Downmixed.PCM When.a.2ch.digital.stereo.AV.receiver.or.processor.is.connected.to.this.player. When you play a DVD video disc recorded in Dolby Digital, DTS, MPEG1 or MPEG2 format, sound is converted into PCM (2ch) format to output.
  • Page 26 . Preparation.(Continued) When.you.connected.an.audio.system.to.the.ANALOG.AUDIO.OUTPUT.jacks.( Press. ./. .to.select.“Speaker.Setting”,.then.press.OK. Select.one.of.the.followings.according.to.your.connection,.and.press.OK. When.a.5.1.channel.surround.system.is.connected.to.this.player.. 1 S et the speaker sizes, distance to each speaker and the crossover frequency..Front.Left./.Front.Right. S mall: Select if the speaker cannot output low frequency. L arge: Select if the speaker can output low frequency. C enter./.L.Surround./.R.Surround. S mall: Select if the speaker cannot output low frequency. L arge: Select if the speaker can output low frequency. N one: When the speaker is not connected. S ubwoofer U se: When a subwoofer is connected. D on’t Use: When a subwoofer is not connected. C rossover.Setting L ow frequency under this frequency (80Hz / 100Hz / 120Hz) will be output to a connected subwoofer. . f t.(m) S elect a distance to each speaker from the listening position. 2 S elect “Next”, then press OK.

  • Page 27: E: Ethernet

    E:.Ethernet Perform this setting if you connect the player to your LAN ( page 19). After performing this setting, you need to turn off this player and turn it on again to activate this setting. If you do not connect, skip to Step 20. . Press. ./. .to.select.“Ethernet”,.then.press.OK. . Press. ./. .to.select.each.of.the.followings,.then.press.OK. DHCP 56kbps Modem Cookie Setting Accept 1 DHCP The network information is automatically set. Subnet Mask The DNS server is obtained automatically from the DHCP server. Confirming starts. If the setup is successful, an IP address appears.
  • Page 28 . Preparation.(Continued) Network Speed Select the speed and press OK button. For other speeds: 1 Select “Other” and press OK button. Network Speed (Other) 1 kbps Cancel 2 Specify the speed by number buttons. 3 Select “OK” and press OK button. .

  • Page 29: Playing

    Select a title by / / / (or number.buttons), then press OK. Playback starts from chapter 1 of the selected title. • Depending on the disc, you may need to press TOP MENU or MENU to display a top menu. Discs recorded on personal devices such as DVD recorders may contain menus, on which items can DVD-RW DVD-R be easily selected. Press MENU, and select a title by / / / , then press OK. Playback starts from the selected item. • Discs recorded in DVD VR mode display the recorded contents not in thumbnails but in a list. Select an item on the list and press OK button. Notes • Use the button on the front panel or the remote control to open and close the disc tray. Do not push or hold the disc tray while it is moving. Doing so may cause the player to malfunction. • Do not load a disc which is unplayable, or any object other than a playable disc. • Do not apply downforce to the disc tray. Doing so may cause the player to malfunction. • If the disc tray stops while closing, the mechanical protection system of this player will open it. Do not force it to close. Doing so may damage the disc tray. • If the disc tray will not open, turn the player off, and press open the disc tray. If it still won’t open, contact your Onkyo dealer. DV-HD805_En.indb When using a double-sided disc, turn the label of the playing side up. (PLAY). (OPEN/CLOSE) on the front panel. This may turn the player on and 2007/10/09 16:33:39...

  • Page 30: To Pause Playback

    . Playing.(Continued) HD.DVD Press To resume press HD.DVD Press. .(STOP). HD.DVD After.stopping.playback,.press.RESUME.PLAY.( DVD-RW If you want to return to the beginning, press Notes • Pressing • Resume feature cannot function when: - you select a disc menu language ( page 38) or change the parental lock setting ( page 40). - you open the disc tray. • There may be a difference in the location where playback resumes depending on the disc. • It is possible to change the setting from the setup menu while the player retains a location in • Some discs or scenes may not permit this operation. • While the ADV indicator on the front panel illuminates, this feature is not available. HD.DVD Button SLOW* TOP.MENU* Note • If the player freezes for about 15 minutes or more and will not respond to any buttons, holding down ON/STANDBY button on the front panel for about 10 seconds can force the player to turn off. However, this is an emergency measure, which may cause damage to the player. Avoid casual use of this measure. DV-HD805_En.indb To.pause.playback DVD-Video...

  • Page 31: To Select The Sound

    Number buttons To.select.the.sound HD.DVD DVD-Video DVD-RW DVD-R If a disc contains several languages, you can select a preferred language from them to hear. .During.playback,.press.AUDIO. The current audio setting appears. (except for some HD DVD discs) e.g. Audio English.1 A language code ( page 39) may appear. .Press.AUDIO.while.the.audio.setting.is. displayed.on.the.TV.screen. Notes • Some discs allow you to change audio selections only via the disc menu. If this is the case, press MENU button and choose the appropriate language from the selections on the disc menu. • When you turn on the player or replace a disc, the player returns to the initial default setting ( page 38). Depending on a disc, a specific type of audio the disc has is output. • Immediately after you have switched audio output modes, there may be a temporary discrepancy between the display and actual sound. DV-HD805_En.indb To.select.subtitles. HD.DVD DVD-Video You can display subtitles on the TV and select a subtitle language from those included on the disc. .During.playback,.press.SUBTITLE.

  • Page 32: To Locate A Position

    . Playing.(Continued) To.locate.a.position HD.DVD DVD-Video DVD-RW DVD-R .Press.T.SEARCH.repeatedly.to.select.the. category. Category To.search.by.specifying: Title Title number Chapter Chapter number Time Elapsed time of the current title (track) Track Track number .Press.the.number.buttons.to.enter.a.number. e.g. To enter 25: “2” “5” e.g. To enter 1 hour, 25 minutes, and 30 seconds: “1” “2” “5” “3” “0” Pressing CLEAR resets the numbers. .Press.OK. Playback starts from the specified location. Notes • Some discs may not permit these operations. • While the ADV indicator on the front panel illuminates, these features are not available. To.play.repeatedly HD.DVD DVD-Video DVD-RW DVD-R...

  • Page 33: Hd Dvd Playing Options In The Future

    HD.DVD Use these buttons as indicated by the video display during HD DVD disc playback. Depending on the disc contents, the functions of each button may differ. HD.DVD Future HD DVD discs may include game software and drawing software. If they do you can use the cursor function for some software. HD.DVD The extension port may be used in the future for additional control options. Requirements.for.HD.DVD.discs/Web-enabled.network.content. • An always-on broadband internet connection • An HD DVD disc containing or having the capability of downloading studio-provided, web-enabled network content. Notes • To minimize any potential compatibility and/or connectivity issues, before attempting to view any studio-provided web-enabled, network content, it is recommended that you perform the firmware update process to ensure that you HD DVD player is using the latest firmware version. • Onkyo is not responsible for any malfunction of the player and/or the internet connection feature due to communication errors/malfunctions associated with your broadband internet connection, or other connected equipment. • Onkyo is not responsible for any trouble in your internet connection. • If you wish to use a wireless network to connect the player, you will need to use a wireless LAN ethernet adapter to connect the player to the network. • The features of HD DVD discs made available through the Internet Connection feature are not created or provided by Onkyo, and Onkyo is not responsible for their functionality or continued availability. Some disc related material available by the Internet Connection may not be compatible with this player. If you have questions about such content, please contact the producer of the disc. • Some internet contents may require a higher bandwidth connection. • Even if the player is properly connected and configured, some internet contents may not operate properly because of internet congestion, the quality or bandwidth of your internet service, problems at the provider of the content or compatibility issues. • Some internet connection operations may not be possible due to certain restrictions set by the Internet service provider (ISP) supplying your broadband Internet connection. • Any fees charged by an ISP including, without limitation, connection charges are your responsibility. • A 10 Base-T or 100 Base-TX LAN port is required for connection to this player. If your internet service does not allow for such a connection, you will not be able to connect the player.

  • Page 34: Output.sound.conversion.table

    . Output.sound.conversion.table Disc Audio format indicator HD DVD DD Plus/Dolby TrueHD Video dts-HD/L-PCM Advanced content DD plus True HD 48kHz 96kHz HD DVD 192kHz Video (off) dts-HD Standard L-PCM 48kHz content 96kHz 192kHz MPEG L-PCM 48kHz DVD-Video (off) 96kHz MPEG L-PCM 44.1kHz (off) dts 44.1kHz (off) DVD-VR L-PCM MPEG Disc Audio format indicator HD DVD DD Plus/Dolby TrueHD Video...

  • Page 35: Customizing The Function Settings

    . Customizing.the.function.settings You.can.change.the.default.settings.to.customize.performance.to.your.preference. Group Setting Disc Picture TV Shape HD.DVD Enhanced Black HD.DVD Level (North American models only) RGB Output HD.DVD Range Picture Mode HD.DVD Resolution Setting HD.DVD Audio Digital Out SPDIF HD.DVD Digital Out HDMI HD.DVD Digital Direct Audio HD.DVD Mode Dynamic Range HD.DVD Control Dialog Enhancement HD.DVD Speaker Setting HD.DVD DV-HD805_En.indb During.stop,.press.SETUP. “SETUP MENU” appears. Press. ./. .to.select.the.group.that.contains.a.desired.item,.then. press.OK.
  • Page 36 . Customizing.the.function.settings.(Continued) Group Setting Disc Language Disc Menu Language HD.DVD Subtitle Language HD.DVD Audio Language HD.DVD On Screen HD.DVD Language Ethernet HD.DVD General Parental Lock HD.DVD Clock Set HD.DVD OSD On/Off HD.DVD Remote Controller HD.DVD Sound Screen Saver HD.DVD (North American models only) Maintenance HD.DVD Twin Format Disc HD.DVD Settings Picture Note • Actual effects of these settings may vary depending on performance of connected device. TV.Shape 16:9 Select when a 16:9 wide TV is connected.
  • Page 37 RGB.Output.Range Standard For a monitor of RGB range 16-235. Enhanced For a monitor of RGB range 0-255. Note • If “Standard” pales black of “Enhanced” blackens too much, change the setting. Picture.Mode There are two types of source content in pictures recorded in DVD video discs: film content (pictures recorded from films at 24 frames per second) and video content (video signals recorded at 30 frames in NTSC (25 frames in PAL) per second). Make this selection according to the type of content being viewed. Film The player converts film content pictures in the progressive output format appropriately. Suitable for playback of film content pictures. Video The player filters video signal, and converts it in the progressive output format appropriately. Suitable for playback of video content pictures. Auto Select this position normally. The player automatically detects source content, film or video, of playback source, and converts that signal in the progressive output format in an appropriate method. Note • The player may not be able to detect the source (film or video) of some material. If you notice undesirable picture performance, try selecting “Film” or “Video”. Resolution.Setting See page 23. Audio Digital.Out.SPDIF See page 25. Digital.Out.HDMI See page 25. Digital.Direct.Audio.Mode output high bitrate audio to a connected amplifier equipped with Dolby Digital Plus, Dolby TrueHD or DTS-HD decoder. High bitrate audio output is enabled. (Sub audio and effect audio are disabled.) High bitrate audio output is disabled. Notes • This selection is available only when the player is connected to an amplifier equipped with Dolby Digital Plus, Dolby TrueHD or DTS HD decoder.

  • Page 38: Language Disc Menu Language

    . Customizing.the.function.settings.(Continued) Dialog.Enhancement To turn on or off a function that increases dialog volume of a disc playback. This function is activated. This function is disabled. Notes • This function is effective only in playback of Dolby Digital recorded HD DVD or DVD video discs. • The effect level of this function vary depending on the disc. Speaker.Setting See page 26. Language Disc.Menu.Language To select a preferred language for disc menus. English./.French./.Japanese./.German./.Spanish./.Italian./.Dutch./.Russian./.Swedish./.Finnish./.Greek./.Turkish Other To make a further language choice. Refer to “How to select a language” ( page 39). Note • Some discs may be played in a different language from that you selected, as the disc may contain alternate language. Subtitle.Language To select a preferred language for subtitles. English./.French./.Japanese./.German./.Spanish./.Italian./.Dutch./.Russian./.Swedish./.Finnish./.Greek./.Turkish None To disable subtitles. Other To make a further language choice. Refer to “How to select a language” ( Notes • Some discs may be set to display subtitles in a different language from that you selected, as the disc may contain alternate language. • Some discs allow you to change subtitle selections only via the disc menu. In this case, press MENU button and choose the appropriate subtitle language from the selection on the disc menu. Audio.Language To select a preferred language for the sound track.

  • Page 39: Language

    How.to.select.a.language: 1) O btain the code from the list below. 2) Enter the code as below. 3) Select “OK” and press OK button. Language.code.list Code Language Code Language No alternate Bhutani – – – language Greek CHI (ZH) Chinese Esperanto DUT (NL) Dutch Estonian ENG (EN) English Basque FRE (FR) French Persian GER (DE) German Finnish ITA (IT) Italian Fiji JPN (JA) Japanese Faroese KOR (KO) Korean Frisian MAY (MS) Malay Irish SPA (ES)

  • Page 40: General Parental Lock

    . Customizing.the.function.settings.(Continued) Ethernet See page 27. General Parental.Lock HD DVD and DVD video discs equipped with the Parental Lock function have a predetermined limitation level. The limitation level or limitation method may differ depending on the disc. For example the whole contents of a disc may not be played back, or an extreme violent scene may be cut or replaced automatically by another scene. Important • Depending on discs, it may not be evident whether the disc is compatible with Parental Lock function. Make sure that Parental Lock function you set is activated correctly. 1.. E nter.a.4-digit.password.by.using.the.number.buttons,.then.press.OK.button. W hen you use the player for the first time, set a new password of 4-digit. If you make a mistake entering your password, press CLEAR button before pressing OK button, and re-enter the correct password. 2.. S et.the.details..a).Select.“On”.or.“Off”.by.pressing. ./. .buttons. ...b).Enter.the.code.of.a.country/area.whose.standards.were.used.to.rate.a.disc,.referring.to.the.list.below. Country/Area Code AUSTRALIA BELGIUM CANADA CHINA CHINA HONG KONG DENMARK FINLAND FRANCE GERMANY ...c).Select.the.desired.limitation.level.

  • Page 41: Osd On/Off

    OSD.On/Off To activate or deactivate the operational status display on the TV screen. Activates the operational status display (e.g., ) on the TV screen. Deactivates the operational status display (e.g., ) on the TV screen. Remote.Controller.Sound To turn on or off the confirmation beeper announcing when each remote command is received. Turns on the beep sound. Turns off the beep sound. Screen.Saver.(North.American.models.only) Auto.Power.Off Turns the player off if stop mode or picture pausing continues for about 20 minutes. Activates the screen saver if stop mode or picture pausing continues for about 20 minutes. Deactivates the screen saver. Notes • Onkyo does not guarantee that this function will protect your display. • To close the screen saver, press any button on the player or the remote control. • When an HD DVD disc is used, this function activates only in stop mode. Maintenance. Initialize To reset all the settings listed on page 35, 36 to factory set default. Press / buttons to select “Yes” then press OK button. Update.(Firmware. If you have a broadband internet service, you may obtain firmware update over the internet using the ETHERNET port on the back of your player. update) • . B EFORE.BEGINNING.THE.FIRMWARE.UPDATE.PROCESS,.BE.SURE.TO.REMOVE.ANY.DISCS. FROM.YOUR.PLAYER. Please configure the ETHERNET port ( page 19). You may need to turn on DHCP and DNS ( page 27).

  • Page 42: Before Calling Service Personnel

    • I f video from the player is watched via a video recorder or on a TV with a built-in video recorder, the copy guard may prevent images from being displayed properly. Be sure to connect the player directly to the TV. Playback picture does not • “ Resolution Setting” > “up to 1080p/24Hz” is selected. Change the setting. move smoothly. The remote control does not • A re the batteries of the remote control dead? Replace the batteries. work. • M ake sure the remote control is within range and pointed in the correct direction. Screen freezes and no • P ressing ON/STANDBY button on the player for approximately ten seconds forces the buttons work. player to turn off. Turn the player off and then on again. After powering on, “Clock Set” • The power supply to the player may have been disconnected. Reset the clock. menu appears. The DV-HD805 contains a microcomputer for signal processing and control functions. In very rare situations, severe interference, noise from an external source, or static electricity may cause it to lockup. In the unlikely even that this should happen, unplug the power cord from the wall outlet, wait at least five seconds, and then plug it back in again. DV-HD805_En.indb Page – 17, 23 – – – – 2007/10/09 16:33:47...
  • Page 43 . License.information.on.the.software.used.in.the.Onkyo.HD.DVD.player This.document.is.statement.purpose.only..Not.concerned.with.operation.of.this.product. The software pre-installed in the Onkyo HD DVD player consists of multiple, independent software components. Each software component is copyrighted by Onkyo or a third party. The Onkyo HD DVD player uses software components that are distributed as freeware under a third-party end-user license agreement or copyright notice (hereinafter referred to as a “EULA”). Some EULAs require that the source code of the applicable component be disclosed as the condition for distributing the software component in executable format. Please contact your Onkyo dealer to check the software components subject to such EULA requirements. Onkyo provides a warranty for the Onkyo HD DVD player you have purchased under conditions set forth by Onkyo. However, some of the software components distributed under an EULA are made available for use by the user on the assumption that they are not copyrighted or warranted by Onkyo or any third party. These software components are licensed to the user free of charge and therefore not covered by any warranty within the scope of the applicable laws. These software components are not subject to any copyrights or other third-party rights and are provided in “as is” condition without any warranty, whether express or implied.“Warranty” here includes, but not limited to, an implied warranty for marketability or fitness for specific uses. All risks associated with the quality or performance of these software components are assumed by the user. Onkyo shall not be liable whatsoever for any cost of repair or correction or other incidental expense incurred in connection with a defect found in any of these software components. Unless specified under the applicable laws or in a written agreement, a party who changes or redistributes the software with consent from the copyright holders or based on the aforementioned licenses shall not be held liable whatsoever for any loss arising from the use of or inability to use such software components. The same applies even when the copyright holders or relevant third parties have been informed of the possibility of such loss. “Loss” here includes normal, special, incidental and indirect loss (including, but not limited to, the loss of data or its accuracy; loss incurred by the user or any third party; and interface incompatibility with other software). Please read each EULA for details on the use conditions and items that must be observed regarding these software components. The table below lists the software components pre-installed in the Onkyo HD DVD player, which are subject to EULAs. The user should read the applicable EULAs carefully before using these software components. The EULAs are exhibited in their original text (English) as exactly written by the respective parties other than Onkyo Pre-installed.software Linux Kernel Exhibit A Busybox glibc Exhibit B E.x.h.i.b.i.t.A GNU.GENERAL.PUBLIC.LICENSE.Version.2,.June.1991 Copyright © 1989, 1991 Free Software Foundation,Inc. 59 Temple Place, Suite 330, Boston, MA 02111-1307 Everyone is permitted to copy and distribute verbatim copies of this license document, but changing it is not allowed. Preamble The licenses for most software are designed to take away your freedom to share and change it. By contrast, the GNU General Public...
  • Page 44 . License.information.on.the.software.used.in.the.Onkyo.HD.DVD.player.(Continued) GNU.GENERAL.PUBLIC.LICENSE.TERMS.AND.CONDITIONS. FOR.COPYING,.DISTRIBUTION.AND.MODIFICATION 0. This License applies to any program or other work which contains a notice placed by the copyright holder saying it may be distributed under the terms of this General Public License. The "Program", below, refers to any such program or work, and a "work based on the Program" means either the Program or any derivative work under copyright law: that is to say, a work containing the Program or a portion of it, either verbatim or with modifications and/or translated into another language. (Hereinafter, translation is included without limitation in the term "modification".) Each licensee is addressed as "you". Activities other than copying, distribution and modification are not covered by this License;they are outside its scope. The act of running the Program is not restricted, and the output from the Program is covered only if its contents constitute a work based on the Program (independent of having been made by running the Program). Whether that is true depends on what the Program does. 1.You may copy and distribute verbatim copies of the Program's source code as you receive it, in any medium, provided that you conspicuously and appropriately publish on each copy an appropriate copyright notice and disclaimer of warranty; keep intact all the notices that refer to this License and to the absence of any warranty; and give any other recipients of the Program a copy of this License along with the Program. You may charge a fee for the physical act of transferring a copy, and you may at your option offer warranty protection in exchange for a fee. 2.You may modify your copy or copies of the Program or any portion of it, thus forming a work based on the Program, and copy and distribute such modifications or work under the terms of Section 1 above, provided that you also meet all of these conditions: a) You must cause the modified files to carry prominent notices stating that you changed the files and the date of any change. b) You must cause any work that you distribute or publish, that in whole or in part contains or is derived from the Program or any part there of, to be licensed as a whole at no charge to all third parties under the terms of this License. c) If the modified program normally reads commands interactively...
  • Page 45 For example, if a patent license would not permit royalty-free redistribution of the Program by all those who receive copies directly or indirectly through you, then the only way you could satisfy both it and this License would be to refrain entirely from distribution of the Program. If any portion of this section is held invalid or unenforceable under any particular circumstance, the balance of the section is intended to apply and the section as a whole is intended to apply in other circumstances. It is not the purpose of this section to induce you to infringe any patents or other property right claims or to contest validity of any such claims; this section has the sole purpose of protecting the integrity of the free software distribution system, which is implemented by public license practices. Many people have made generous contributions to the wide range of software distributed through that system in reliance on consistent application of that system; it is up to the author/donor to decide if he or she is willing to distribute software through any other system and a licensee cannot impose that choice. This section is intended to make thoroughly clear what is believed to be a consequence of the rest of this License. 8.If the distribution and/or use of the Program is restricted in certain countries either by patents or by copyrighted interfaces, the original copyright holder who places the Program under this License may add an explicit geographical distribution limitation excluding those countries, so that distribution is permitted only in or among countries not thus excluded. In such case, this License incorporates the limitation as if written in the body of this License. 9.The Free Software Foundation may publish revised and/or new versions of the General Public License from time to time. Such new versions will be similar in spirit to the present version, but may differ in detail to address new problems or concerns. Each version is given a distinguishing version number. If the Program specifies a version number of this License which applies to it and "any later version", you have the option of following the terms and conditions either of that version or of any later version published by the Free Software Foundation. If the Program does not specify a version number of this License, you may choose any version ever published by the Free Software Foundation. 10.If you wish to incorporate parts of the Program into other free programs whose distribution conditions are different, write to the author to ask for permission. For software which is copyrighted by the Free Software Foundation, write to the Free Software Foundation;...
  • Page 46 . License.information.on.the.software.used.in.the.Onkyo.HD.DVD.player.(Continued) E.x.h.i.b.i.t.B GNU.LESSER.GENERAL.PUBLIC.LICENSE.Version.2.1,.February.1999 Copyright © 1991, 1999 Free Software Foundation, Inc. 59 Temple Place, Suite 330, Boston, MA 02111-1307 USA Everyone is permitted to copy and distribute verbatim copies of this license document, but changing it is not allowed. [This is the first released version of the Lesser GPL. It also counts as the successor of the GNU Library Public License, version 2, hence the version number 2.1.] Preamble The licenses for most software are designed to take away your freedom to share and change it. By contrast, the GNU General Public Licenses are intended to guarantee your freedom to share and change free software – to make sure the software is free for all its users. This license, the Lesser General Public License, applies to some specially designated software packages – typically libraries – of the Free Software Foundation and other authors who decide to use it. You can use it too, but we suggest you first think carefully about whether this license or the ordinary General Public License is the better strategy to use in any particular case, based on the explanations below. When we speak of free software, we are referring to freedom of use, not price. Our General Public Licenses are designed to make sure that you have the freedom to distribute copies of free software (and charge for this service if you wish); that you receive source code or can get it if you want it; that you can change the software and use pieces of it in new free programs; and that you are informed that you can do these things. To protect your rights, we need to make restrictions that forbid distributors to deny you these rights or to ask you to surrender these rights. These restrictions translate to certain responsibilities for you if you distribute copies of the library or if you modify it. For example, if you distribute copies of the library, whether gratis or for a fee, you must give the recipients all the rights that we gave you. You must make sure that they, too, receive or can get the source code. If you link other code with the library, you must provide complete object files to the recipients, so that they can relink them with the library after making changes to the library and recompiling it. And you must show them these terms so they know their rights. We protect your rights with a two-step method: (1) we copyright the library, and (2) we offer you this license, which gives you legal permission to copy, distribute and/ or modify the library.
  • Page 47 2.You may modify your copy or copies of the Library or any portion of it, thus forming a work based on the Library, and copy and distribute such modifications or work under the terms of Section 1 above, provided that you also meet all of these conditions: a) The modified work must itself be a software library. b) You must cause the files modified to carry prominent notices stating that you changed the files and the date of any change. c) You must cause the whole of the work to be licensed at no charge to all third parties under the terms of this License. d) If a facility in the modified Library refers to a function or a table of data to be supplied by an application program that uses the facility, other than as an argument passed when the facility is invoked, then you must make a good faith effort to ensure that, in the event an application does not supply such function or table, the facility still operates, and performs whatever part of its purpose remains meaningful. (For example, a function in a library to compute square roots has a purpose that is entirely welldefined independent of the application. Therefore, Subsection 2d requires that any applicationsupplied function or table used by this function must be optional: if the application does not supply it, the square root function must still compute square roots.) These requirements apply to the modified work as a whole. If identifiable sections of that work are not derived from the Library, and can be reasonably considered independent and separate works in themselves, then this License, and its terms, do not apply to those sections when you distribute them as separate works. But when you distribute the same sections as part of a whole which is a work based on the Library, the distribution of the whole must be on the terms of this License, whose permissions for other licensees extend to the entire whole, and thus to each and every part regardless of who wrote it. Thus, it is not the intent of this section to claim rights or contest your rights to work written entirely by you; rather, the intent is to exercise the right to control the distribution of derivative or collective works based on the Library. In addition, mere aggregation of another work not based on the Library with the Library (or with a work based on the Library) on a volume of a storage or distribution medium does not bring the other work under the scope of this License. 3.You may opt to apply the terms of the ordinary GNU General Public License instead of this License to a given copy of the Library. To do this, you must alter all the notices that refer to this License, so that they refer to the ordinary GNU General Public License, version 2, instead of to this...
  • Page 48 . License.information.on.the.software.used.in.the.Onkyo.HD.DVD.player.(Continued) a) Accompany the combined library with a copy of the same work based on the Library, uncombined with any other library facilities. This must be distributed under the terms of the Sections above. b) Give prominent notice with the combined library of the fact that part of it is a work based on the Library, and explaining where to find the accompanying uncombined form of the same work. 8.You may not copy, modify, sublicense, link with, or distribute the Library except as expressly provided under this License. Any attempt otherwise to copy, modify, sublicense, link with, or distribute the Library is void, and will automatically terminate your rights under this License. However, parties who have received copies, or rights, from you under this License will not have their licenses terminated so long as such parties remain in full compliance. 9.You are not required to accept this License, since you have not signed it. However, nothing else grants you permission to modify or distribute the Library or its derivative works. These actions are prohibited by law if you do not accept this License. Therefore, by modifying or distributing the Library (or any work based on the Library), you indicate your acceptance of this License to do so, and all its terms and conditions for copying, distributing or modifying the Library or works based on it. 10.Each time you redistribute the Library (or any work based on the Library”, the recipient automatically receives a license from the original licensor to copy, distribute, link with or modify the Library subject to these terms and conditions. You may not impose any further restrictions on the recipients' exercise of the rights granted herein. You are not responsible for enforcing compliance by third parties with this License. 11.If, as a consequence of a court judgment or allegation of patent infringement or for any other reason (not limited to patent issues), conditions are imposed on you (whether by court order, agreement or otherwise) that contradict the conditions of this License, they do not excuse you from the conditions of this License. If you cannot distribute so as to satisfy simultaneously your obligations under this License and any other pertinent obligations, then as a consequence you may not distribute the Library at all. For example, if a patent license would not permit royalty-free redistribution of the Library by all those who receive copies directly or indirectly through you, then the only way you could satisfy both it and this License would be to refrain entirely from distribution of the Library.
  • Page 49 E.x.h.i.b.i.t.C LICENSE ISSUES The OpenSSL toolkit stays under a dual license, i.e. both the conditions of the OpenSSL License and the original SSLeay license apply to the toolkit. See below for the actual license texts. Actually both licenses are BSD-style Open Source licenses. In case of any license issues related to OpenSSL please contact openssl-core@openssl.org. OpenSSL License Copyright © 1998-2002 The OpenSSL Project. All rights reserved. Redistribution and use in source and binary forms, with or without modification, are permitted provided that the following conditions are met: 1. Redistributions of source code must retain the above copyright notice, this list of conditions and the following disclaimer. 2. Redistributions in binary form must reproduce the above copyright notice, this list of conditions and the following disclaimer in the documentation and/or other materials provided with the distribution. 3. All advertising materials mentioning features or use of this software must display the following acknowledgment: "This product includes software developed by the OpenSSL Project for use in the OpenSSL Toolkit. (http://www.openssl.org/)" 4. The names "OpenSSL Toolkit" and "OpenSSL Project" must not be used to endorse or promote products derived from this software without prior written permission. For written permission, please contact openssl-core@openssl.org. 5. Products derived from this software may not be called "OpenSSL" nor may "OpenSSL" appear in their names without prior written permission of the OpenSSL Project. 6. Redistributions of any form whatsoever must retain the following acknowledgment: "This product includes software developed by the OpenSSL Project for use in the OpenSSL Toolkit (http:// www.openssl.org/)" THIS SOFTWARE IS PROVIDED BY THE OpenSSL PROJECT "AS IS" AND ANY EXPRESSED OR IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE DISCLAIMED. IN NO EVENT SHALL THE OpenSSL PROJECT OR ITS CONTRIBUTORS BE LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT LIMITED TO, PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES; LOSS OF USE, DATA, OR PROFITS; OR BUSINESS...

  • Page 50: Specification

    . Specification ... P ower.requirement North American Models: 4 7.0W European Models: 50.0W ... P ower.supply North American: 120V AC 60Hz European: 2 20 - 240V AC 50/60Hz ... M ass 4.3kg ... E xternal.dimension Width 435 x Height 73 x Depth 346mm (17-1/8" × 2-7/8" × 13-5/8") ... S ignal.system North American Models: Standard NTSC Color TV system European Models: Standard PAL/NTSC Color system ... L aser Semiconductor laser Wavelength: 405nm/650nm/780nm ... V IDEO.output 1.0Vp-p (75W), Sync signal negative, Pin jack x 1 system ...
  • Page 51 . Memo DV-HD805_En.indb 2007/10/09 16:33:50...
  • Page 52 DV-HD805_En.indb 2007/10/09 16:33:50...
