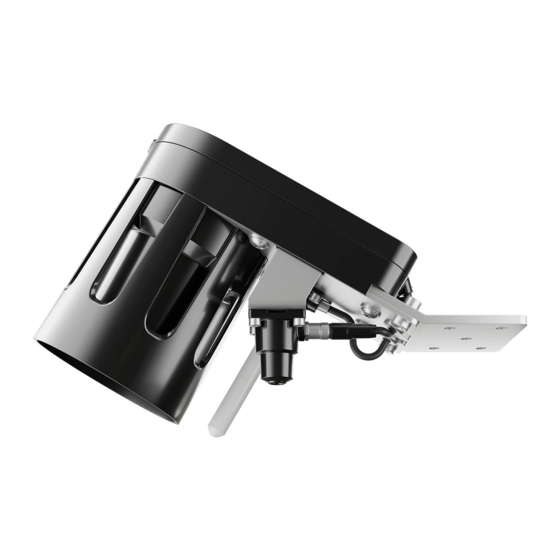

Vaisala MD30 Installation Manual
Mobile detector
Hide thumbs
Also See for MD30:
- Usage instructions (64 pages) ,
- Setup manual (24 pages) ,
- Reference manual (16 pages)
Advertisement
Installation
Guide
Mounting MD30 on towing hook
To use MD30FRONTMOUNT, you need a towing hook installed on your vehicle as instructed in your car
manufacturer's manual.
•
MD30FRONTMOUNT mounting adapter
•
19-mm wrench
•
2.5-mm and 3-mm Allen keys
•
Torx T15
Table 1 MD30FRONTMOUNT contents
Part
Mounting bracket
Torx socket head screw M4×12
Mounting block
Countersunk hex socket head screw M4×16
Hex head bolt screw M12×50
Shaft
Mount MD30 on the towing hook with MD30FRONTMOUNT. The measurement angle is automatically
correct when the mounting bracket is positioned vertically.
Road surface
When using towing hook mounting, you can still use MD30EXTSET to mount the air temperature and
humidity sensor HMP113 and surface temperature sensor MT10 elsewhere on the vehicle for optimum
performance. In that case, install them last. See Mounting Temperature Sensors Separately Installation
Guide.
PUBLISHED BY
Vaisala Oyj
Vanha Nurmijärventie 21
FI-01670 Vantaa, Finland
© Vaisala 2020
Mounting MD30 on Towing Hook
Vaisala Mobile Detector MD30
Pcs
Part
2
Rubber sheet
8
Metal counterplate
1
Hex self-lock nut M12
10
Fender washer A5,3
1
Hex socket head screw M5×16
1
Hex socket set screw M6×12
Figure 1 Correct measurement angle
mm
[in]
All rights reserved. Any logos and/or product names are trademarks of Vaisala or its individual partners.
Any reproduction, transfer, distribution or storage of information contained in this document is strictly
prohibited. All specifications — technical included — are subject to change without notice.
M212519EN-A
Pcs
2
1
1
1
1
2
Advertisement
Table of Contents
Related Manuals for Vaisala MD30
Summary of Contents for Vaisala MD30
- Page 1 In that case, install them last. See Mounting Temperature Sensors Separately Installation Guide. PUBLISHED BY All rights reserved. Any logos and/or product names are trademarks of Vaisala or its individual partners. Vaisala Oyj Any reproduction, transfer, distribution or storage of information contained in this document is strictly Vanha Nurmijärventie 21...
- Page 2 Installation Guide M212519EN-A Remove the pre-installed mounting bracket (MD30BRACKET). Loosen the 8 screws (M4×10) that hold the temperature sensors HMP113 and MT10 in place and remove the sensors. Their cables can remain connected during the assembly. Assemble as shown using the provided brackets and M4×12 screws. Check carefully which way to mount the brackets.
- Page 3 The towing hook does not need to be positioned horizontally. Hex head bolt screw M12×50 Shaft Rubber sheet (2 pcs) Vehicle towing hook (not supplied by Vaisala) Metal counterplate Hex self-lock nut M12...
- Page 4 Hex socket head screw M5×16 Hex socket set screw M6×12 (2 pcs) Route the MD30 cable to the Bluetooth module enclosure or other data collection system. For cabling instructions, see Vaisala Mobile Detector MD30 Setup Guide. If there are loose cables, attach them with cable ties to the vehicle structure.
