Delgard DT3248 Installation Service

!

1. WARNING

1.1 These hinges can be adjusted to close a 6' wide gate, but are optimized to close a 4' wide
gate (or smaller) when supplied with a low friction latch to conform with B.O.C.A.
specifications. However, like all mechanical devices, with age and wear, these hinges
will require periodic lubrication, readjustment and eventual replacement.
Just as you manually lock your home or car for security, you must also manually verify
the gate is secured each time, as the self-closing motion could be hampered by wind, an
obstruction, etc. Remember ,where children's safety is involved, double check all
barriers to prevent accidents.

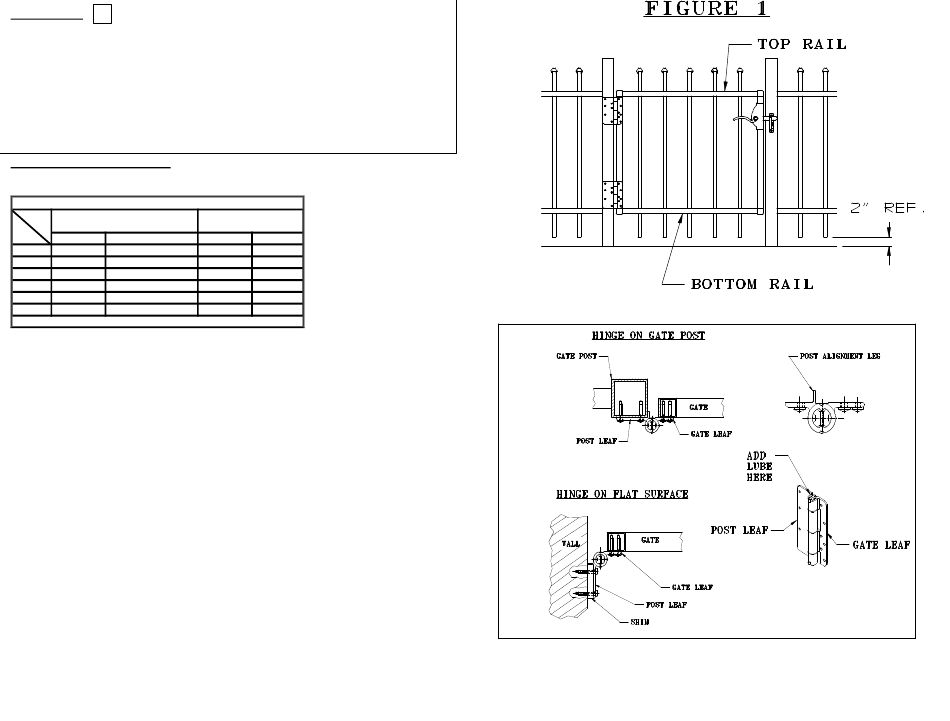

2. INSTALLATION (See Fig. 1)
2.1
HINGE SELECTION CHART
width RESIDENTIAL, X'TRA & AERO
(LIGHT USAGE)
height UP TO 4' +4' UP TO 6'
3'
2 2
4'
2 2
5' 2 2
6' 2 2
7' N/A N/A
8' N/A N/A
NOTE: Not recommended to be used on gates over 6' wide.
2.2 Place the gate on blocks at the correct elevation and clamp the hinge post leafs to the
post. Make sure the tabs are flush with gate post. The hinges should be placed within
1/4" of the gate top and bottom rails or as far apart as possible for the best performance.
Remove the gate and verify that the hinge post leafs are completely flush and plumb with
the mounting surface, to avoid binding. Attach the hinges to the post by drilling 7/64"
pilot holes and fastening with the screws provided. If a third hinge is used it
should be located below the top hinge and a fourth hinge should be located above the
bottom hinge.
2.3 Center the gate into the opening. Check elevation, plumb and clearance, and clamp the
gate to the hinge gate leafs. Drill 7/64" pilot holes and attach with the screws provided.
2.4 If the hinge is mounted on a flat surface you may need to shim out the hinge post
leafs so that the hinge does not rub or bind against the mounting surface.
2.5 The enclosed screws are intended for securing the hinge to Delgard posts & gates.
If the hinge is mounted to a masonry column, wood, etc., ask your local building supply
dealer to recommend appropriate fasteners for your mounting application.
2.6 Add 4 drops of graphite film lubricant to the top of each hinge, taking care to remove
any excess lubricant from painted surfaces.
2.6 Test the gate for smooth free swinging operation, then proceed to install the latch
hardware as needed.
Note: See page 4 for adjustment procedure
COMMERCIAL
(HEAVY USAGE)
UP TO 4' +4' UP TO 6'
2 2
2 2
2 3
3 4
3 4
3 4
2
3
+
