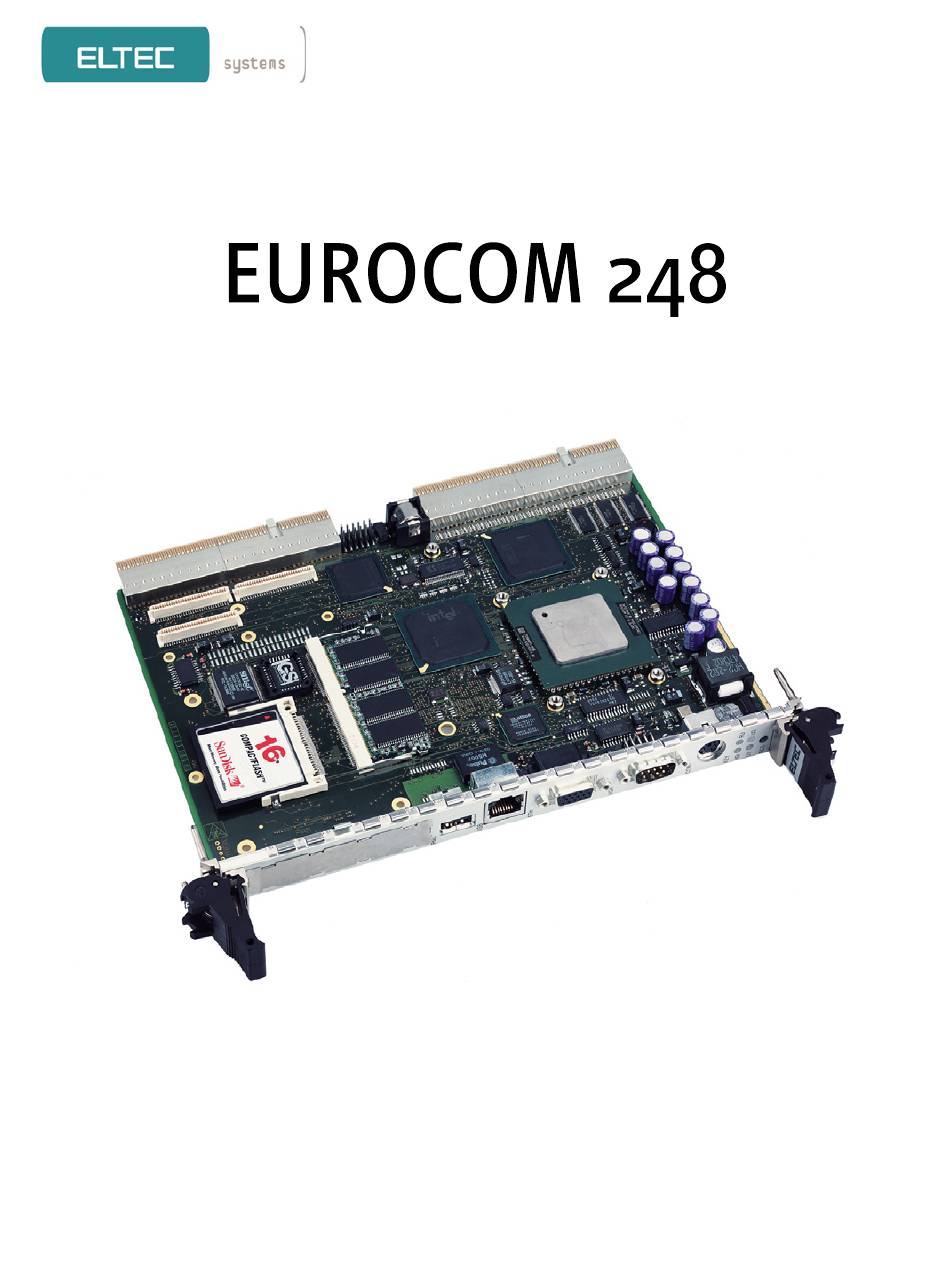

  • Page 1 Pentium III Real-Time CompactPCI CPU Board hardware documentation Revision 1B...
  • Page 2 Revision Revision Changes Date / Name First Edition 2003 ac Disclaimer new 08.11.06 hh...
  • Page 3 The complete risk inherent in the utilization of this document or in the results of its utilization shall be with the user; to this end, ELTEC Elektronik AG shall not accept any liability. Regardless of the applicability of...
  • Page 4 Þ Make sure that your power supply is set to the correct voltage in your area. If you are not sure about the voltage of the electrical outlet you are using, contact your local power company. Þ If the power supply is broken, do not try to fix it by yourself. Contact a qualified service technician or your retailer. Operation safety Þ...

  • Page 5: Table Of Contents

    Table of Contents Disclaimer / Copyright notice 1. Hardware part 1.1. Specification 1.1.1. Blockdiagram 1.1.2. Main Features 1.1.3. Overview 1.2. Installation 1.2.1. Introduction 1.2.2. SO-DIMM Installation 1.2.3. Board Installation 1.2.4. BIOS Setup 1.2.5. Cooling Requirements 1.2.6. Testing the Installation 1.3. Interface Connectors 1.3.1.
  • Page 6 1.8. Pinout Serial-Port 1.9. Location VGA-Port 1.10. Location VGA-Connector 1.11. Location Ethernet-Port 1 1.12. Location Ethernet-Port 2 1.13. Location of Connectors on Transitionboard 1.14. Miscellanous IO of the EUROCOM 248 1.15. Pinout Serial 1.16. Pinout LPT 1.17. Interrupt Routing Scheme...
  • Page 7 List of Tables 1.1. Status LED Run 1.2. Status LED HD 1.3. Speed LED 1.4. Link / Activity LED 1.5. Pinout CompactPCI-Connector P1 1.6. Pinout CompactPCI-Connector P2 1.7. Pinout CompactPCI-Connector P4 1.8. Pinout CompactPCI-Connector P5 1.9. Pinout Keyboard / Mouse Connector 1.10.

  • Page 8: Hardware Part

    Chapter 1. Hardware part 1.1. Specification 1.1.1. Blockdiagram Figure 1.1. Blockdiagram...

  • Page 9: Main Features

    1.1.3. Overview 1.1.3.1. Technical Details The EUROCOM 248 is an Intel Pentium III single-board computer with a CompactPCI interface, optimized for real-time applications, while maintaining full PC compatibility. This is the ideal platform for industrial applications with real-time operating systems, extending ELTEC’s successful BAB product line for Intel...
  • Page 10 1.1.3.1.4. Graphics Interface The graphics interface of the EUROCOM 248 is the graphics controller of the 815 chip set. It can display up to 1280 x 1024 pixels in true color (24 bpp). Since it uses an unified memory graphics frame buffer, there is a trade-off between the bandwidth used for display and for CPU access.
  • Page 11 1.1.3.1.6. Ethernet Interfaces The two network interfaces on the EUROCOM 248 use the network controller i82559ER for 10/100 Mb connectivity with the 10BaseT or 100BaseTX standards. Optionally, one or both port can be ordered with 1 Gb capability (i82540). Remote boot from LAN is supported.
  • Page 12 Operating Temperature (1266 MHz): 0 °C ... +40 °C (2 m/s forced air cooling) Operating Temperature (566 MHz): 0 °C ... +55 °C (2 m/s forced air cooling) Cooling requirements for different environments and CPU frequencies should be discussed with ELTEC. Maximum Operating Humidity: 85 % relative 1.1.3.2.2.

  • Page 13: Installation

    1.2.2. SO-DIMM Installation If the EUROCOM 248 is not shipped with DRAM SO-DIMMs, the user must insert his own SO-DIMMs on the board. The EUROCOM 248 is not able to run without DRAM. SO-DIMM installation can be done easily. The board has one SO-DIMM socket, X401. The BIOS software detects automatically if the bank is populated.

  • Page 14: Location Leds And Resetswitch

    Chapter 1. Hardware part 1.2.3.3. Mouse A standard PS/2 mouse can be connected to X802 using a splitadaptor. 1.2.3.4. Serial A serial device can be connected directly to X805. The interface supports speed up to 115200 kb/s. 1.2.3.5. Ethernet A Network can be connect using 10BaseT, 100BaseTX or 1000BaseT standard. It can be connected to X808.

  • Page 15: Bios Setup

    The EUROCOM 248 is delivered with an EMBEDDED BIOS from GENERAL SOFTWARE. The BIOS includes a setup menu to configure basic settings. ELTEC ships the EUROCOM 248 with optimized BIOS settings. If desired, most of the BIOS settings can be changed (some settings are hardwired). Also if the battery for the CMOS RAM is weak, the RAM may loose its contents making a new setting of the setup necessary.

  • Page 16: Testing The Installation

    Chapter 1. Hardware part 1.2.6. Testing the Installation After power is switched on the BIOS displays a message on the CRT screen. It takes some time before the BIOS is ready to display. After system boot from harddisk or floppy drive the keyboard should work. The driver software for the mouse should detect the mouse device.

  • Page 17: Interface Connectors

    Chapter 1. Hardware part 1.3. Interface Connectors 1.3.1. Mainboard The mainboard provides connectoren for CompactPCI, keyboard/mouse, serial, ethernet, USB, CompactFlash and OnBoard Harddisk. Figure 1.4. Location of Connectors on Mainboard...

  • Page 18: Pci

    There are two PCI connectors on the EUROCOM® 248. One is connecting the board to the CompactPCI-Rack, isolated by a PCI-to-PCI-Bridge. The other one is used to connect an PMC-Board to the EUROCOM 248. 1.3.2.1. CompactPCI Connector The CompactPCI connectors P1, P2, P4 and P5 providing the connection to the CompactPCI backplane.

  • Page 19: Pinout Compactpci-Connector P2

    Chapter 1. Hardware part Table 1.6. Pinout CompactPCI-Connector P2 Pin Row Z Row A Row B Row C Row D Row E Row F 1 GND CLK1 REQ1# GNt1# REQ2# 2 GND CLK2 CLK3 SYSEN# GNT2# REQ3# 3 GND CLK4 GNT3# REQ4# GNT4#...

  • Page 20: Pinout Compactpci-Connector P4

    Chapter 1. Hardware part Connector P4 and P5 follow the tables below. Table 1.7. Pinout CompactPCI-Connector P4 Reihe A Reihe B Reihe C Reihe D Reihe E 1 PP_/STB PP_D0 PP_D1 PP_D2 PP_D3 2 PP_D4 PP_D5 PP_D6 PP_D7 PP_/ACK 3 PP_/BUSY PP_PE PP_SLCT PP_/AFD...

  • Page 21: Pinout Compactpci-Connector P5

    Chapter 1. Hardware part Table 1.8. Pinout CompactPCI-Connector P5 Reihe A Reihe B Reihe C Reihe D Reihe E 1 reserved reserved reserved FD_DRDEN0 FD_DRDEN1 2 reserved reserved reserved /FD_INDEX /FD_MTR0 3 reserved reserved reserved /FD_DS0 /FD_DIR 4 reserved reserved reserved /FD_STEP /FD_WDATA...

  • Page 22: Keyboard / Mouse

    Chapter 1. Hardware part 1.3.3. Keyboard / Mouse Figure 1.5. Location Keyboard / Mouse-Port Table 1.9. Pinout Keyboard / Mouse Connector Signal Function 1 /KBDAT Keyboard data 2 /MSDAT PS/2 mouse data 3 GND Ground 4 5 V Supply voltage (max. 0.8 A) 5 /KBCLK Keyboard clock 6 /MSCLK...

  • Page 23: Serial

    Chapter 1. Hardware part 1.3.5. Serial Figure 1.7. Location Serial-Port Figure 1.8. Pinout Serial-Port Table 1.11. Pinout Serial-Connector Signal 1 DCD1 2 RXD1 3 TXD1 4 DTR1 5 GND 6 DSR1 7 RTS1 8 CTS1 9 RI1...

  • Page 24: Vga-Port

    Chapter 1. Hardware part 1.3.6. VGA-Port Figure 1.9. Location VGA-Port Figure 1.10. Location VGA-Connector Table 1.12. Pinout VGA-Connector Signal 1 RED 2 GREEN 3 BLUE 5 GND 6 GND 7 GND 8 GND 10 GND 11 - 12 SDA 13 HSYNC 14 VSYNC 15 SCL...

  • Page 25: Ethernet

    Chapter 1. Hardware part 1.3.7. Ethernet Figure 1.11. Location Ethernet-Port 1 Figure 1.12. Location Ethernet-Port 2 Table 1.13. Pinout Ethernet Signal 1 Pair0+ 2 Pair0- 3 Pair1+ 4 Pair2+ 5 Pair2- 6 Pair1- 7 Pair3+ 8 Pair3-...

  • Page 26: Transition Board

    1.3.8. Transition Board An IBM compatible floppy disk drive, an IDE harddisk, USB, COM2, LPT, PMC and additional inputs/outputs may be connected to EUROCOM 248 via a small transitionboard. This board has to be connected the CompactPCI backplane. Figure 1.13. Location of Connectors on Transitionboard...

  • Page 27: Pinout Misc Connector

    Chapter 1. Hardware part 1.3.8.1. MISC This connector can be used to connect additional Inputs and Outputs. Figure 1.14. Miscellanous IO of the EUROCOM 248 Table 1.14. Pinout Misc Connector Name Function Function Name Power Data from/to Keyboard /KBDAT /MSDAT...

  • Page 28: Pinout Floppy Connector

    Chapter 1. Hardware part 1.3.8.1.1. Keyboard / Mouse The pins for the Keyboard / Mouse-Interface provide PS/2 compatible signals to connect standard PC-Hardware. 1.3.8.1.2. Loudspeaker These pins can be used to connect a loudspeaker. 1.3.8.2. Floppy The floppy cable is connected between floppy drive and the adapter connector. The power supply cable for the floppy drive must be connected directly to the power supply.

  • Page 29: Pinout Ide Connector

    Chapter 1. Hardware part 1.3.8.3. IDE Like the floppy disk drive an EIDE drive is connected with its flat cable to the adapter. The power supply cable of the EIDE device must be directly connected to the power supply. Up to two EIDE drives (harddisk, CD-ROM) can be connected.

  • Page 30: Pinout Serial

    DTR2 DSR2 RTS2 CTS2 1.3.8.5. USB The EUROCOM 248 supports two USB ports. USB1 can be located at the front panel, if there is no second network. USB2 is routed via the transition board. Table 1.18. Pinout USB Signal USB_P2-...
  • Page 31 Chapter 1. Hardware part 1.3.8.6. LPT The EUROCOM 248 supports one Parallelport which is routed to the transisionboard. Figure 1.16. Pinout LPT Table 1.19. Pinout LPT Signal Direction Function /STROBE in/out Strobe in/out Data bit 0 in/out Data bit 1...

  • Page 32: Board Parameters

    Chapter 1. Hardware part 1.4. Board Parameters 1.4.1. Host Bus • 133/100 MHz (With Pentium III) • 100/66 MHz (with Celeron) 1.4.2. CompactPCI • CompactPCI interface according to specification PICMG 2.0 (Rev. 3.0) from October 1, 1999. • 64 bit Intel 21154 Bridge •...

  • Page 33: Serial

    Chapter 1. Hardware part 1.4.5. Serial • 2 Channels • Full duplex, asynchronous • 50 b/s - 115,2 KB/s • RS232 level 1.4.6. USB • 1 or 2 ports • 1.5 / 12 Mb/s • Supply current for external devices: 500 mA. 1.4.7.

  • Page 34: Mtbf Values

    Chapter 1. Hardware part Table 1.20. Resolution Table Resolution [pixel x Colordepth [bit / Refresh [Hz] pixel] pixel] 1600 x 1200 1280 x 1024 1280 x 1024 1280 x 1024 1024 x 768 1024 x 768 1024 x 768 800 x 600 800 x 600 800 x 600 640 x 480...

  • Page 35: Environmental Conditions

    0 - 55 Pentium III 1266 29,5 0 - 40 Cooling requirements for different environments and CPU frequencies should be discussed with ELTEC. • Storage Temperature: -25 °C ... +60 °C (Humidity 10% ... 95%) • Maximum Operating Humidity: 85% relative (higher value on request) 1.4.13.

  • Page 36: Programmers Reference

    Chapter 1. Hardware part 1.5. Programmers Reference 1.5.1. Special Registers The EUROCOM 248 includes the following Special Registers 1.5.1.1. Watchdog The watchdog circuitry is disabled after system reset/power-up. The first write cycle to the watchdog trigger register enables the watchdog. If no further write cycle to this register takes place, the watchdog performs a reset and a new system boot takes place.

  • Page 37: Irq-Mapping Register 0X04C1

    Chapter 1. Hardware part 1.5.1.3. IRQ-Mapping This register is used to configure the interruptrouting for the timers and the cPCI-Status-Register. Name IRQMAP Address 0x04C1 Table 1.24. IRQ-Mapping Register 0x04C1 res. STEN ST(1) ST[0] T2[1] T2[0] T1[1] T1[0] T1[1..0]: IRQ for timer1 (00: PIRQ_A … 11:PIRQ_D ). T2[1..0]: IRQ for timer2 (00: PIRQ_A …...

  • Page 38: Userled 2 Register Superio + Offset 0X5E

    Chapter 1. Hardware part 1.5.1.4.2. UserLED 2 Name UserLED 2 Address SuperIO + Offset 0x5E Table 1.26. UserLED 2 Register SuperIO + Offset 0x5E res. res. res. res. res. res. D[1..0]: UserLED2 off. UserLED2 blinks with 1 Hz, 50% dutycycle. UserLED2 blinks with 0.5 Hz, 25% dutycycle.
  • Page 39 Chapter 1. Hardware part 1.5.1.5. Example Configuring the UserLEDs /* UserLEDs */ #define RREG_IO_ADR (0xf00) #define GP60_IO_ADR (RREG_IO_ADR + 0x47) #define LED1_IO_ADR (RREG_IO_ADR + 0x5d) #define LED_INIT #define LED_INIT_INV #define LED_OFF #define BLINK_FAST #define BLINK_SLOW #define LED_ON /******************************************************************************* * sysLedSet * This function sets the UserLEDs num: 1 or 2...

  • Page 40: Timer

    Chapter 1. Hardware part 1.5.2. Timer These register are used to setup the timers. The frequency is 2.083 MHz which give us a resolution of 0.48 µs and a maximal periode of 31456.8 µs. The timers are designed as periodic reverse counter. The are starting after programming the loadregister and setting the registerbit EN to 1.

  • Page 41: Timer 1 Controlregister Without Clear 0X04Ca

    Chapter 1. Hardware part Name Timer 1 IRQ Address 0x04CA Table 1.29. Timer 1 controlregister without clear 0x04CA IntPe res. res. res. res. res. res. IntPe: Interrupt pending. Timer enable. Name Timer 1 IRQ with Clear Address 0x04CB Table 1.30. Timer 1 controlregister with clear 0x04CB IntPe res.

  • Page 42: Timer 2 Loadregister Lsb 0X04Cc

    Chapter 1. Hardware part 1.5.2.2. Timer 2 Name Timer 2 loadregister LSB Address 0x04CC Table 1.31. Timer 2 loadregister LSB 0x04CC Name Timer 2 loadregister MSB Address 0x04CD Table 1.32. Timer 2 loadregister MSB 0x04CD D[15..0]: loadvalue for counter Name Timer 2 IRQ Address 0x04CE...

  • Page 43: Timer 2 Controlregister With Clear 0X04Cf

    Chapter 1. Hardware part Name Timer 2 IRQ with clear Address 0x04CF Table 1.34. Timer 2 controlregister with clear 0x04CF IntPe res. res. res. res. res. res. IntPe: Interrupt pending. Timer enable.

  • Page 44: Nvram

    The NVRAM (Non Volatile RAM) has a size of 2kB and starts at 0x2000 in the IO-Area. 1.5.4. Interrupts The EUROCOM 248 uses the PC interrupts for different purposes. First there are the PC compatible interrupt sources like serial, parallel I/O, timer, keyboard, floppy disk, EIDE, real-time clock, PS/2 mouse and coprocessor.
  • Page 45 Chapter 1. Hardware part...
