C

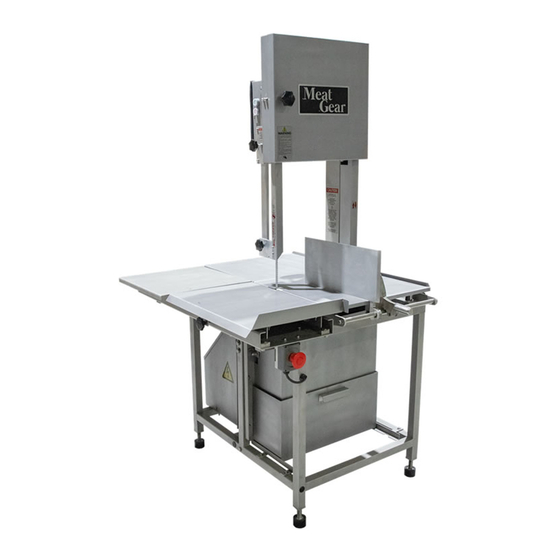

UTTING BAND SAW MACHINE
C
: SIE360AIHER3HP1P
ODE
SIE360AIHER3HP3P
SIE360AIHER5HP3P
B
: MEAT GEAR
RAND
Instructions for operation, service and
maintenance
You have just acquired a high quality Meat Gear Machine
Before operating the equipment, read and familiarize yourself
with the following operating and safety instructions.
SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCE.
Use this packaging to ship the equipment if repairs are needed.
Congratulations on your purchase!
Save the original box and packaging.
Advertisement
Table of Contents
Related Manuals for MEAT GEAR SIE360AIHER3HP1P
Summary of Contents for MEAT GEAR SIE360AIHER3HP1P
- Page 1 Instructions for operation, service and maintenance Congratulations on your purchase! You have just acquired a high quality Meat Gear Machine Before operating the equipment, read and familiarize yourself with the following operating and safety instructions. SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCE.
-
Page 2: Table Of Contents
T IS IMPORTANT THAT YOU AND THE PERSON OPERATING THE MACHINE READS CAREFULLY THIS OPERATION MANUAL ONTENT ONTENT AND SAW BLADE ALIGNMENT ARTS ARRIAGE ENERAL UIDES NSTALLATION LEANERS AND WASTE PAN ULLEYS LECTRIC DIAGRAM AND SAW BLADE TENSION (10) IMITED WARRANTY (11) OW TO OBTAIN WARRANTY ARTS... -
Page 3: General
T IS IMPORTANT THAT YOU AND THE PERSON OPERATING THE MACHINE READS CAREFULLY THIS OPERATION MANUAL ENERAL The cutting band saw machine 142” is constructed in stainless steel. This model is ideal for a high demand market, you will find it at supermarkets, meat industry markets, among other examples. Easy disassemble cleaning... -
Page 4: Nstallation
T IS IMPORTANT THAT YOU AND THE PERSON OPERATING THE MACHINE READS CAREFULLY THIS OPERATION MANUAL Characteristics Value Unit Voltage supply 220(3) Volts (phases) Frequency Current Amps. Engine power Machine Weight Kgs. Saw velocity Mt/seg. Lenght of saw blade 142/361 Inch/cm NSTALLATION To insure optimal performance in your new 142”... -
Page 5: Pulleys
ULLEYS The pulleys should be placed above the arrow, make sure the inner part of the gap is placed in the cap screw between the gap. Lubricate the arrow with the food grade grease included in your machine. Arrow´s cap screw Pulley´s gap Both parts joined To avoid pulleys from coming off from the arrow while functioning, lock it as shown in the... -
Page 6: And Saw Blade Alignment
Right tension Needs more Untighten tension AND SAW BLADE ALIGNMENT Upper pulley.- To obtain the correct alignment, the band saw blade, should be in a 1/32” (1mm) away from the pulley´s edge. The next diagram shows how the leveling screw should be adjust- ed until the separation between the band saw blade and the edge is just right. -
Page 7: Arriage
ARRIAGE The carriage can slide back and forward easily, set the carriage lock as shown in the figure to avoid the carriage coming off the track. The band saw blades security guard can be adjusted upwards and downwards exposing only the part needed to make the cuts. Although the guard can be adjusted while the machine is ON, it is recomended to do it while it´s OFF for a safetier operation. -
Page 8: Leaners And Waste Pan
Functioning Worn out guide guide The tugsten guides allow the machine to control the movements the band saw blade has while operating, the guides have normal wear. The following figures shows when the guides has worn and should be replaced. Functioning Worn out guide... -
Page 9: Electric Diagram
The waste pan is placed in the lower part of the cutting band saw machine, to remove the waste just pull waste lift LECTRIC DIAGRAM GROUND 220 VOLTS Fuse WHITE WHITE WHITE WHITE ORANGE Transformer BLACK BLACK 220 vca : 24 vca YELLOW Fuse 5L3 13NO... -
Page 10: Limited Warranty
Should any manufacturing defect be discovered within one year from date of purchase, you must deliver the entire product to the MEAT GEAR dealer that sold it or to a MEAT GEAR service center in its original packaging or in packaging affording an equal degree of protection, along with proof of purchase. - Page 11 30 days afer you find a defective product or part for tech assistance. 3.- If you have to ship a MEAT GEAR service center be sure to obtain a Service order number from the MEAT GEAR service center at +1 (800) 824-1644 / (832) 675-9699 4.- Arrange for the delivery of the product to the authorized MEAT GEAR service center.
- Page 12 IND MORE TECHNICAL INFORMATION AT MEATGEAR...
