Summary of Contents for REXON PJ2+

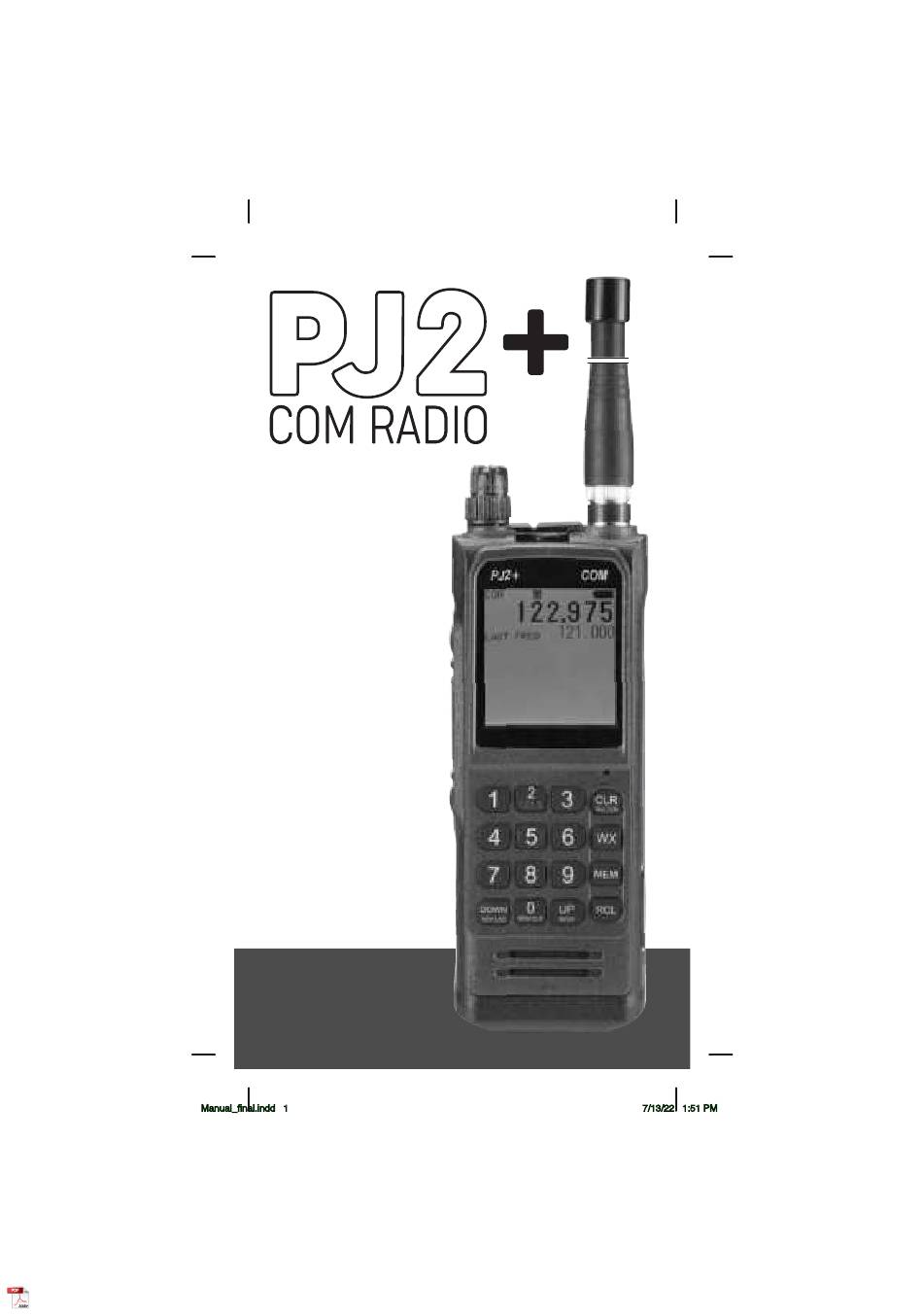

  • Page 1 Operator’s Manual 71322PS Manual_final.indd 1 7/13/22 1:51 PM...
  • Page 2 Important Notice FCC RF Exposure Compliance Requirements for Occupational Use Only This radio has been tested and complies with the Federal Communications Commission (FCC) RF exposure limits for Occupational Use/Controlled Exposure Environment. In addition, it complies with the following Standards and Guidelines: •...
  • Page 3 Simplified Directions 1. Install the batteries. 2. Turn the unit on (rotate volume knob clockwise). 3. Enter the desired frequency (1 2 2 9 7 5 for 122.975 MHz). Note: Six digits may be required to select certain frequencies. 4. Listen and transmit. Manual_final.indd 3 7/13/22 1:51 PM...
  • Page 4: Table Of Contents

    Table of Contents General Information Introduction Features Warranty Antenna Requirements Batteries External Power Precautions Controls Top View Left Side View Right Side View Front View Back View Operating Instructions Manual Frequency Selection Frequency Search Frequency Memory Memory Recall Memory Scan Memory Clear Transmitting Using a Headset...
  • Page 5: General Information

    PJ2+ COM radio. This manual is not intended as a service or maintenance manual and does not contain any theory or schematic diagrams. Features Rexon PJ2+ COM is a hand-held, aircraft communication transceiver with the following features: • Standard twin plug aviation headset jacks •...
  • Page 6: Warranty

    Warranty If, during the first year, your PJ2+ COM transceiver fails due to defective workmanship or parts under normal use, we will replace it or repair it at our option. The warranty does not apply to units subject to misuse, battery leakage, neglect or accidents.
  • Page 7: Batteries

    Batteries An Alkaline Battery Pack is standard equipment with the PJ2+ COM. Alkaline batteries are a good power source for a backup radio because they have excellent storage life and no maintenance is required. The Alkaline Battery Pack is NOT rechargeable. The batteries must be replaced.
  • Page 8: External Power

    External Power The PJ2+ COM includes a wall adapter and USB-A to USB-C power cable. The wall adapter can be used in 100-240 volt applications. The USB-A port on the wall adapter provides the needed 2.4 amps to properly power the PJ2+ COM.
  • Page 9: Precautions

    Precautions: • Changes or modifications not expressly approved by the manufacturer for compliance could void the user’s authority to operate the equipment. • Never attempt to service this unit yourself. It should be referred to qualified service personnel. Please read the Warranty section in this manual.
  • Page 10: Controls

    Controls This section serves only to identify and briefly describe the PJ2+ COM’s external features. Please see the Operating Instructions section for detailed instructions on the use of the PJ2+ COM. Top View (A) Antenna Connector The flexible rubber antenna or an external antenna may be attached to this BNC connector.
  • Page 11 Left Right Manual_final.indd 11 7/13/22 1:51 PM...
  • Page 12: Front View

    Front View (L) Screen This LCD displays the current frequency, last frequency, and other information to the operator. (M) Numeric Keypad These keys are used whenever the PJ2+ COM requires a numeric input such as setting the frequency. (N) 2 Key 121.5 Emergency This key is used to select 121.5 emergency frequency.
  • Page 13: Back View

    This is accessed by holding the Clear key and pressing the 9 key. (AA) Recall Key This key is used to recall stored frequencies from the 20 memory channels. (AB) Up Key/BEEP This key is used to select the next higher frequency, or to initiate search and scan functions.
  • Page 14: Operating Instructions

    Operating Instructions To perform the following functions you must be in the basic operating mode of the PJ2+ COM. To ensure that you are in the basic operating mode, press the Clear key until the last frequency that was entered manually is displayed.
  • Page 15: Frequency Search

    Frequency Search To manually search through the frequency range, the Up key or Down key may be pressed at any time to select the next higher or lower frequency. The Up and Down keys may be pressed repeatedly to continue changing the selected frequency.
