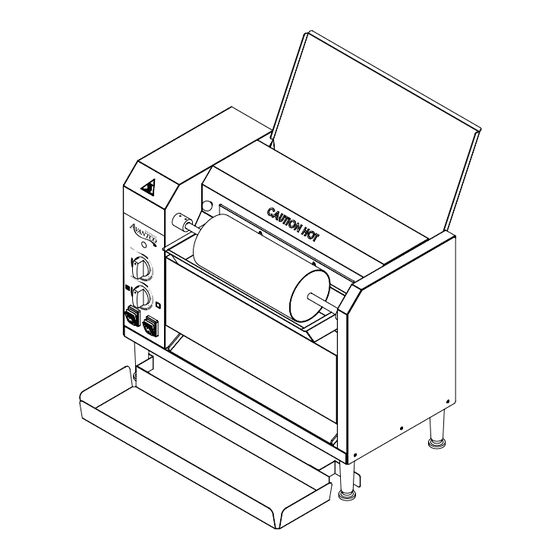

- Page 1 User Manual Vertical Contact 5009704 Bun Toaster 5009704 CONFORMS TO UL STD. 197 CONFORMS TO NSF/ANSI STD. 4 Model: 184BT18A, 184BT18AXL, 184BT18H, 184BT18HXL 10/2022 Please read and keep these instructions. Indoor use only. www.AvantcoEquipment.com...
-
Page 2: Table Of Contents
User Manual Table of Contents Safety ....................3 Installation ..................4 Operating Instructions ................. 6 Conveyor Adjustment ................7 Cleaning and Maintenance ..............7 Dimensions ..................8 Troubleshooting .................. 9 2 www.AvantcoEquipment.com... -
Page 3: Safety
User Manual Safety When using electrical appliances, basic safety precautions should always be followed, including the following: Read all instructions carefully and completely. For commercial use only. DO NOT touch hot surfaces. Protect against electrical shock by keeping all cords, plugs, and other electrical components away from water or other liquids. -
Page 4: Installation
User Manual Examine carton for damage. The freight carrier has assumed responsibility for its safe transit and delivery. If equipment is received damaged, either apparent or concealed, a claim must be made with delivering carrier. A. Apparent damage or loss must be noted on the freight bill at the time of delivery. The carrier representative (Driver) must sign the freight bill. - Page 5 User Manual 7. Replace the bottom panel (4a), the top panel (1a), the butter pan (3a) and the butter roller (2a) in that order. 8. Install the bun feeder chute by feeding the slots on each side onto the back panel studs. drive gear cassette gear Installation of Non-stick Sheet...
-
Page 6: Operating Instructions
User Manual Operating Instructions 1. Thoroughly clean the unit as described in the cleaning section of this manual. 2. Turn on the main switch. The conveyor will now run. 3. Set the temperature to approx. 400˚F, which is between 6 and 7 on the scale. -
Page 7: Conveyor Adjustment
User Manual Conveyor Adjustment If optimal bun grilling is not achieved using the speed and temperature settings, it is possible to adjust the position of the conveyor system relative to the grill plate. Moving the conveyor closer to the grill plate will apply more pressure to the bun and result in more effective toasting. 1. -
Page 8: Dimensions
User Manual Dimensions (492) 19.3” (492) 19.3” MODEL: 184BT18A - 120V 1600W 184BT18H - 208/240V 2400/3200W MODEL: (635) 25” 184BT18A - 120V 1600W 184BT18H - 208/240V 2400/3200W Dimensions with Extended Feeder Tray (635) 25” (573) 22.5” (573) 22.5” MODEL: 184BT18AXL - 120V 1600W... -
Page 9: Troubleshooting
User Manual Troubleshooting Problem Possible Cause Potential Solution 1. No power at wall receptable 1. Check supply circuit breaker 2. Plug disconnected 2. Check plug UNIT DEAD NO POWER 3. Main switch 3. Check switch is on 4. Supply circuit breaker 4.
