7 DEALER MANUAL FOR DP E162.CAN/ DP E163.CAN CONTENT 7.1 Important Notice 7.6 Key Definition 7.2 Introduction of Display 7.7 Normal Operation 7.3 Product Description 7.7.1 Power On/Off 7.3.1 Specifications 7.7.2 Support Level Selection 7.3.2 Functional Overview 7.7.3 Headlight/ Backlight 7.4 Display Installation... -
Page 2: Important Notice
7.1 IMPORTANT NOTICE • If the error information from the display • Please use this product with care. cannot be corrected according to the inst- • Do not use thinners or other solvents to ructions, please contact your retailer. clean the display. Such substances can •... -
Page 3: Product Description

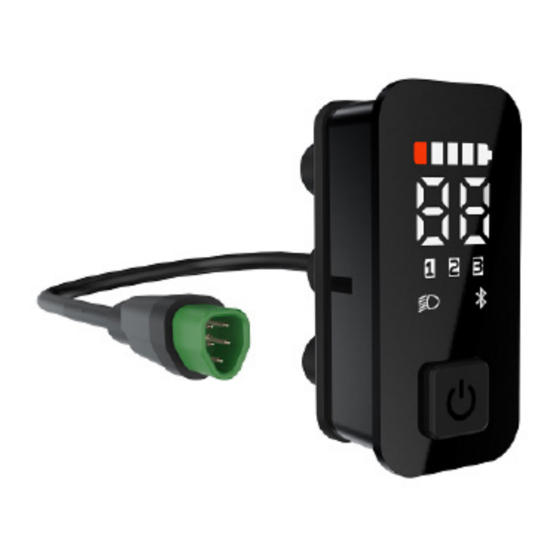

7.3 PRODUCT DESCRIPTION 7.3.2 Functional Overview 7.3.1 Specifications • Battery capacity indication • Operating temperature: -20℃~45℃ • Support level indication • Storage temperature: -20℃~60℃ • Real-time speed indication • Waterproof: IP65 • Headlight control and indication • Storage room Humidity: 30%-70% RH •... -
Page 4: Display
7.5 DISPLAY Battery capacity indicator Speed indicator Support level indicator Headlight indicator Bluetooth indicator 7.6 KEY DEFINITION Power On/Off BF-DM-C-DP E162&E163-EN November 2022... -
Page 5: Normal Operation
7.7 NORMAL OPERATION 7.7.1 Power On/ Off Press and hold (>2.5S) on the display to turn on the system. Press and hold (>2.5S) again to turn off the system. 7.7.2 Support Level Selection When the display is turned on, press the (<0.5S) button to switch to the support level, the lowest level is 1, the highest level is 3. -
Page 6: Battery Capacity Indication
This display is equipped with OTA function, which can update firmware through the bluetooth. This display can be connected to the Bafang Go APP through Bluetooth. The customer also can develop their own app based on the SDK provided by BAFANG. -
Page 7: Error Code Definition
HMI. Please contact Bafang after-sale service personnel <service@bafang-e.com> if the above troubleshooting fails to solve the problem or the error code is not in the above list. - Page 8 Troubleshooting Code Cause Hub Motor System Mid Motor System 1. Check whether the motor cable is connected correctly or the cable (from motor to controller) is damaged. Phase wire in motor abnormal Replace the drive unit 2. Troubleshoot the faulty part: 1) Replace the motor 2) Replace the controller 1.
- Page 9 Troubleshooting Code Cause Hub Motor System Mid Motor System 1. Check whether the motor cable is 1. Check whether the spoke magnet connected correctly or the cable (from has fallen off or the clearance motor to controller) is damaged. between the spoke magnet and the speed sensor is within the normal 2.
- Page 10 2. Replace the battery Voltage difference between Replace the battery single cell The battery error codes of 42, 49, 4C only occur when the drive system is equipped with the smart BMS and Bafang CAN communication protocol. BF-DM-C-DP E162&E163-EN November 2022...
