7 DEALER MANUAL FOR DP E180.CAN/ DP E181.CAN CONTENT 7.1 Important Notice 7.7 Normal Operation 7.2 Introduction of Display 7.7.1 Power On/Off 7.3 Product Description 7.7.2 Switch Power Assisted Level 7.3.1 Overall Dimension 7.7.3 Switch the Headlight 7.3.2 Specifications 7.7.4 Walk Assistance 7.3.3 Function Overview... -
Page 2: Important Notice

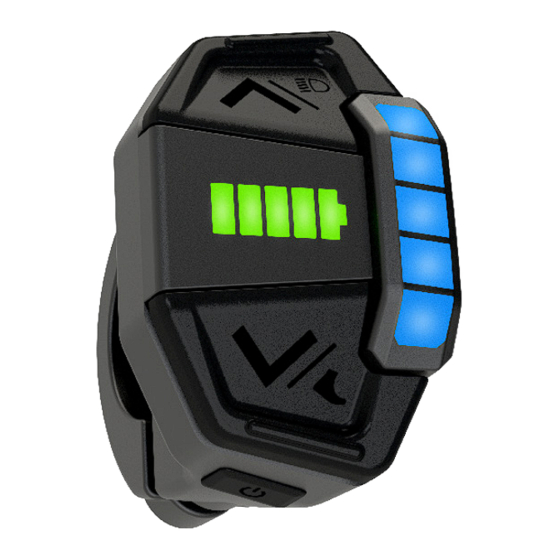

• Do not clean the display with a steam jet, high-pressure cleaner or water hose. 7.2 INTRODUCTION OF DISPLAY • Model: DP E180.CAN • Identification: DP E181.CAN • Appearance: Note: Please keep the QR code label attached to the display cable. -
Page 3: Product Description
7.3 PRODUCT DESCRIPTION 7.3.1 Overall Dimension 7.3.2 Specifications • Operating temperature: -20℃~45℃ • Storage temperature: -20℃~60℃ • Waterproof: IPX5 • Bearing humidity: 30%-70% RH 7.3.3 Function Overview • Battery capacity indication • Power on and off • Control and indication of power assistance •... -
Page 4: Display Installation
7.4 DISPLAY INSTALLATION Open the clamp of display and place the Dock the DP’s male connector “h” with EB- display cable into the groove. BUS’s female connector “H” as indicated. Put the clamp onto the handlebar, fix it with a M3*8 hex screw at tightening torque of 1 N.m. -
Page 5: Key Definition
7.6 KEY DEFINITION Up/ Headlight Power on/off Down/ Walk assistance 7.7 NORMAL OPERATION 7.7.1 Power On/Off 7.7.2 Switch Power Assisted Level Press and hold (>2S) on the display to When the display is turned on, press power on the system. (<0.5S) to switch to the power assisted level Press and hold (>2S) again to power off... -
Page 6: Switch The Headlight
0. The default name of Bluetooth is DP E181. CAN. After connecting, the Bluetooth indica- tion on the display will be on. (Bafang Go for Android and iOS BF-DM-C-DP E180-EN September 2022... -
Page 7: Error Code Definition
7.8 ERROR CODE DEFINITION The display can show the errors of a pedelec. When the fault is detected, the LED lights will flash at a frequency of 1Hz. The LED light of level 1 indicates the tens digit of the error code, while the LED light of level 2 indicates the unit digit. - Page 8 Error Declaration Troubleshooting 1. Check all connectors from the battery are correctly connected to the motor. Error with the temperature sensor inside of the battery 2. If the problem still occurs, please change the Battery. 1. Allow the pedelec to cool down and restart the The protection temperature system.
- Page 9 Error Declaration Troubleshooting 1. Check that all connections are connected correctly. 2. Please connect the pedelec to the BESST system to see if speed signal can be read by the BESST tool. Speed signal of the torque 3. Change the Display to see if the problem is solved. sensor has an error 4.
- Page 10 Error Declaration Troubleshooting Using the BESST tool update the controller to see if Controller WDT circuit is faulty this resolves the problem. If not, please change the controller or contact your supplier. Using the BESST tool update the sensor to see if Sensor WDT circuit is faulty this resolves the problem.
