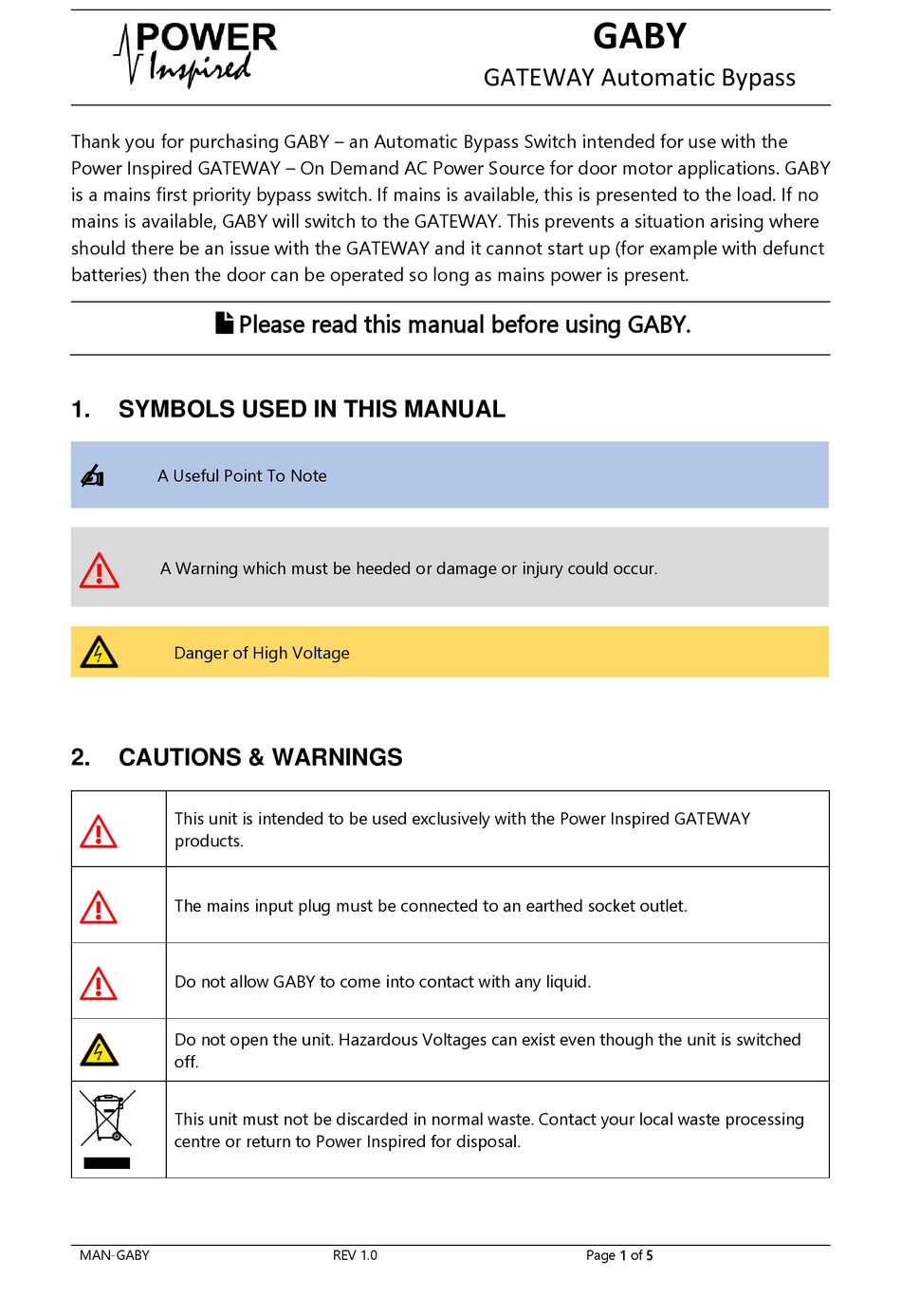

Thank you for purchasing GABY – an Automatic Bypass Switch intended for use with the
Power Inspired GATEWAY – On Demand AC Power Source for door motor applications. GABY
is a mains first priority bypass switch. If mains is available, this is presented to the load. If no
mains is available, GABY will switch to the GATEWAY. This prevents a situation arising where
should there be an issue with the GATEWAY and it cannot start up (for example with defunct
batteries) then the door can be operated so long as mains power is present.
Please read this manual before using GABY.
1.
SYMBOLS USED IN THIS MANUAL
✍
A Useful Point To Note
⚠
A Warning which must be heeded or damage or injury could occur.
Danger of High Voltage
2.
CAUTIONS & WARNINGS
⚠
This unit is intended to be used exclusively with the Power Inspired GATEWAY
products.
⚠
The mains input plug must be connected to an earthed socket outlet.
⚠
Do not allow GABY to come into contact with any liquid.
Do not open the unit. Hazardous Voltages can exist even though the unit is switched
off.
This unit must not be discarded in normal waste. Contact your local waste processing
centre or return to Power Inspired for disposal.
MAN-GABY
GATEWAY Automatic Bypass
REV 1.0
GABY
Page 1 of 5
Advertisement
Table of Contents
Related Manuals for Power Inspired GABY
Summary of Contents for Power Inspired GABY
- Page 1 GABY GATEWAY Automatic Bypass Thank you for purchasing GABY – an Automatic Bypass Switch intended for use with the Power Inspired GATEWAY – On Demand AC Power Source for door motor applications. GABY is a mains first priority bypass switch. If mains is available, this is presented to the load. If no mains is available, GABY will switch to the GATEWAY.
- Page 2 GATEWAY Automatic Bypass Installation ⚠ must The GATEWAY be powered from GABY and not an alternate source. Installation with a GATEWAY: Connect the mains input lead supplied with the GATEWAY into the MAINS input with ▪ the RED gland on GABY.
- Page 3 GABY can be connected to other Uninterruptible Power Systems (UPS) in the same manner as the GATEWAY connections described here. The UPS must be powered from ✍ GABY and not an alternate source. The UPS must be rated less than the maximum switching rating of GABY (See Specifications). ⚠...
- Page 4 The warranty period is 2 years from date of despatch. ▪ If you suspect your GABY has a problem that is covered under warranty then you must first contact us to obtain an RMA number. Once issued you must securely package the unit and return it to us at the address given under “Contact Information”.
- Page 5 Operating Temperature -20~40°C Operating Humidity 0~90% Rel Humidity Non condensing Altitude <2000m Standards BS EN62368 / RoHS CONTACT INFORMATION �� POWER INSPIRED LTD +44 (0) 1869 814055 Unit 122 info@powerinspired.com Churchill Road Bicester www.powerinspired.com Oxfordshire OX26 4XD United Kingdom MAN-GABY REV 1.0...
