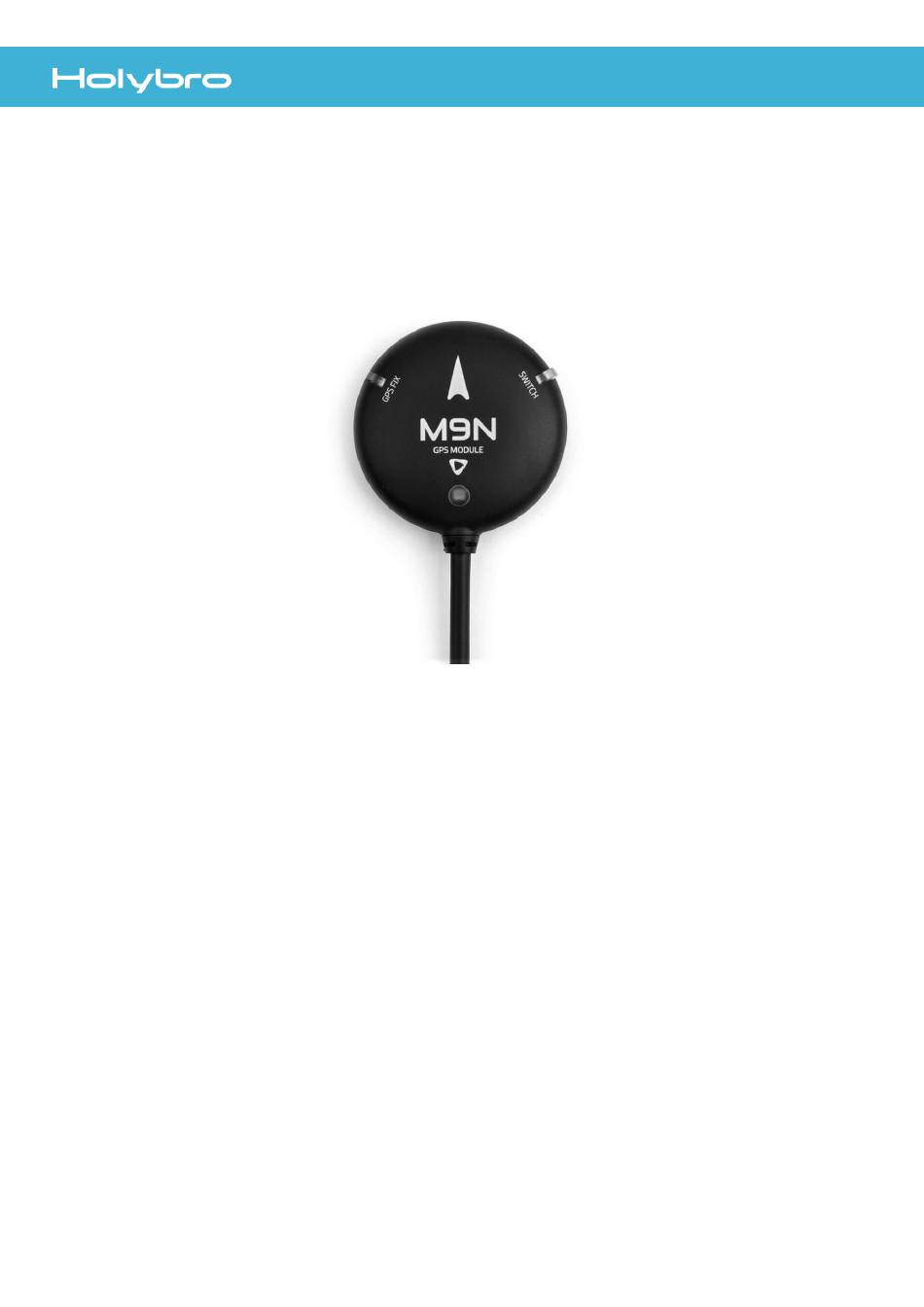

#12027 #12028 #12029

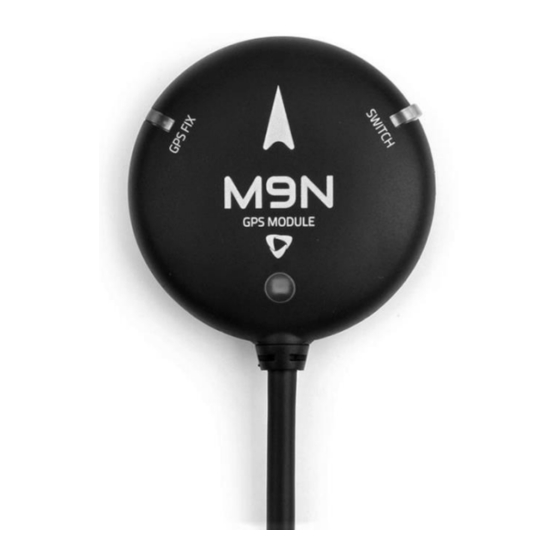

M9N GPS
Descriptions：
The M9N GPS has an UBLOX M9N module, IST8310 compass, tri-colored LED indicator, and a safety
switch. There are 3 different connectors options for different purposes.
This module ships with a baud rate of 115200 5Hz
Features and Specifications:
- Ublox Neo-M9N module
- Industry leading –167 dBm navigation sensitivity
- Cold starts: 26s
- LNA MAX2659ELT+
- 25 x 25 x 4 mm ceramic patch antenna
- Rechargeable Farah capacitance
- Low noise 3.3V regulator
- Current consumption: less than 150mA @ 5V
- Fix indicator LEDs
- Protective case
- 26cm cable included
- Diameter 50mm total size, 32 grams with case.
Advertisement
Table of Contents
Related Manuals for Holybro M9N
Summary of Contents for Holybro M9N
- Page 1 #12027 #12028 #12029 M9N GPS Descriptions： The M9N GPS has an UBLOX M9N module, IST8310 compass, tri-colored LED indicator, and a safety switch. There are 3 different connectors options for different purposes. This module ships with a baud rate of 115200 5Hz...
- Page 2 Pin Map SKU12027 Holybro M9N GPS (JST GHR1.25mm 10 pin cable): This JST GH 10Pin connector can be use d on Pixhawk Series 10pin“GPS Module” or "GPS1" input port. SKU12028 Holybro M9N GPS for Pix32 (Molex1.25mm 6pin & 4pin &3pin cable): These Molex1.25mm 6pin &...
- Page 3 M9N GPS Module *1 ‘X’ type folding pedestal mount *1 Carbon rod 70mm & 140mm *1 Holybro is a registered trademark of Holybro, registered in the U.S. and other countries. © Copyright 2018 Holybro. All Rights Reserved. P a g e...
