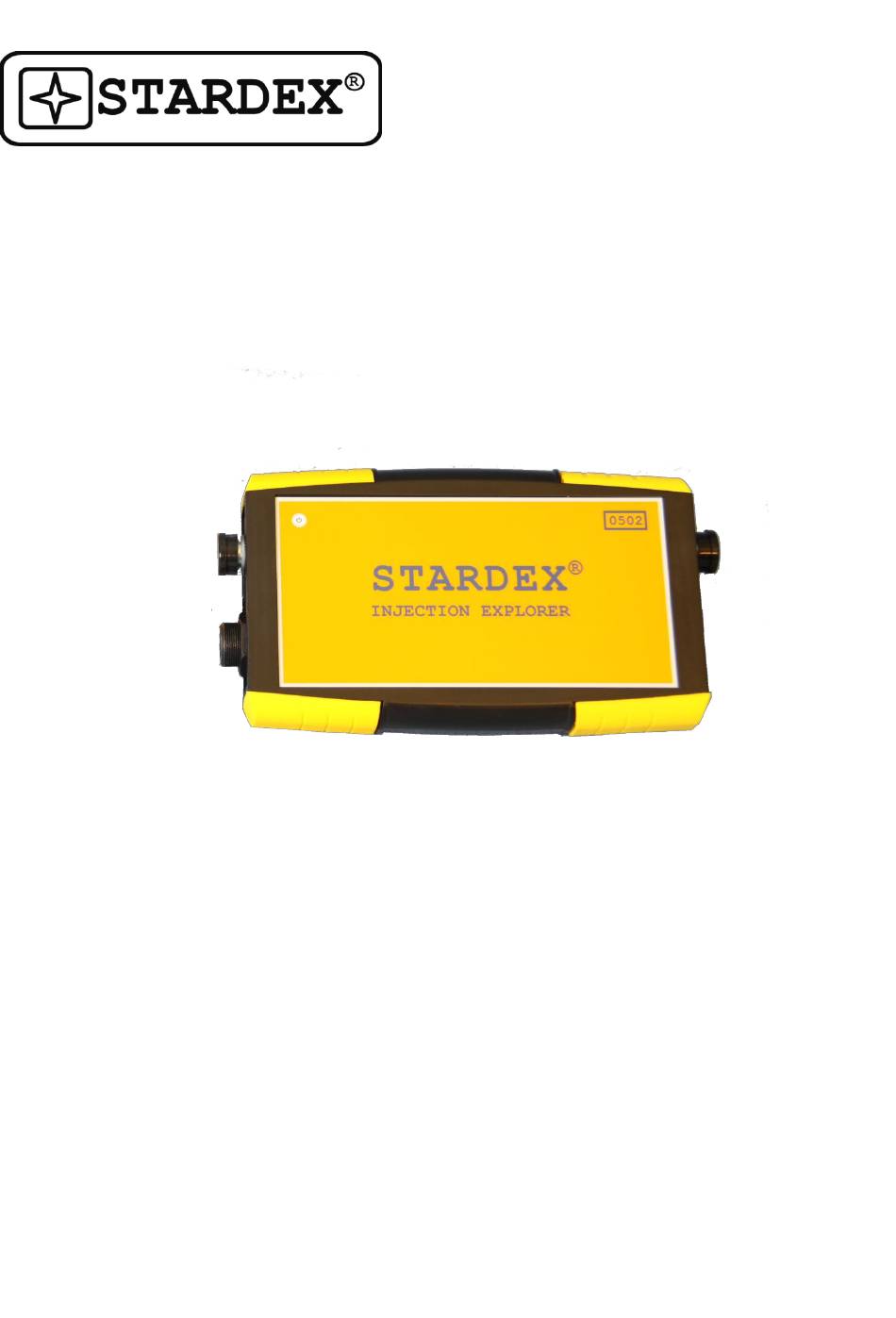

- Page 1 INJECTION EXPLORER STARDEX® 0502...
- Page 2 1. Security information Read the instructions carefully before using STARDEX 0502 (the device). The device must be connected only to AC 220V with cable from the delivery kit. Getting the electrical charges on device body is strongly prohibited! Ingress of moisture inside the device is strictly unacceptable! Device body is constructed to protect its components from mechanical impact, while operating.
- Page 3 3. General description STARDEX 0502 - an additional device for the investigation of the injection delay, while testing Common Rail injectors on the bench with the help of STARDEX 030x simulators. The device allows you to accurately measure and record the delay time of injection (the...
- Page 4 1) Connect STARDEX 030x and STARDEX 0502, using the USB cable supplied. 2) Install the signal cable, that comes with STARDEX 0502, instead of the regular injector’s cable at STARDEX 030x. 3) Connect the signal cable to the appropriate STARDEX 0502 connector.
- Page 5 5. Interface description and control buttons Injector select buttons Injection delay window Minimum delay Average delay Maximum delay value time time Exit Clear report Print Reset...
- Page 6 6. Installation on the test bench and the beginning of work. Prepare STARDEX 0502 to work, as described in Chapter 4. In STARDEX 030x, go into the injectors test. Select the test mode (usually Full load). Activate the injector number 1 and make it work.
- Page 7 Quick connector 7 mm 1 pc. Quick connector 9 mm 1 pc. USB cable 1 pc. Technical description 1 pc. *Attention! Signal cables vary, depending on with which STARDEX device (0305 or 0304) will be used. When ordering, please specify!
- Page 8 The product is packed into bubble wrap and carton box. Weight - 2 kg. Length - 250 mm. Width - 150 mm. Height - 200mm. MANUFACTURED BY: OY STARDEX LTD PULTTITIE 2 00880, HELSINKI FINLAND +358 (0)44 5523130 +358 (0)40 6582260...
