Summary of Contents for Stardex 0803

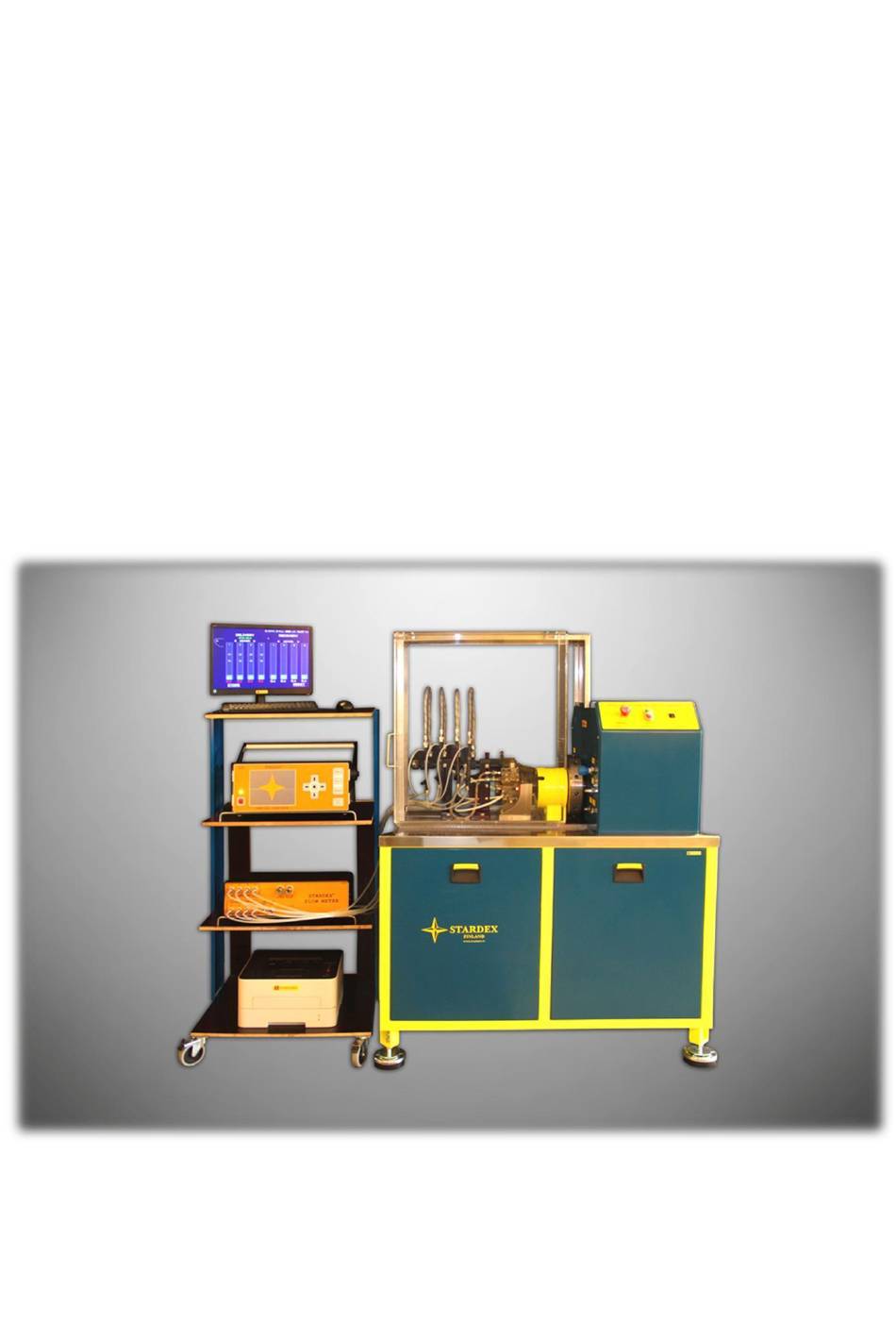

- Page 1 Test Bench STARDEX® 0803/ STARDEX® 0803M "Compact"...
- Page 2 Safety rules for working with STARDEX 0803/ STARDEX 0803M. Before using the device STARDEX 0803/ STARDEX 0803M (further “the test bench”), read this manual carefully. The test bench should be plugged only in a three-phase circuit of alternative current 380 -...
- Page 3 - to test Common Rail system (pumps, injectors, high pressure rails, regulators and pressure sensors). - to test Unit Injector and Unit Pump systems. The complex to test Common Rail system consists of STARDEX 0803, pulse simulator STARDEX 0304 and measuring unit STARDEX 0104....
-
Page 4: Installing And Connecting
The complex to test Unit Injector and Pump Unit systems consists of STARDEX 0803, STARDEX 1002 and CAMBOX. Conversion of the bench from one configuration to another takes about 10 - 15 minutes ... -
Page 5: Buttons And Connectors
Buttons and connectors. ① Emergency stop. ② The bench on/off. ③ Internal bench lightning. ④ USB connector for STARDEX 030x or STARDEX 100x... - Page 6 ① N ② Ground ③ L1 ④ L2 ⑤ L3...
- Page 7 Low pressure lines. ① Pressure regulator for the line ② ② Fuel supply from the feed pump ③ Return flow into the tank ④ Return flow into the tank through the regulator ⑤ ⑤ Return flow pressure regulator Unused lines must be closed by special plugs!
- Page 8 The test bench service procedures. It is important to monitor the condition of the test fluid in the tank of the bench and if necessary replace the filter elements in a timely manner. Sludge storage tank should be drained as required. For this purpose, it is necessary to remove, drain and set it in its place.
- Page 9 ③ Tank filler cap with ventilation valve ④ Sludge storage tank...
- Page 10 Additional menus for speed control and direction of rotation of the motor will automatically appear in the program interface of STARDEX 030x or STARDEX 100х. Turning on and off the feed pump is also performed with these devices. Pressure control of the feed pump and pressure in the return flow is performed by mechanical valves and electronic pressure sensors, mounted on the bench.
- Page 11 Connection pattern for Common Rail injectors test. Connection pattern for UIS test...
-
Page 12: Supply Kit
The manufacturer reserves the right to design modifications, equipment and the warranty period without advance notice. Details of warranty described in the warranty card. MANUFACTURED BY: OY STARDEX LTD PULTTITIE 2 00880 HELSINKI FINLAND +358 (0)44 5523130 info@stardex.fi...
